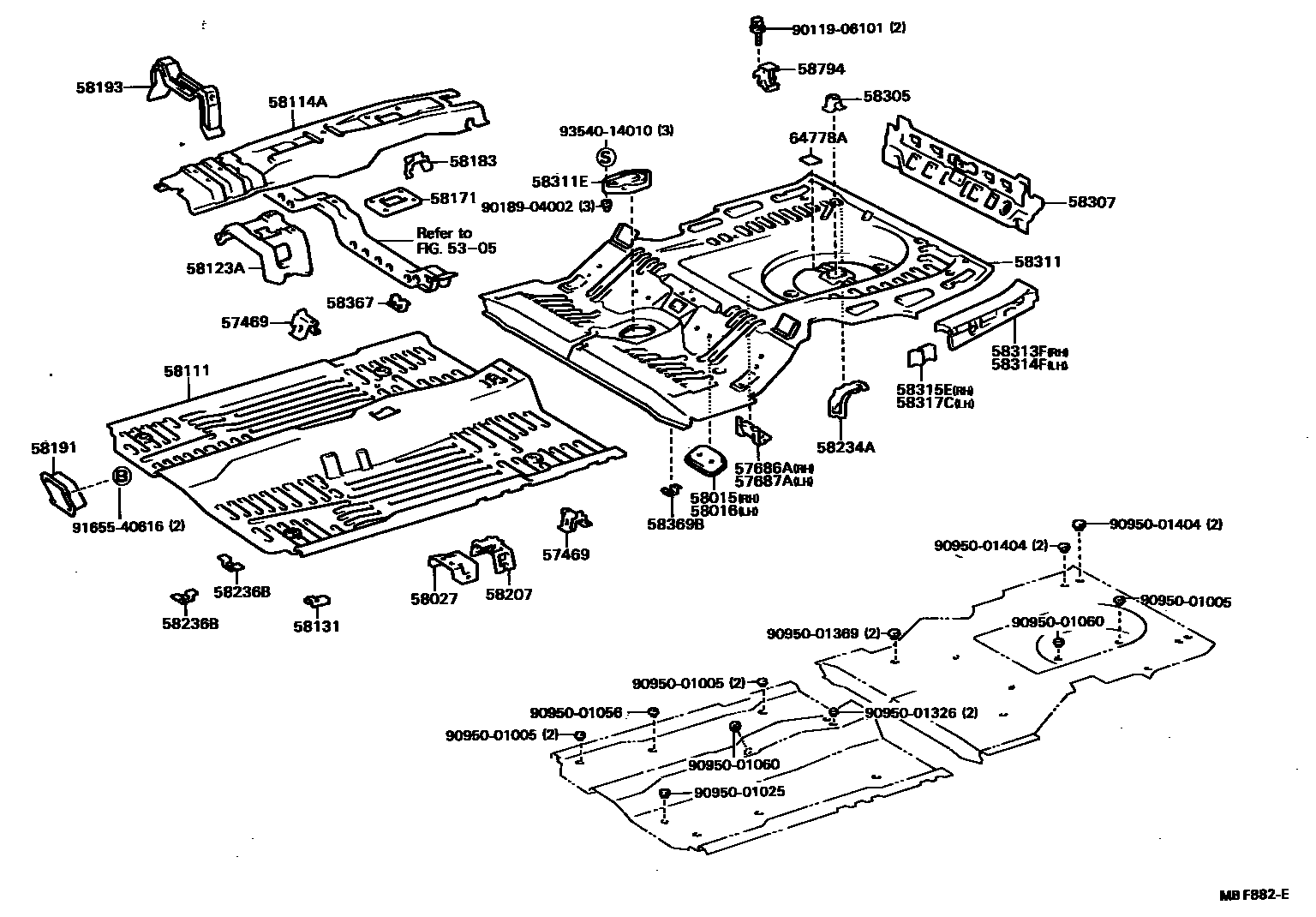

Toyota CORONA — FLOOR PAN & LOWER BACK PANEL
5305FLOOR SIDE MEMBER
57469BRACKET, FRONT SEAT, OUTSIDE
RH
LH
57686ABRACKET, FUEL TANK MOUNTING, REAR RH
57687ABRACKET, FUEL TANK MOUNTING, REAR LH
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58027REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.1
58111PAN, FRONT FLOOR
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
LH
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1
58234ABRACKET, EXHAUST PIPE MOUNTING, INNER
58236BBRACKET, CENTER FLOOR HEAT INSULATOR
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58311ECOVER, REAR FLOOR SERVICE HOLE
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58317CEXTENSION, REAR FLOOR SIDE PANEL, REAR LH
58367BRACKET, FUEL TUBE CLAMP
58369BBRACKET, FUEL TUBE, NO.3
58794CARRIER, JACK
64778APROTECTOR, SPARE WHEEL
9011906101
main90119-06101
9018904002
main90189-04002
9095001005
main90950-01005
9095001025
main90950-01025
9095001056
main90950-01056
9095001060
main90950-01060
9095001326
main90950-01326
9095001369
main90950-01369
9095001404
main90950-01404
9165540616
main91655-40616
9354014010
main93540-14010
41 parts on this diagram · 3 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota CORONA
This section contains 50 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CORONA. Key components include: FLOOR SIDE MEMBER, BRACKET, FRONT SEAT, OUTSIDE, STAY, REAR FLOOR SIDE MEMBER, RH, STAY, REAR FLOOR SIDE MEMBER, LH, BRACKET, REAR SEATBACK HINGE MOUNTING.
