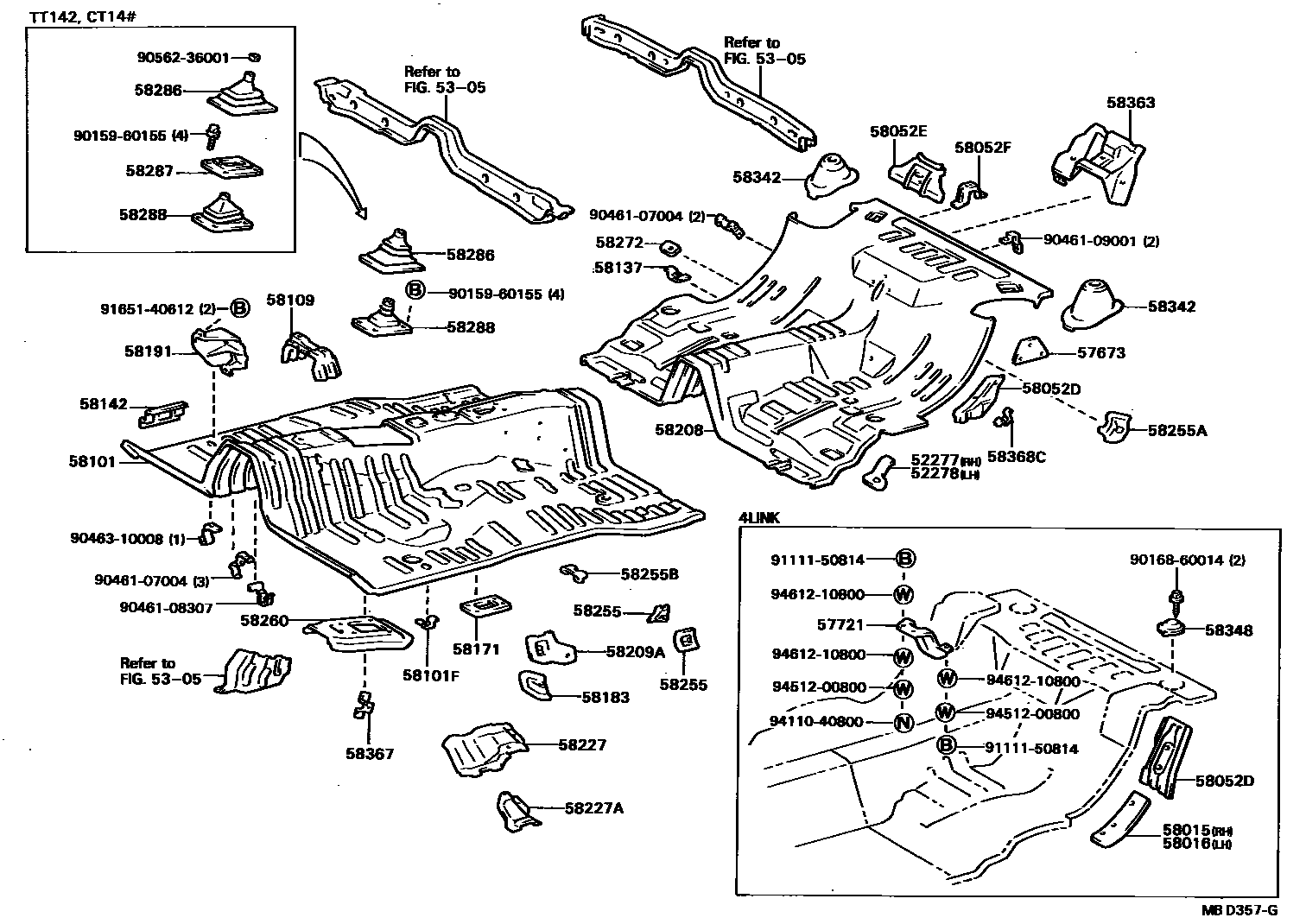

Toyota CORONA — FLOOR PAN & LOWER BACK PANEL
52277RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH
52278RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH
5305FLOOR SIDE MEMBER
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57721PROTECTOR, LOWER CONTROL LINK
RH
LH
58015REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH
58016REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH
58052DEXTENSION, CENTER FLOOR TO PACKAGE TRAY
RH
RH
RH
RH
LH
LH
LH
LH
58052EEXTENSION, CENTER FLOOR TO BRACE
58052FPLATE, LUGGAGE HOLD BELT ANCHOR
58101PAN SUB-ASSY, FRONT FLOOR
58101FBRACKET, MOUNTING, FLOOR, NO.1
58109BRACKET SUB-ASSY, INSTRUMENT PANEL BRACE MOUNTING
58137BRACKET, CENTER FLOOR HEAT INSULATOR, NO.4
58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
RH
RH
LH
LH
58191FOOTREST, FRONT FLOOR
58208PAN, CENTER FLOOR
58209AREINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT
RH
RH
LH
58227PLATE, AIR GUIDE, OUTSIDE
RH
LH
58227APLATE, AIR GUIDE
RH
LH
58255CLAMP, PARKING BRAKE CABLE, NO.1
RH
LH
RH
RH
LH
LH
58255ACLAMP, PARKING BRAKE CABLE, NO.2
RH
LH
RH
LH
58255BBRACKET, PARKING BRAKE CABLE GUIDE, NO.1
58260COVER ASSY, TRANSMISSION, FRONT
58272REINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58286BOOT, SHIFT & SELECT LEVER, NO.1
58287RETAINER, SHIFT LEVER BOOT
58288SEAL, SHIFT LEVER BOOT
58342BRACKET, REAR ABSORBER MOUNTING
RH
LH
58348COVER, REAR ABSORBER SERVICE HOLE
58363BRACKET SUB-ASSY, DIFF CARRIER BUMPER
58367BRACKET, FUEL TUBE CLAMP
58368CBRACKET, FUEL TUBE, NO.3
9015960155
main90159-60155
9016860014
main90168-60014
9046107004
main90461-07004
9046108307
main90461-08307
9046109001
main90461-09001
9046310008
main90463-10008
9056236001
main90562-36001
9111150814
main91111-50814
9165140612
main91651-40612
9411040800
main94110-40800
9451200800
main94512-00800
9461210800
main94612-10800
47 parts on this diagram · 5 diagrams in section
FLOOR PAN & LOWER BACK PANEL for Toyota CORONA
This section contains 97 genuine Toyota parts for the FLOOR PAN & LOWER BACK PANEL system of the Toyota CORONA. Key components include: RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, RH, RETAINER, REAR SUSPENSION MEMBER LOWER STOPPER, LH, FLOOR SIDE MEMBER, BRACKET, REAR SEATBACK HINGE MOUNTING, PROTECTOR, LOWER CONTROL LINK.
