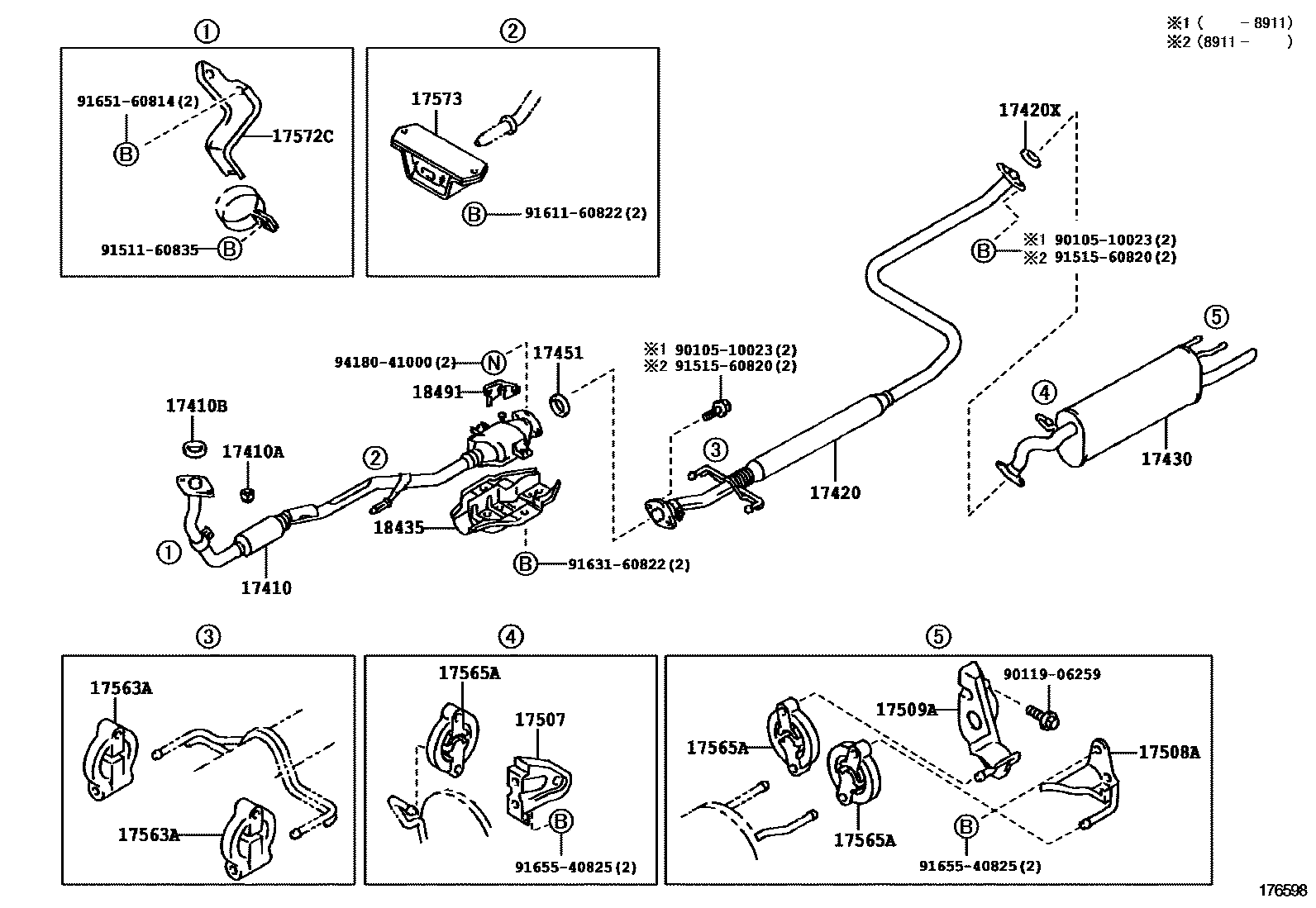

Toyota CORONA — EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-11340i3E..ET176198712-198911

main17410-11380i3E..ET176198911-199211

main17410-15250i5AF#..AT170198712-199202

main17410-16620i4AFE..AT175..5F198808-199202

main17410-16650i4AFE..AT175..4FC198808-199202

main17410-64300i2C..CT170198712-198911

sub17410-64301

main17410-64301i2C..CT170198911-199104

sub17410-64302

main17410-64302i2C..CT170199104-199202

main17410-64320i2C..CT176198712-198911

sub17410-64321

main17410-64321i2C..CT176198911-199104

sub17410-64322

main17410-64322i2C..CT176199104-199211

main17410-74410i4SF#..ST170198712-199202

main17410-74420i3SFE..ST171198712-199202

main17410-74430i3SGE..ST171198712-198911

main17410-74680i3SGE..ST171198911-199202

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i4AFE,5AF#,2C,3E,4SF#..AT17#,CT17#,ET176,ST170198712-199211

17410BGASKET, EXHAUST PIPE

main90917-06004i4AFE,5AF,2C,3E..AT17#,CT17#,ET176198712-198911

sub90917-06039

main90917-06005i3SFE..ST171198712-198911

sub90917-06042

main90917-06012i4SFI..ST170198712-198911

sub90917-06045

main90917-06039i4AFE,5AFE,2C,3E..AT17#,CT17#,ET176198911-199211

main90917-06042i3SFE..ST171198911-199202

main90917-06045i4SFE..ST170199104-199202

main90917-06047i4SFE..ST170198911-199104

sub90917-06045

main90917-06055i3SGE..ST171198911-199202

17420PIPE ASSY, EXHAUST, CENTER

main17420-11100i3E..ET176198712-198911

main17420-11150i3E..ET176198911-199211

main17420-15100i5AF..AT170198712-199004

sub17420-15101

main17420-15120i5AFE..AT170198911-199202

main17420-16300i4AFE..AT175198808-198911

sub17420-16301

main17420-16301i4AFE..AT175198911-199202

main17420-74261i4SFI..ST170198712-198909

sub17420-74262

main17420-74262i4SF#..ST170198909-199202

main17420-74270i3SFE..ST171198712-198911

sub17420-74510

main17420-74280i3SGE..ST171198712-198911

main17420-74500i3SGE..ST171198911-199202

main17420-74510i3SFE..ST171198911-199202

main17420-94700i3SFE..ST171..4FC..EXG199005-199007

SUPER ROOMY

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06004i4AFE,5AF,3E..AT17#,ET176198712-198911

sub90917-06039

main90917-06012i3S#,4SFI..ST17#198712-198911

sub90917-06045

main90917-06039i4AFE,5AFE,3E..AT17#,ET176198911-199211

main90917-06045i3S#,4SFE..ST17#199104-199202

main90917-06047i3S#,4SFE..ST17#198911-199104

sub90917-06045

17430PIPE ASSY, EXHAUST, TAIL

main17430-11280i3E..ET176198712-198911

sub17430-11281

main17430-11460i3E..ET176198911-199211

main17430-15430i5AF..AT170198712-198909

sub17430-15431

main17430-15431i5AF..AT170198909-198911

sub17430-15H00

main17430-15510i5AFE..AT170198911-199202

main17430-16660i4AFE..AT175198808-198911

sub17430-16661

main17430-1A090i4AFE..AT175198911-199202

sub17430-16661

main17430-64470i2C..CT170198712-198911

sub17430-64471

main17430-64471i2C..CT170198911-199202

main17430-64490i2C..CT176198712-198911

sub17430-64491

main17430-64580i2C..CT176198911-199211

main17430-74400i3SFE,4SFI..ST17#..EXG,EXS,G,GX,MX,X,Z198712-198911

sub17430-74401

main17430-74410i3SGE..ST171198712-198909

sub17430-74411

main17430-74411i3SGE..ST171198909-198911

sub17430-74441

main17430-74440i3SFE..ST171..SXR198712-198911

sub17430-74441

main17430-74770i3SFE,4SFE..ST17#..EXG,EXS,G,GX,SELS,X,Z198911-199202

main17430-74780i3SGE..ST171198911-199202

main17430-74790i3SFE..ST171..SXR198911-199202

main17430-94700i3SFE..ST171..4FC..EXG199005-199007

SUPER ROOMY

17451GASKET, EXHAUST PIPE

main90917-06004i4AFE,5AF,2C,4SFI..AT17#,CT17#,ST170198712-198911

sub90917-06039

main90917-06012i3E,3SFE..ET176,ST171198712-198911

sub90917-06045

main90917-06031i3SGE..ST171198712-198911

sub90917-06043

main90917-06032i3SGE..ST171198712-198911

sub90917-06040

main90917-06039i4AFE,5AFE,2C,3E,4SFE..AT17#,CT17#,ET176,ST170198911-199211

main90917-06045i3SFE..ST171199104-199202

main90917-06047i3SFE..ST171198911-199104

sub90917-06045

main90917-06054i3SGE..ST171198911-199202

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-11030i2C,3E..CT176,ET176198712-199211

main17507-64030i2C..CT170198712-199202

main17576-74030i5AF,3S#,4SFI..AT170,ST17#198712-199202

main17576-74030i5AFE,3S#,4SFE..AT170,ST17#199008-199202

17508ABRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT

main17508-11030i2C,3E..CT176,ET176..3FC,4F,5F198712-199211

main17508-64030i2C..CT176..4FC199008-199211

main17508-74020i4AFE..AT175198808-199202

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-11030i2C,3E..CT176,ET176198712-199211

main17509-63060i5AF#,2C,3S#,4SF#..AT170,CT170,ST17#198712-199202

main17509-64010i2C..CT176..4FC199008-199211

main17509-74040i4AFE..AT175198808-199202

17563ASUPPORT, EXHAUST PIPE, NO.3

main17563-64050i2C..CT176198712-199211

main17565-11100i2C..CT170198712-199202

main17565-15050i2C..CT176198712-198905

main17565-15070i2C..CT170198905-199202

main17565-15070i5AF#,3E,3S#,4SF#..AT170,ET176,ST17#198905-199211

main17565-15070i2C..CT176198911-199211

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-11100i4AFE..AT175198808-199202

main17565-63020i5AFE,2C,3S#,4SFE..AT170,CT170,ST17#198712-199202

main17565-63030i5AF#,2C,3S#,4SF#..AT170,CT170,ST17#198712-199202

main17565-63030i2C,3E..CT176,ET176198712-199211

main17565-63120i4AFE..AT175198808-199202

17572CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-11110i3E..ET176198712-198911

main17571-64160i2C..CT17#198712-199211

main17571-74120i3SGE..ST171198712-198911

17573BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER

main17573-74020i4AFE,5AF#,3E,3S#,4SF#..AT17#,ET176,ST17#198712-199211

18435PROTECTOR, CATALYTIC CONVERTER

main18407-11010i3E..ET176198712-198911

18491FLANGE, THERMOSENSOR INLET

main18491-63010i3SGE..ST171198712-199202

main18491-72010i3E..ET176198712-198911

9010510023

main90105-10023

9011906259

main90119-06259

9151160835

main91511-60835

9151560820

main91515-60820

9161160822

main91611-60822

9163160822

main91631-60822

9165160814

main91651-60814

9165540825

main91655-40825

9418041000

main94180-41000

25 parts on this diagram · 7 diagrams in section
