Toyota CORONA — ENGINE OVERHAUL GASKET KIT

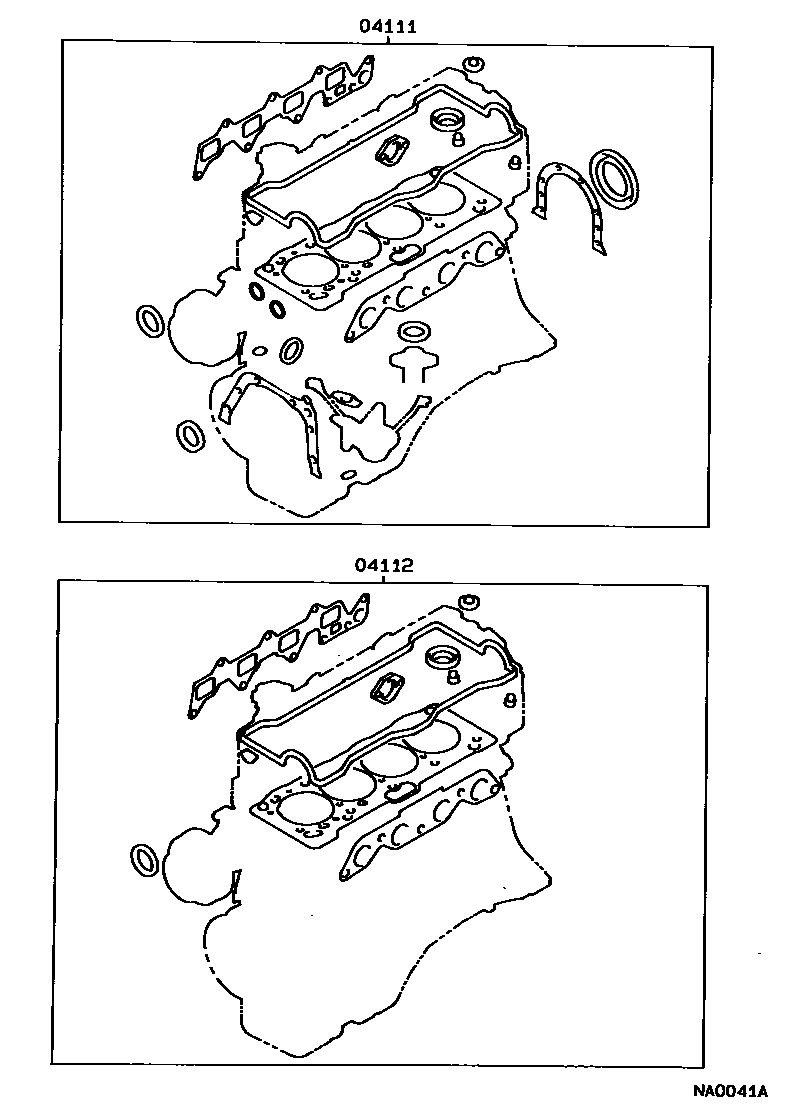

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-11051i198712-199001
sub04111-11052
main04111-11052i199001-199010
sub04111-11053
main04111-11053i199010-199104
sub04111-11054
main04111-11054i199104-199211
main04111-15080i198712-198905
sub04111-15081
main04111-15081i198905-198911
sub04111-15082
main04111-15100i198911-199001
sub04111-15101
main04111-15101i199001-199202
sub04111-15102
main04111-16151i198808-198809
sub04111-16152
main04111-16152i198809-199001
sub04111-16153
main04111-16153i199001-199107
sub04111-16154
main04111-16154i199107-199202
sub04111-16155
main04111-64072i198712-198903
sub04111-64073
main04111-64073i198903-198906
sub04111-64075
main04111-64074i198906-198912
sub04111-64076
main04111-64076i198912-199005
sub04111-64161
main04111-64077i199005-199009
sub04111-64162
main04111-64078i199009-199101
sub04111-64163
main04111-64163i199101-199211
sub04111-64166
main04111-74033i198712-198910
*54
sub04111-74034
main04111-74034i198910-198911
*54
main04111-74042i198712-198910
*53
sub04111-74043
main04111-74043i198910-198911
*53
main04111-74051i198712-198907
sub04111-74052
main04111-74090i198712-198808
sub04111-74091
main04111-74091i198808-198910
sub04111-74092
main04111-74092i198910-199006
sub04111-74H00
main04111-74160i198911-199202
main04111-74180i198911-199009
sub04111-74181
main04111-74181i199009-199202
main04111-74190i198907-199009
sub04111-74191
main04111-74191i199009-199202
04112GASKET KIT, ENGINE VALVE GRIND
main04112-11040i198712-199001
sub04112-11041
main04112-11041i199001-199010
sub04112-11042
main04112-11042i199010-199104
sub04112-11043
main04112-11043i199104-199211
main04112-15091i198712-198905
sub04112-15092
main04112-15092i198905-198911
sub04112-15093
main04112-15102i198911-199001
sub04112-15103
main04112-15103i199001-199107
sub04112-15104
main04112-15104i199107-199201
sub04112-15105
main04112-15105i199201-199202
main04112-16151i198808-198809
sub04112-16152
main04112-16152i198809-199001
sub04112-16153
main04112-16153i199001-199107
sub04112-16154
main04112-16154i199107-199202
main04112-64071i198712-198903
sub04112-64073
main04112-64073i198903-198906
sub04112-64101
main04112-64074i198906-199009
sub04112-64102
main04112-64077i199009-199101
sub04112-64105
main04112-64105i199101-199211
sub04112-64108
main04112-74032i198712-198910
*54
sub04112-74033
main04112-74033i198910-198911
*54
main04112-74041i198712-198910
*53
sub04112-74042
main04112-74042i198910-198911
*53
main04112-74050i198712-198907
sub04112-74051
main04112-74090i198712-198808
sub04112-74091
main04112-74091i198808-198910
sub04112-74092
main04112-74092i198910-199006
sub04112-74H00
main04112-74160i198911-199202
main04112-74180i198911-199104
sub04112-74181
main04112-74181i199104-199202
main04112-74190i198907-199202

2 parts on this diagram · 8 diagrams in section
