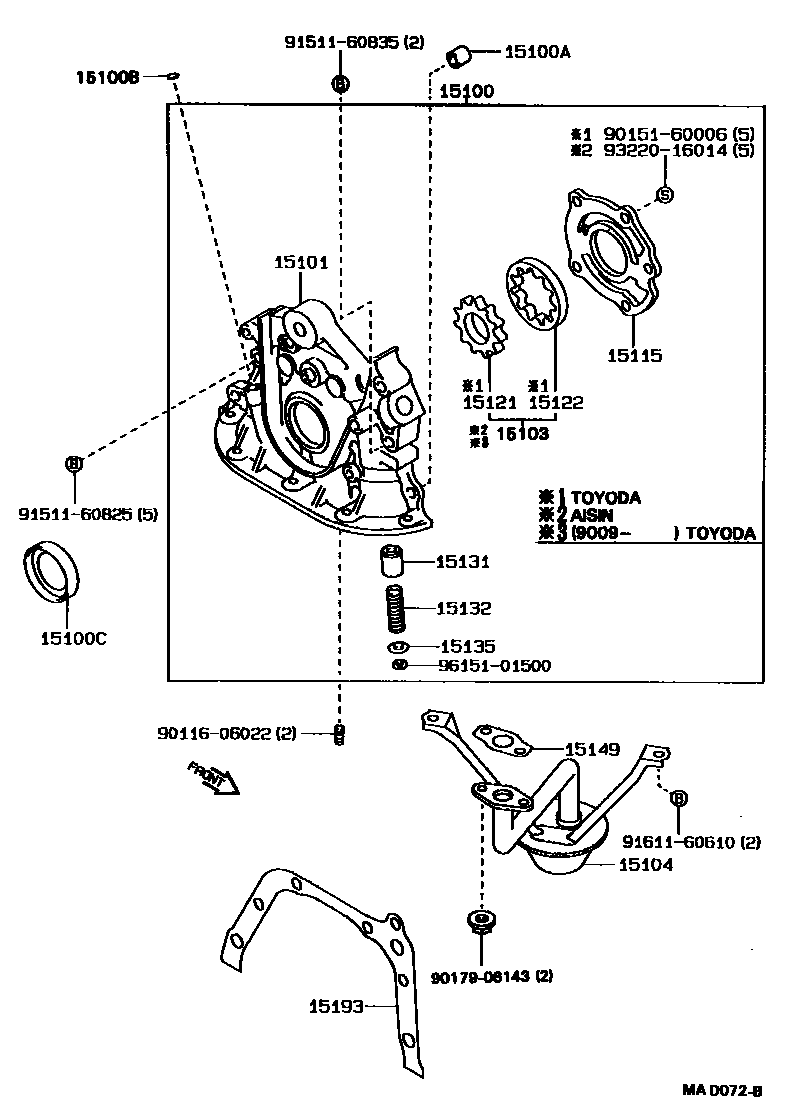

Toyota CORONA — ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

15100PUMP ASSY, OIL

main15100-11021i3E..ET176198712-199211

main15100-15050i4AFE,5AF#..AT17#198712-199202

main15100-64020i2C..CT17#198712-198808

sub15100-64021

main15100-64021i2C..CT17#198808-198905

sub15100-64040

main15100-64040i2C..CT17#198905-199211

sub15100-64041

sub90119-08B81

main15100-74010i3SFE,4SF#..ST17#198712-199202

sub15100-74060

sub15197-74040

main15100-88360i3SGE..ST171198712-199202

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001i3E..ET176198712-199211

main90253-11021i2C..CT17#198712-199211

15100BRING, O(FOR OIL PUMP)

main15188-63010i3S#,4SF#..ST17#198712-199202

main90301-62006i3E..ET176198911-199211

main96711-19010i4AFE,5AF#..AT17#198712-199105

main96721-19010i4AFE,5AFE..AT17#199105-199202

main96721-24063i3E..ET176198712-198911

15100CSEAL(FOR OIL PUMP)

main15165-70010i3S#,4SF#..ST17#198712-199202

main90029-21007i3E..ET176198712-199211

sub90029-21020

main90029-21014i2C..CT17#198905-199008

sub90029-21022

main90029-21022i2C..CT176199008-199211

sub04151-64010

sub04151-64020

main90311-32001i4AFE,5AF..AT17#198712-198911

sub90311-32018

main90311-32018i4AFE,5AFE..AT17#198911-199202

sub90311-32020

15101BODY SUB-ASSY, OIL PUMP

main15011-15050i4AFE,5AF#..AT17#198712-199202

main15101-15040i4AFE,5AFE..AT17#198911-199202

TOYODA KOUKI

main15101-15040i4AFE,5AF..AT17#198712-198911

main15101-64011i2C..CT17#198712-198808

sub15100-64030

sub15100-64040

main15101-64012i2C..CT17#198808-198905

sub15100-64030

sub15100-64040

main15101-64030i2C..CT17#198905-199211

sub15100-64031

sub15100-64042

sub90119-08B81

15103GEAR SET, OIL PUMP

main15103-15020i4AFE,5AF#..AT17#198712-199202

main15103-15020i4AFE,5AFE..AT17#198911-199202

main15103-15H00i4AFE,5AFE..AT17#199009-199202

TOYODA KOUKI

15104STRAINER SUB-ASSY, OIL

main15104-11030i3E..ET176198712-198801

sub15104-11040

main15104-11040i3E..ET176198801-199211

main15104-15080i4AFE,5AF#..AT17#198712-199201

sub15104-15090

main15104-15090i4AFE,5AFE..AT17#199201-199202

main15104-64021i2C..CT17#198712-199112

sub15104-64060

main15104-64060i2C..CT17#199112-199206

sub15104-64070

main15104-64070i2C..CT176199209-199211

main15104-88360i3SFE,4SF#..ST17#198712-198912

main15104-88361i3SGE..ST171198712-198903

sub15104-88380

main15104-88380i3SGE..ST171198903-199202

15115COVER, OIL PUMP

main15115-15020i4AFE,5AF#..AT17#198712-199202

main15115-15030i4AFE,5AF#..AT17#198712-199202

TOYODA KOUKI

sub15115-16060

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AFE,5AF#..AT17#198712-199202

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AFE,5AF#..AT17#198712-199202

15131VALVE, OIL PUMP RELIEF

main15131-15030i4AFE,5AF#..AT17#198712-199202

TOYODA KOUKI

main15131-24010i4AFE,5AF#..AT17#198712-199202

main15131-64020i2C..CT17#198712-199211

15132SPRING, OIL PUMP RELIEF VALVE

main15132-15030i4AFE,5AF#..AT17#198712-199202

TOYODA KOUKI

main15132-40010i4AFE,5AF#..AT17#198712-199202

main15132-64012i2C..CT17#198808-199211

main15132-76011i2C..CT17#198712-198808

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i4AFE,5AF#..AT17#198712-199202

main15135-15030i4AFE,5AF#..AT17#198712-199202

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-15010i4AFE,5AF..AT17#198712-198912

sub15149-15011

main15149-15011i4AFE,5AFE..AT17#198912-199202

sub15149-16010

15193GASKET, OIL PUMP

main15193-64021i2C..CT17#198712-199211

sub15193-64022

main15197-15011i4AFE,5AF..AT17#198712-198912

sub15197-15012

main15197-15012i4AFE,5AFE..AT17#198912-199202

sub15197-15030

main15197-63020i3S#,4SFI..ST17#198712-198907

sub15197-63021

main15197-63021i3S#,4SF#..ST17#198907-199202

9011606022

main90116-06022

9015160006

main90151-60006

9017906143

main90179-06143

9151160825

main91511-60825

9151160835

main91511-60835

9161160610

main91611-60610

9322016014

main93220-16014

9615101500

main96151-01500

23 parts on this diagram · 5 diagrams in section
