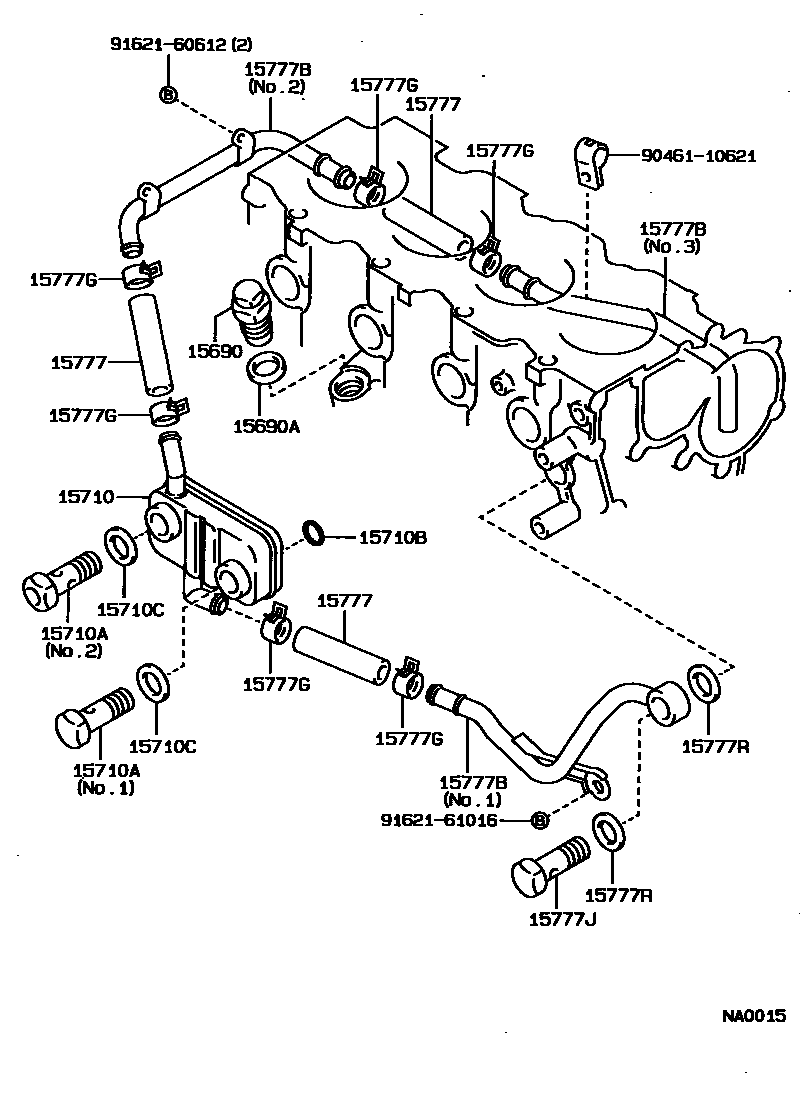

Toyota CORONA — ENGINE OIL COOLER

0001 1 0002 1

15690VALVE ASSY, OIL COOLER RELIEF

main15690-64010i2C..CT17#198712-199211

sub15690-64011

main15690-88360i3SGE..ST171..5F198911-199202

15690AGASKET(FOR OIL COOLER RELIEF VALVE)

main90430-22003i2C..CT17#198712-199211

15710COOLER ASSY, OIL

main15700-88360i3SGE..ST171..5F198911-199202

main15710-64010i2C..CT17#198712-199211

15710ABOLT, UNION(FOR OIL COOLER)

main90401-18009i2C..CT17#198712-199211

main90401-18011i2C..CT17#198712-199211

15710BRING, O(FOR OIL COOLER)

main90301-22002i2C..CT17#198712-198801

main90301-22004i2C..CT17#198801-199211

main90301-52002i3SGE..ST171..5F198911-199202

sub90301-52006

15710CGASKET(FOR OIL COOLER)

main90430-18012i2C..CT17#198712-198811

main90430-18021i2C..CT17#198811-199211

15777HOSE, OIL COOLER

main90445-21006i2C..CT17#198712-199211

15777BPIPE, OIL COOLER

main15767-64010i2C..CT17#198712-199106

sub15767-64011

main15767-64011i2C..CT17#199106-199211

main15768-64031i2C..CT17#198712-199003

sub15768-64070

main15768-64070i2C..CT17#199003-199106

sub15768-64071

main15768-64071i2C..CT17#199106-199211

main15769-64010i2C..CT17#198712-199106

sub15769-64011

main15769-64011i2C..CT17#199106-199211

15777GCLAMP OR CRIP, HOSE

main90467-20005i2C..CT17#198712-199211

sub96134-41900

15777JBOLT, UNION(FOR OIL COOLER PIPE)

main90401-20004i2C..CT17#198712-199211

15777RGASKET(FOR OIL COOLER PIPE UNION BOLT)

main90430-20004i2C..CT17#198712-199211

9046110621

main90461-10621

9162160612

main91621-60612

9162161016

main91621-61016

14 parts on this diagram · 2 diagrams in section
