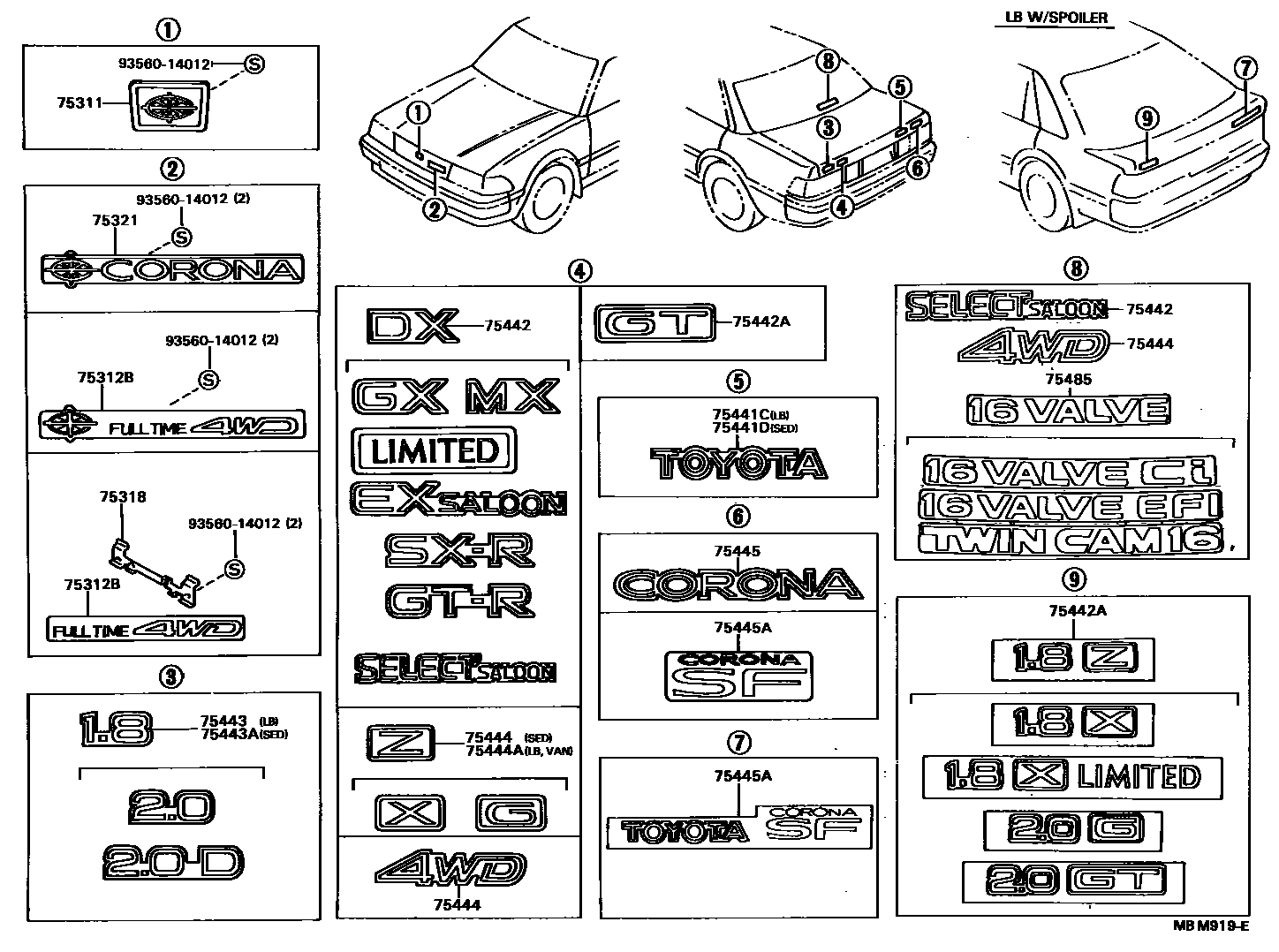

Toyota CORONA — EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1 0003 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-20310iAT17#,CT170,ST170..GX198906-198911

main75311-20310iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main75311-20350iAT17#,CT170,ST17#198911-199202

75312BEMBLEM, RADIATOR GRILLE, NO.2

main75312-20110iAT175..GX198808-198911

main75312-20120iAT175..MX198808-198911

main75312-20120iAT175..GX198906-198911

main75312-20140iAT175198911-199202

75318RETAINER, RADIATOR GRILLE EMBLEM

main75318-20040iAT175..MX198808-198911

main75318-20040iAT175..GX198906-198911

main75318-20060iAT175198911-199202

75321PLATE, RADIATOR GRILLE OR FRONT PANEL NAME

main75321-20570iAT170,CT17#,ET176,ST170..DX,GX,STD198712-199211

75441CPLATE, BACK DOOR NAME

main75441-20340iST17#..LB198712-199202

sub75441-20270

main75441-95501iCT176,ET176198712-199211

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-20270iAT17#,CT170,ST17#..SED198712-199202

main75441-94700iST171..4FC..EXG199005-199007

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75350-20030iAT175..MX198808-199211

sub75350-12010

main75442-20390iAT17#,CT170,ST170..GX198712-199202

main75442-20400iAT17#,CT170,ST170..MX198712-198911

main75442-20410iAT17#,CT170,ST17#..EXG,EXS198712-199202

sub75442-20790

main75442-20420iAT170..DX198712-199202

main75442-20430iST171..SXR198712-199202

main75442-20440iST171..GTR198712-199202

main75442-20490iAT175..SELS198911-199202

main75442-20490iAT175..GX198812-198906

main75442-20490iAT17#,CT170,ST170..GX198906-198911

main75442-20490iAT17#,CT170,ST170..SELS199005-199211

main75442-20760iAT17#,CT170,ST170..GX199106-199202

main75442-94700iST171..4FC..EXG199005-199007

75442APLATE, BACK DOOR NAME, NO.2

main75442-20480iST171..GT198712-199202

main75442-20490iAT175..SELS199005-199202

main75442-20490iAT170,CT170,ST170..SELS198911-199202

main75442-20490iAT170,CT170,ST170..GX198810-198911

main75442-20520-03iST170..Z..CI198810-199202

sub75442-20520

main75442-20520-03iST170..Z..CI198810-199202

sub75442-20520

main75442-20520-03iST170..Z198801-198810

sub75442-20520

main75442-20520-13iST170..Z..EFI198810-199202

sub75442-20520

main75442-20520-13iST170..Z198801-198810

sub75442-20520

main75442-20520-13iST170..Z..CI198810-199202

sub75442-20520

main75442-20530-03iST170..X..CI198810-199202

sub75442-20530

main75442-20530-03iST170..X198801-198810

sub75442-20530

main75442-20530-03iST170..X..CI198810-199202

sub75442-20530

main75442-20530-13iST170..X..CI198810-199202

sub75442-20530

main75442-20530-13iST170..X..EFI198810-199202

sub75442-20530

main75442-20530-13iST170..X198801-198810

sub75442-20530

main75442-20540-03iST171..G198911-199202

sub75442-20540

main75442-20540-03iST171..G198712-198810

sub75442-20540

main75442-20540-03iST171..G198810-198911

sub75442-20540

main75442-20540-13iST171..G198810-198911

sub75442-20540

main75442-20540-13iST171..G198712-198810

sub75442-20540

main75442-20540-13iST171..G198911-199202

sub75442-20540

main75442-20550-03iST171..GT198810-198911

sub75442-20550

main75442-20550-03iST171..GT198712-198810

sub75442-20550

main75442-20550-03iST171..GT198911-199202

sub75442-20550

main75442-20550-13iST171..GT198810-198911

sub75442-20550

main75442-20550-13iST171..GT198712-198810

sub75442-20550

main75442-20550-13iST171..GT198911-199202

sub75442-20550

main75442-20700iST170..X198812-198903

main75442-95500iCT176198712-199211

main75442-95503iCT176198911-199211

75443PLATE, BACK DOOR NAME, NO.3

main75443-20390iST170..LB198712-199202

sub75443-20190

main75443-20400iST171..LB198712-199202

sub75443-20200

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-20190iST170..SED198712-199202

main75443-20200iST171..SED198712-199202

main75443-20210iCT170198712-199202

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-20730iST171..EXG198712-199202

main75444-20850iAT175198808-199202

sub75444-2B400

main75444-20850iAT17#,CT170,ST170..SELS199005-199211

sub75444-2B400

75444APLATE, BACK DOOR NAME, NO.4

main75444-20730iST171..G198712-199202

main75444-20740iST170..X198712-199202

main75444-20750iST170..Z198712-199202

main75444-95501iET176..GX198712-199211

75445PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.5

main75445-20090iAT17#,CT170,ST17#..SED198712-198911

75445APLATE, BACK DOOR NAME, NO.5

main75445-20110iST17#..LB198712-198911

main75445-20140-03iST17#..LB198810-198911

main75445-20140-03iST17#..LB198712-198810

main75445-20140-13iST171..GT198712-198810

main75445-20140-13iST171..GT198712-198810

main75445-20140-13iST171..GT198810-198911

main75445-20140-13iST171..GT198810-198911

main75445-20170iST170..X198812-198903

main75445-20190-03iST17#..LB198911-199202

main75445-20190-13iST17#..LB198911-199202

75485PLATE, BACK WINDOW NAME

main75485-20130iAT170198712-198911

sub75485-20180

main75485-20140iST170198712-198911

main75485-20150iAT17#,ST17#..(DX,EXG,EXS,G,GX,MX,SELS,SXR,X,Z)..EFI198712-199202

sub75485-12310

main75485-20160iST171..GT,GTR198712-199202

sub75485-20390

main75485-20250iST171198712-199202

sub75485-22060

main75485-20260iAT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-198911

sub75485-22050

main75485-20270iST171198712-198911

sub75485-32070

main75485-20401iAT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

sub75485-20190

main75485-20440iST171198911-199202

sub75485-20470

9356014012

main93560-14012

16 parts on this diagram · 3 diagrams in section
