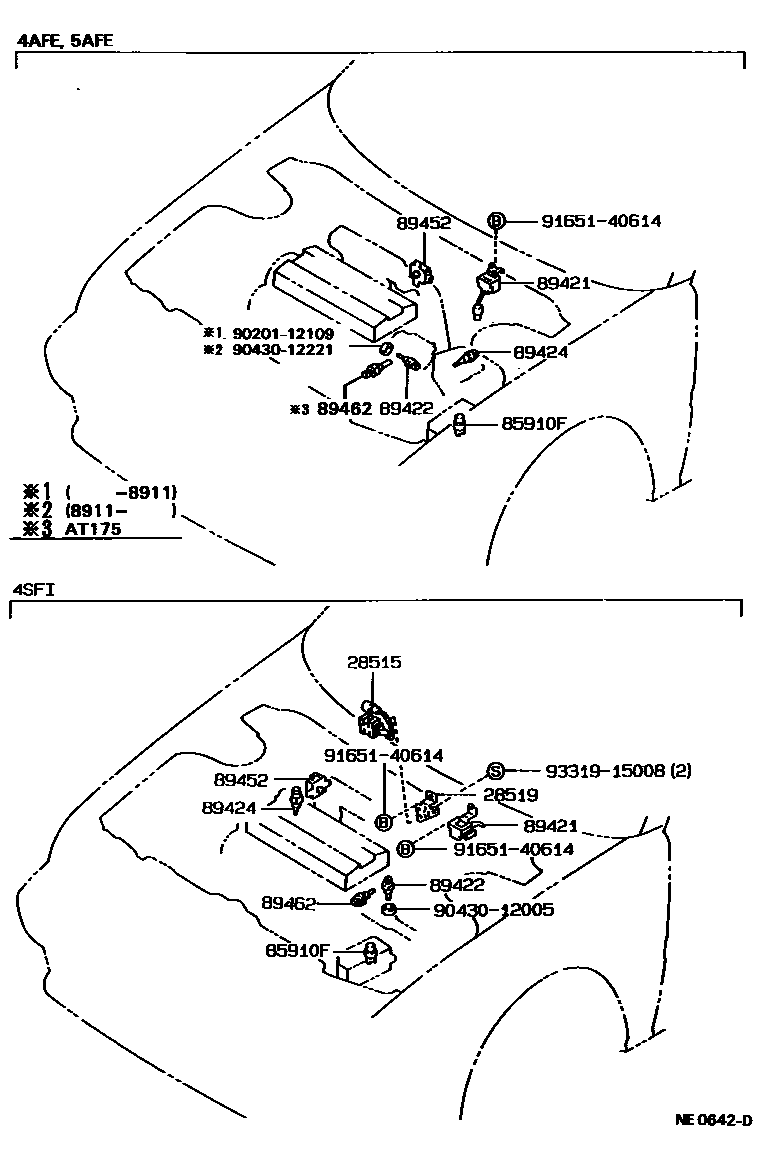

Toyota CORONA — ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0003 1 0005 1

28515RESISTOR, SOLENOID

main28515-74020i4SFI..ST170198712-198911

28519BRACKET, SOLENOID RESISTOR

main28519-74020i4SFI..ST170198712-198911

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iAT17#,ST17#..CI,EFI198712-199202

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-20080iST17#..EXG,EXS,G,GX,MX,SXR,X,Z198712-198911

main89420-20120iAT175198808-198911

main89420-20170iAT17#,ST17#198911-199202

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iAT17#,ST17#..CI,EFI198712-199202

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iAT175198808-199202

main89424-28010iST17#..EXG,EXS,G,GX,MX,SXR,X,Z198712-198911

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12010iAT175198808-199202

main89452-12040iST171198911-199202

main89452-14020iAT170,ST170198911-199202

main89452-20050iST171..GT,GTR198712-198911

main89452-20080iST170198712-198911

main89452-32020iST171..5F..(EXG,G,SXR)198712-198911

main89452-32030iST171..5F..(EXG,G,SXR)198712-198911

sub89452-14040

89462SWITCH, START INJECTOR TIME

main89462-20020iST171198712-198911

main89462-20030iAT175198808-199202

main89462-20040iST170198712-198911

9020112109

main90201-12109

9043012005

main90430-12005

9043012221

main90430-12221

9165140614

main91651-40614

9331915008

main93319-15008

13 parts on this diagram · 3 diagrams in section
