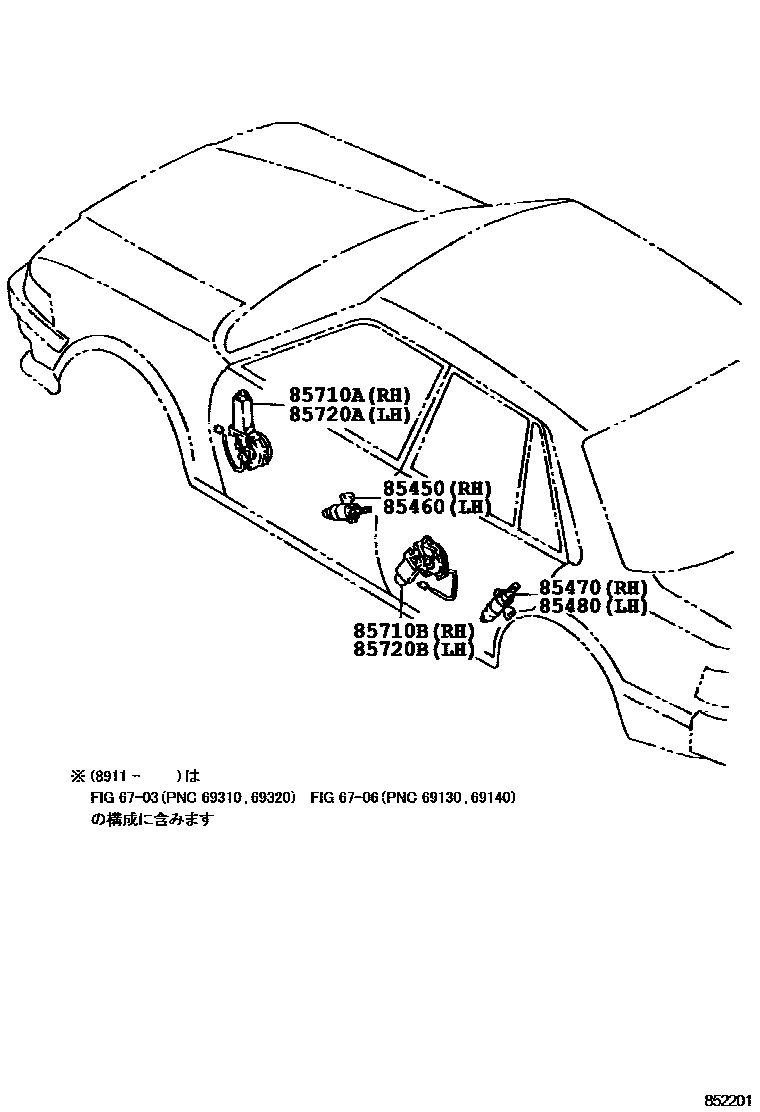

Toyota CORONA — DOOR MOTOR & DOOR SOLENOID

85450SOLENOID ASSY, DOOR CONTROL, FRONT RH

main85450-20060iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main85450-20060iAT175,CT170..GX198906-199211

85460SOLENOID ASSY, DOOR CONTROL, FRONT LH

main85450-20210iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

sub85450-20240

main85450-20210iAT175,CT170..GX198906-199211

sub85450-20240

85470SOLENOID ASSY, DOOR CONTROL, REAR RH

main85450-30530iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

sub85450-30610

main85450-30530iAT175,CT170..GX198906-199211

sub85450-30610

85480SOLENOID ASSY, DOOR CONTROL, REAR LH

main85450-30540iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SXR,X,Z198712-198911

main85450-30540iAT175,CT170..GX198906-199211

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-20080iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SELS,SXR,X,Z198712-199202

sub85710-28030

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85720-20120iAT17#,CT170,ET176,ST170..GX198712-198904

sub85720-20121

main85720-20121iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198904-199202

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-20080iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,MX,SELS,SXR,X,Z198712-199202

sub85720-28030

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85710-20100iCT170..5F..EXS;CT170..4FC..(EXS,GX);AT17#,ET176,ST170..EXS,GX198712-198904

sub85710-20101

main85710-20101iAT17#,CT170,ET176,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198904-199202

8 parts on this diagram · 1 diagram in section
