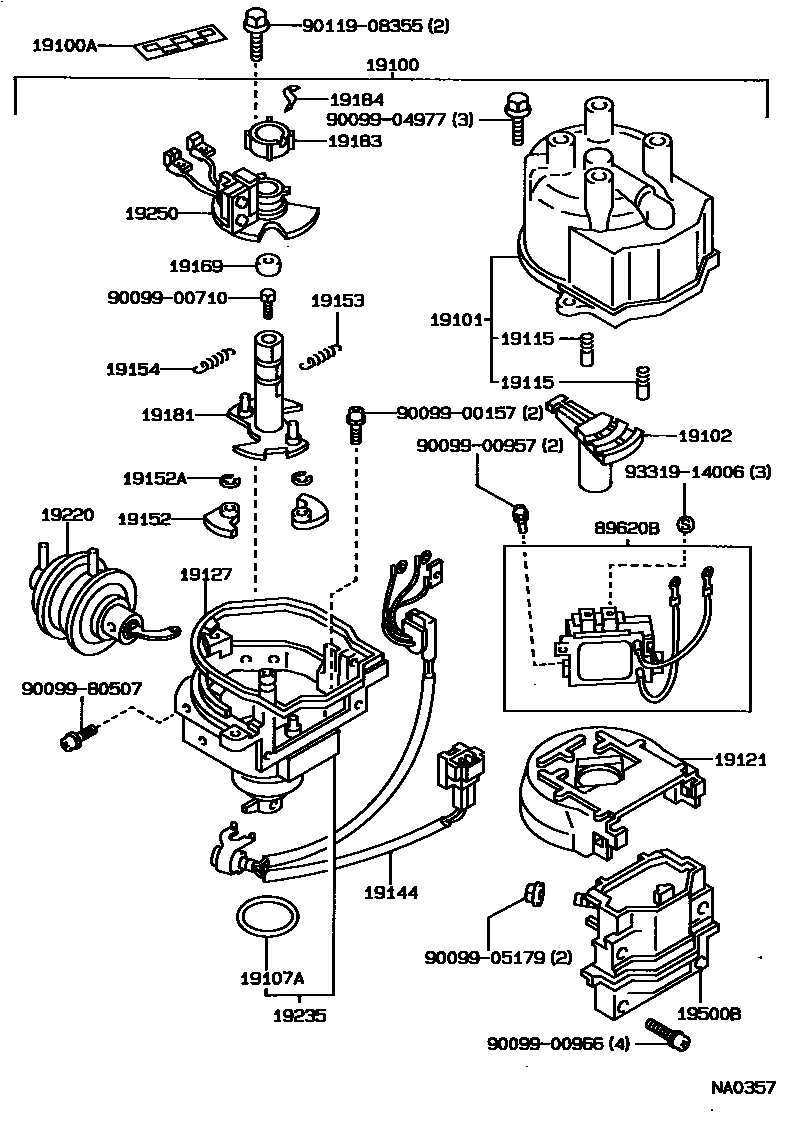

Toyota CORONA — DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

19100DISTRIBUTOR ASSY

main19020-11170i3E..ET176198712-198911

main19020-11230i3E..ET176198911-199109

main19020-11310i3E..ET176199109-199211

main19020-15170i4AFE,5AFE..AT17#198911-199202

sub19020-16190

main19020-16130i5AF..AT170..MTM198712-198911

main19020-16140i5AF..AT170..4FC198712-198911

main19050-16010i4AFE..AT175198808-198911

main19100-74020i3SFE,4SFI..ST17#198712-199202

main19100-74030i4SFE..ST170198911-199004

sub19100-74031

main19100-74031i4SFE..ST170199004-199012

main19100-74032i4SFE..ST170199012-199202

main19100-88361i3SGE..ST171198712-198911

sub19100-88362

main19100-88363i3SGE..ST171198911-199202

19100ATAPE, SEALING

main90919-24004i5AF..AT170..STD198712-199211

sub90919-24003

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11010i3E..ET176198712-199109

main19101-11040i3SFE,4SFI..ST17#198712-199202

main19101-11300i3E..ET176199109-199211

main19101-15120i5AF..AT170198712-198911

main19101-15140i4AFE,5AFE..AT17#198808-199202

main19101-74100i4SFE..ST170198911-199004

sub19101-74130

main19101-74130i4SFE..ST170199004-199012

main19101-74160i4SFE..ST170199012-199202

main19101-88360i3SGE..ST171198712-198911

main19101-88363i3SGE..ST171198911-199202

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11010i3E..ET176198712-198912

main19102-11031i4AFE..AT175198808-199211

sub19102-11370

main19102-63010i3SGE..ST171198712-198911

sub19102-73021

main19102-74040i3SGE..ST171198911-199202

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14020i3SGE..ST171198712-198911

sub90099-14090

main90099-14090i3SGE..ST171199103-199202

main90099-14091i3SFE,4SFE..ST17#198712-199202

main90099-14106i3SGE..ST171198911-199103

sub90099-14090

main96711-35030i4AFE,5AF#..AT17#198712-199211

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-50010i3SFE..ST171198712-199202

main19115-63010i5AF#..AT170..4FC198712-199211

main19115-88280i3SGE,4SFE..ST17#198911-199202

19121COVER, DUST PROOF

main19121-11080i3E..ET176198712-199211

main19121-16040i3SGE..ST171198712-198911

main19121-16150i3SFE,4SFI..ST17#198712-199202

main19121-63040i4AFE..AT175198808-198911

main19121-63040i4AFE,5AFE..AT17#198911-199202

NO.2

main19121-63090i4AFE,5AFE..AT17#198911-199202

NO.1

main19121-74010i4SFE..ST170199012-199202

main19121-74030i4SFE..ST170198911-199012

19127PACKING, DUST PROOF

main19127-15021i3S#,4SFI..ST17#198712-199202

main19127-15120i5AF..AT170198712-199211

main19127-63010i4AFE,5AFE..AT17#198808-199202

main19127-63020i4AFE,5AFE..AT17#198808-199202

main19127-74010i4SFE..ST170199012-199202

main19127-74040i3SGE..ST171198911-199202

main19127-74040i4SFE..ST170199012-199202

19144LEAD, DISTRIBUTOR BREAKER

main19144-11080i3E..ET176198712-199107

main19144-11300i3E..ET176199107-199211

sub19144-11120

main19144-15120i5AF..AT170198712-198911

main19144-15130i4AFE,5AFE..AT17#198911-199202

sub19144-16200

main19144-16170i4AFE..AT175198808-198911

sub19144-74020

19152WEIGHT, GOVERNOR

main19152-15160i5AF..AT170198712-199109

main19152-15160i3E..ET176199109-199211

main19152-63010i3E..ET176199109-199211

19152ARING, SNAP(FOR GOVERNOR WEIGHT)

main90099-07122i5AF..AT170198712-199109

19153SPRING, GOVERNOR, A

main19153-11080i3E..ET176199109-199211

main19153-11080i3E..ET176198712-199109

main19153-16250i5AF..AT170198712-198911

main19153-72060i3E..ET176199109-199211

19154SPRING, GOVERNOR, B

main19154-11080i3E..ET176198712-199211

main19154-16250i5AF..AT170198712-198911

19169STOPPER, CAM GREASE

main19169-63011i5AF..AT170198712-199211

19181ROTOR, DISTRIBUTOR, SIGNAL

main19181-11170i3E..ET176198712-198805

sub19181-11172

main19181-11172i3E..ET176198805-198911

sub19181-11290

main19181-11230i3E..ET176198911-199109

sub19181-11066

main19181-11230i3E..ET176199109-199211

sub19181-11066

main19181-16230i5AF..AT170..MTM198712-198911

sub19181-16240

main19181-16240i5AF..AT170..4FC198712-198911

main19181-72011i3E..ET176199109-199211

19183ROTOR, SIGNAL

main19183-15010i5AF..AT170198712-199211

19184SPRING, ROTOR SET

main19184-63010i5AF..AT170198712-199211

19220ADVANCER ASSY, VACUUM, DISTRIBUTOR

main19220-11080i3E..ET176198712-198911

main19220-11230i3E..ET176198911-199211

main19220-16270i5AF..AT170..MTM198712-198911

main19220-16280i5AF..AT170..4FC198712-198911

19235HOUSING, DISTRIBUTOR

main19235-11170i3E..ET176198712-199211

main19235-15130i4AFE,5AFE..AT17#198911-199202

main19235-16030i4AFE..AT175198808-198911

main19235-16090i5AF..AT170198712-198911

main19235-74100i4SFE..ST170198911-199004

main19235-74120i3SFE,4SFI..ST17#198712-199202

main19235-74140i4SFE..ST170199004-199012

main19235-74160i4SFE..ST170199012-199202

main19235-88020i3SGE..ST171198712-198911

main19235-88363i3SGE..ST171198911-199202

19250GENERATOR ASSY, SIGNAL

main19251-15091i5AF..AT170198712-198805

sub19251-16100

main19251-16100i5AF..AT170198805-199211

19500BCOIL ASSY, IGNITION

main90919-02139i4AFE,5AFE..AT17#198808-199202

main90919-02164i5AF..AT170198712-199211

89620BIGNITER ASSY

main89620-10090iET176198712-198810

sub89620-12340

main89620-12340iAT170198712-199211

sub89620-10120

main89620-12430iAT17#198911-199202

9009900157

main90099-00157

9009900710

main90099-00710

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

9009980507

main90099-80507

9011908355

main90119-08355

9331914006

main93319-14006

31 parts on this diagram · 8 diagrams in section
