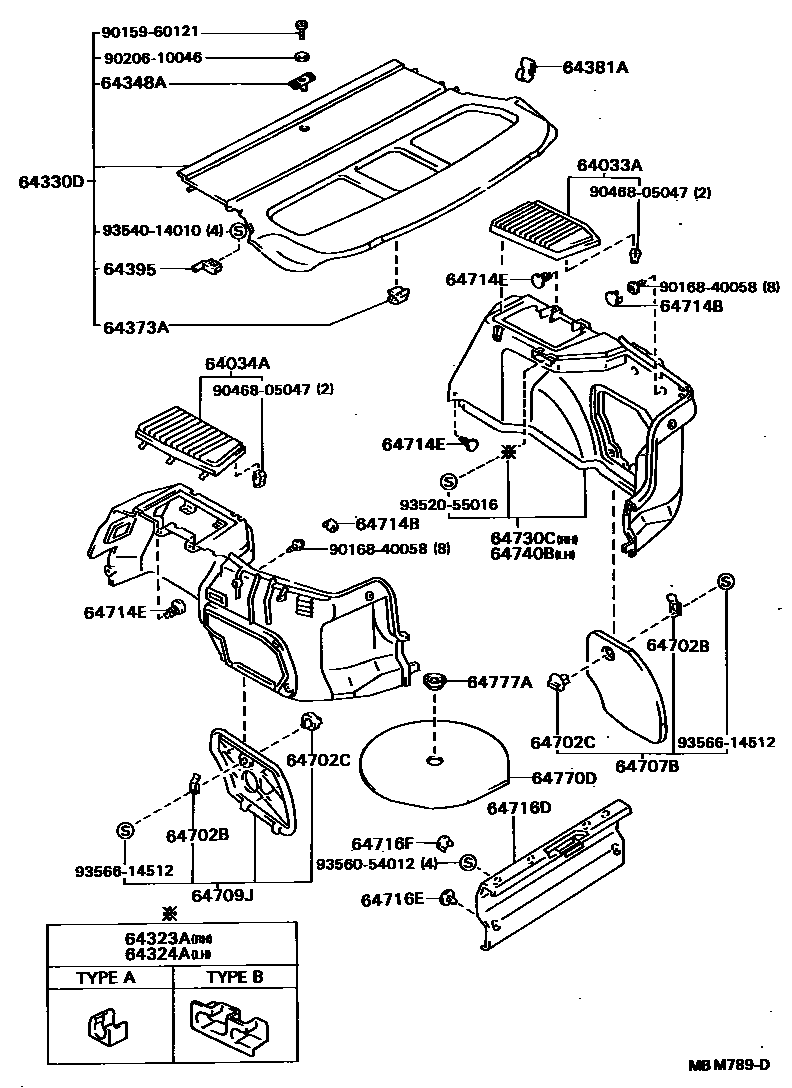

Toyota CORONA — DECK BOARD & DECK TRIM COVER
64033AGRILLE SUB-ASSY, REAR SPEAKER, RH
sub64033-20140
sub64033-20140
sub64033-20140
sub64033-20140
sub64033-20150
sub64033-20150
sub64033-20150
sub64033-20180
sub64033-20180
sub64033-20180
64034AGRILLE SUB-ASSY, REAR SPEAKER, LH
sub64034-20120
sub64034-20120
sub64034-20120
sub64034-20150
sub64034-20150
sub64034-20150
64323ACLAMP, PACKAGE TRAY TRIM, RH
64324ACLAMP, PACKAGE TRAY TRIM, LH
64330DPANEL ASSY, PACKAGE TRAY TRIM
64348AKNOB, PACKAGE TRAY TRIM
64381AHANGER, PACKAGE TRAY TRIM
64395PIN, PACKAGE TRAY TRIM HINGE
64702BSTOPPER, WASHER TANK COVER
64702CKNOB, WASHER TANK COVER
64707BCOVER SUB-ASSY, QUARTER TRIM JACK
64709JCOVER SUB-ASSY, DECK TRIM POCKET
64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)
64716DCOVER, DECK TRIM, REAR
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
64716ECLIP(FOR DECK TRIM REAR COVER)
64716FPLUG, HOLE(FOR DECK TRIM REAR COVER)
64730CBOARD, DECK TRIM SIDE, RH
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
GRAY,TRIM1#
SABLE,TRIM4#
64740BBOARD, DECK TRIM SIDE, LH
GRAY,TRIM1#
SABLE,TRIM4#
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
64770DCOVER ASSY, SPARE WHEEL
64777ACLAMP, SPARE WHEEL COVER
9015960121
main90159-60121
9016840058
main90168-40058
9020610046
main90206-10046
9046805047
main90468-05047
9352055016
main93520-55016
9354014010
main93540-14010
9356054012
main93560-54012
9356614512
main93566-14512
30 parts on this diagram · 2 diagrams in section
