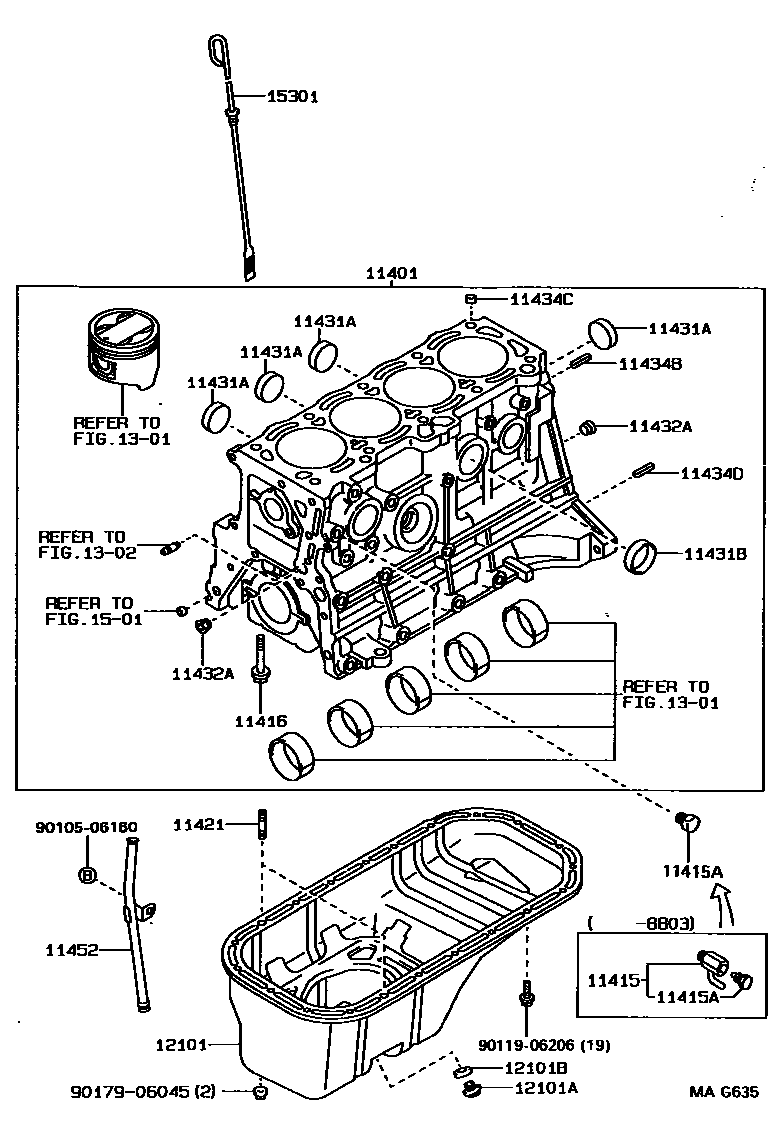

Toyota CORONA — CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-19375i3E..ET176198712-198911

sub11401-19376

main11401-19376i3E..ET176198911-198912

sub11401-19377

main11401-19377i3E..ET176198912-199211

sub11401-19378

main11401-19405i5AF#..AT170198712-199107

sub11401-19495

main11401-19445i4AFE..AT175198808-198911

sub11401-19446

main11401-19446i4AFE..AT175198911-199004

sub11401-19447

main11401-19447i4AFE..AT175199004-199104

sub11401-19448

main11401-19448i4AFE..AT175199104-199202

sub11401-19518

main11401-19495i5AFE..AT170199107-199202

main11401-69315i2C..CT17#..DX,EXS,GX198712-198911

sub11401-69316

sub11115-64122

main11401-69365i2C..CT17#198911-199008

sub11401-69367

sub11115-64122

main11401-69425i2C..CT17#199008-199209

sub11401-69427

sub11115-64122

main11401-69426i2C..CT176199209-199211

sub11401-69428

sub11115-64122

main11401-79179i3SGE..ST171198911-199202

main11401-79187i3SGE..ST171198712-198906

sub11401-79188

sub15707-88362

main11401-79188i3SGE..ST171198906-198911

sub11401-79189

main11401-79295i3SFE..ST171198712-198906

sub11401-79296

sub90915-03001

main11401-79296i3SFE..ST171198906-199005

sub11401-79297

main11401-79297i3SFE..ST171..G,SXR;3SFE..ST171..4FC..EXG199005-199110

sub11401-79298

main11401-79365i4SFI..ST170198712-198911

sub11401-79367

main11401-79366i4SFE..ST170198911-199008

sub11401-79367

main11401-79367i4SFE..ST170199008-199202

main11401-79625i3SFE..ST171199110-199202

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09088i2C..CT17#198712-199211

sub90345-52003

main90910-09091i3SGE..ST171198712-198901

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90341-12012i3E..ET176198712-199102

main90341-12026i3E..ET176199102-199211

sub90341-12012

main90345-52001i3S#,4SFI..ST17#198712-198911

*53

main90345-52001i3SFE,4SFE..ST17#;3SGE..ST171..4FC198911-199202

main90345-52001i3SGE..ST171198901-198911

*54

main90345-52003i4AFE,5AFE..AT17#199005-199202

main90345-52013i4AFE,5AFE..AT17#198803-199005

main90910-09087i2C..CT17#198712-198901

*54

main90910-09087i2C..CT17#198901-199211

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-10007i3E..ET176198712-199211

main90105-10028i3SFE..ST171198712-199202

main90910-02061i2C..CT17#198712-199211

11421BOLT, STUD(FOR OIL PAN)

main90116-06014i3E..ET176198712-198911

*54

main90116-06022i3S#,4SF#..ST17#198712-199202

*53

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i3E..ET176198712-199211

main96411-43500i5AF#..AT170..4FC198712-199211

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43000i3E..ET176198712-199211

main96411-44000i3SGE,4SFE..ST17#198712-199202

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53008i5AF#..AT170..DX198712-199202

main90345-51006i3SFE,4SF#..ST17#198712-199008

11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)

main90250-06068i3E..ET176198911-199211

main90250-10017i3E..ET176198712-199211

main90250-10113i4AFE,5AF#..AT17#198712-199202

main90253-15003i3E..ET176198712-199211

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-13017i4AFE,5AF#..AT17#198712-199202

main90253-14001i2C..CT17#198712-199211

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i4AFE,5AF..AT17#198712-199202

main90250-06003i3S#,4SF#..ST17#198712-199202

main90250-06015i3SGE..ST171198905-198911

main90250-06068i2C..CT17#198712-199211

11452GUIDE, OIL LEVEL GAGE

main11452-10010i3E..ET176198712-199211

main11452-15020i4AFE,5AF#..AT17#198712-199202

main11452-64030i2C..CT17#198712-199211

main11452-74030i3SFE,4SF#..ST17#198712-199202

sub11452-74031

main11452-88360i3SGE..ST171198712-198911

main11452-88361i3SGE..ST171198911-199202

12101PAN SUB-ASSY, OIL

main12101-11010i3E..ET176198712-199211

sub12101-11011

main12101-15070i5AF#..AT170198712-199202

main12101-15100i4AFE..AT175198808-199202

main12101-64040i2C..CT17#198712-199007

sub12101-64110

main12101-64110i2C..CT17#199007-199211

sub12101-64131

main12101-74022i3S#,4SFI..ST17#198712-198908

sub12101-74050

main12101-74050i3S#,4SF#..ST17#198908-199202

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i4AFE,5AF..AT17#198712-199211

main90341-12026i4AFE,5AFE..AT17#198812-199211

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12011i2C..CT17#198712-198803

sub90430-12019

main90430-12019i5AF..AT170198812-198911

*54

sub90430-12028

main90430-12019i5AF..AT170198712-199008

sub90430-12028

main90430-12021i3SFE,4SFE..ST17#198911-198912

sub90430-12028

main90430-12024i3S#,4SFI..ST17#198812-198911

*53

sub90430-12028

main90430-12027i3S#,4SFE..ST17#198912-199211

sub90430-12031

main90430-12028i2C..CT17#199008-199108

sub90430-12031

1301

1302

1501

15301GAGE SUB-ASSY, OIL LEVEL

main15301-11020i3E..ET176198712-198905

sub15301-11021

main15301-11021i3E..ET176198908-199211

main15301-15040i4AFE,5AF..AT17#198712-198810

sub15301-15041

main15301-15041i4AFE,5AF#..AT17#198810-199202

main15301-64010i2C..CT17#198712-198901

sub15301-64040

main15301-64040i2C..CT17#198901-198911

sub15301-64041

main15301-64041i2C..CT17#198911-199205

main15301-64042i2C..CT176199205-199211

main15301-74010i3SFE,4SF#..ST17#198712-199202

main15301-88362i3SGE..ST171198712-198911

main15301-88363i3SGE..ST171198911-199202

9010506160

main90105-06160

9011906206

main90119-06206

9017906045

main90179-06045

22 parts on this diagram · 5 diagrams in section
