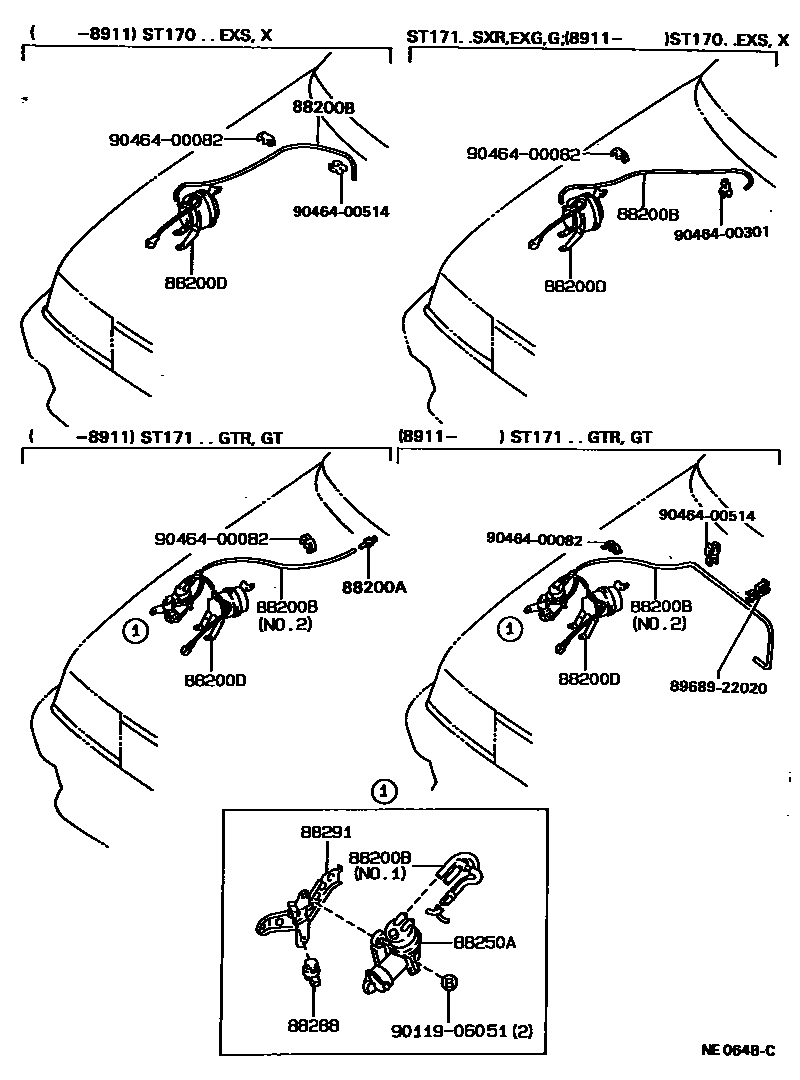

Toyota CORONA — CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iST171..GT,GTR198712-198911

88200BHOSE, CRUISE CONTROL VACUUM

main88283-20060iST171..GT,GTR198712-199202

main90447-08064iST171..GT,GTR198912-199202

sub90447-08133

main90999-92003iST171..GT,GTR198712-198911

main90999-92004iST17#..(EXG,EXS,G,SXR,X)..EFI198712-199202

main90999-92006iST171..GT,GTR198911-198912

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20040iST17#..EXG,EXS,G,SXR,X198712-198801

sub88200-20041

main88200-20041iST17#..EXG,EXS,G,SXR,X198801-199202

main88200-20050iST171..GT,GTR198712-198801

sub88200-20051

main88200-20051iST171..GT,GTR198801-199202

88250APUMP ASSY, CRUISE CONTROL

main88251-20040iST171..GT,GTR198712-198801

sub88251-20041

main88251-20041iST171..GT,GTR198801-199202

88288SWITCH, VACUUM SPEED CONTROL

main88288-22010iST171..GT,GTR198901-199202

main88288-40020iST171..GT,GTR198712-198901

sub88288-22010

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-20040iST171..GT,GTR198712-199202

8968922020CLAMP, WIRELESS DOOR LOCK

main89689-22020

9011906051

main90119-06051

9046400082

main90464-00082

9046400301

main90464-00301

9046400514

main90464-00514

11 parts on this diagram · 2 diagrams in section
