Toyota CORONA — CRANKSHAFT & PISTON

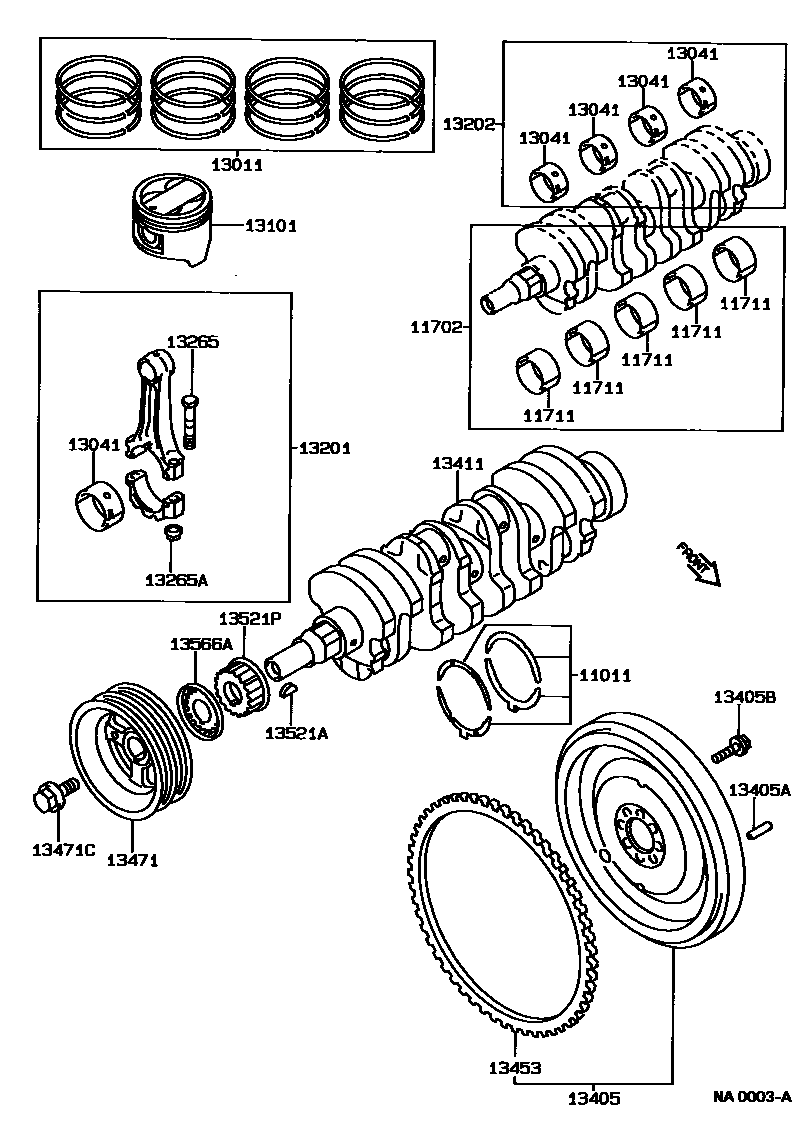

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-11010i198808-199211
main11011-11020i198712-198808
sub11011-11010
main11011-15010i198712-199202
sub11011-15020
main11011-25010i198712-199106
main11011-64010i198712-199211
main11011-74020i199106-199202
sub11011-74030
main11012-11010i198808-199211
main11012-11020i198712-198808
sub11012-11010
main11012-64010i198712-199008
main11013-64010i198712-199008
11702BEARING SET, CRANKSHAFT
main11704-11010i198712-198912
sub11704-11011
main11704-11011i198912-199210
sub11704-11012
main11704-11012i199210-199211
main11704-15050i198712-198808
sub11704-16010
main11704-16010i198808-199202
main11704-63021i198712-199202
sub11704-63022
main11704-64040i199008-199211
sub11704-64070
main11704-64050i198712-199008
main11704-88360i198712-198911
11711BEARING, CRANKSHAFT
main11071-63020-01i198911-199202
MARK 1,NO.3 JURNAL
sub11071-63021
main11071-63020-01i198810-198911
MARK 1,NO.3,MARK 1
sub11071-63021
main11071-63020-01i198712-198810
sub11071-63021
main11071-63020-02i198911-199202
MARK 2,NO.3 JURNAL
sub11071-63021
main11071-63020-02i198712-198810
sub11071-63021
main11071-63020-02i198810-198911
MARK 2,NO.3,MARK 2
sub11071-63021
main11071-63020-03i198810-198911
MARK 3,NO.3,MARK 3
sub11071-63021
main11071-63020-03i198911-199202
MARK 3,NO.3 JURNAL
sub11071-63021
main11071-63020-03i198712-198810
sub11071-63021
main11071-63020-04i198810-198911
MARK 4,NO.3,MARK 4
sub11071-63021
main11071-63020-04i198712-198810
sub11071-63021
main11071-63020-04i198911-199202
MARK 4,NO.3 JURNAL
sub11071-63021
main11071-63020-05i198810-198911
MARK 5,NO.3,MARK 5
sub11071-63021
main11071-63020-05i198911-199202
MARK 5,NO.3 JURNAL
sub11071-63021
main11071-63020-05i198712-198810
sub11071-63021
main11071-88360-01i198712-199202
sub11071-88570
main11071-88360-02i198712-199202
sub11071-88570
main11071-88360-03i198712-199202
sub11071-88570
main11071-88360-04i198712-199202
sub11071-88570
main11071-88360-05i198712-199202
sub11071-88570
main11701-11010-01i198712-198912
MARK 1
sub11701-11011
main11701-11010-02i198712-198912
MARK 2
sub11701-11011
main11701-11010-03i198712-198912
MARK 3
sub11701-11011
main11701-11010-04i198712-198912
MARK 4
sub11701-11011
main11701-11010-05i198712-198912
MARK 5
sub11701-11011
main11701-11011-01i198912-199211
MARK 1
sub11701-11012
main11701-11011-02i198912-199211
MARK 2
sub11701-11012
main11701-11011-03i198912-199211
MARK 3
sub11701-11012
main11701-11011-04i198912-199211
MARK 4
sub11701-11012
main11701-11011-05i198912-199211
MARK 5
sub11701-11012
main11701-15050-01i198712-198808
MARK 1
sub11701-16010
main11701-15050-02i198712-198808
MARK 2
sub11701-16010
main11701-15050-03i198712-198808
MARK 3
sub11701-16010
main11701-15050-04i198712-198808
MARK 4
sub11701-16010
main11701-15050-05i198712-198808
MARK 5
sub11701-16010
main11701-16010-01i198808-199202
MARK 1
main11701-16010-02i198808-199202
MARK 2
main11701-16010-03i198808-199202
MARK 3
main11701-16010-04i198808-199202
MARK 4
main11701-16010-05i198808-199202
MARK 5
main11701-63021-01i198911-199202
MARK 1,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-01i198810-198911
MARK 1,NO.1,2,4,5,MARK 1
sub11701-63022
main11701-63021-01i198712-198810
MARK 1,NO.1,2,4,5
sub11701-63022
main11701-63021-02i198911-199202
MARK 2,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-02i198712-198810
MARK 2,NO.1,2,4,5
sub11701-63022
main11701-63021-02i198810-198911
MARK 2,NO.1,2,4,5,MARK 2
sub11701-63022
main11701-63021-03i198712-198810
MARK 3,NO.1,2,4,5
sub11701-63022
main11701-63021-03i198911-199202
MARK 3,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-03i198810-198911
MARK 3,NO.1,2,4,5,MARK 3
sub11701-63022
main11701-63021-04i198810-198911
MARK 4,NO.1,2,4,5,MARK 4
sub11701-63022
main11701-63021-04i198911-199202
MARK 4,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-04i198712-198810
MARK 4,NO.1,2,4,5
sub11701-63022
main11701-63021-05i198911-199202
MARK 5,NO.1,2,4,5 JURNAL
sub11701-63022
main11701-63021-05i198712-198810
MARK 5,NO.1,2,4,5
sub11701-63022
main11701-63021-05i198810-198911
MARK 5,NO.1,2,4,5,MARK 5
sub11701-63022
main11701-64040-01i199008-199211
MARK 1
sub11701-64070
main11701-64040-02i199008-199211
MARK 2
sub11701-64070
main11701-64040-03i199008-199211
MARK 3
sub11701-64070
main11701-64050-01i198712-199008
MARK 1
main11701-64050-02i198712-199008
MARK 2
main11701-64050-03i198712-199008
MARK 3
main11701-88342-01i198909-198911
MARK 1,NO.1,2,4,5,*54,MARK 1
main11701-88342-02i198909-198911
MARK 2,NO.1,2,4,5,*54,MARK 2
main11701-88342-03i198909-198911
MARK 3,NO.1,2,4,5,*54,MARK 3
main11701-88342-04i198909-198911
MARK 4,NO.1,2,4,5,*54,MARK 4
main11701-88342-05i198909-198911
MARK 5,NO.1,2,4,5,*54,MARK 5
main11701-88360-01i198911-199202
MARK 1,NO.1,2,4,5
main11701-88360-01i198909-198911
MARK 1,NO.1,2,4,5,*53,MARK 1
main11701-88360-01i198712-198909
MARK 1,NO.1,2,4,5,MARK 1
main11701-88360-02i198911-199202
MARK 2,NO.1,2,4,5
main11701-88360-02i198712-198909
MARK 2,NO.1,2,4,5,MARK 2
main11701-88360-02i198909-198911
MARK 2,NO.1,2,4,5,*53,MARK 2
main11701-88360-03i198909-198911
MARK 3,NO.1,2,4,5,*53,MARK 3
main11701-88360-03i198911-199202
MARK 3,NO.1,2,4,5
main11701-88360-03i198712-198909
MARK 3,NO.1,2,4,5,MARK 3
main11701-88360-04i198909-198911
MARK 4,NO.1,2,4,5,*53,MARK 4
main11701-88360-04i198712-198909
MARK 4,NO.1,2,4,5,MARK 4
main11701-88360-04i198911-199202
MARK 4,NO.1,2,4,5
main11701-88360-05i198911-199202
MARK 5,NO.1,2,4,5
main11701-88360-05i198712-198909
MARK 5,NO.1,2,4,5,MARK 5
main11701-88360-05i198909-198911
MARK 5,NO.1,2,4,5,*53,MARK 5
13011RING SET, PISTON
main13011-11090i198712-199211
main13011-15050i198712-199202
main13011-16120i198808-199112
sub13011-16130
main13011-16140i199112-199202
main13011-64190i198712-199209
main13011-64191i199209-199211
sub13011-64212
main13011-74071i198712-199007
sub13011-74072
main13011-74072i199007-199202
main13011-74110i198712-199202
sub13011-74120
main13011-88363i198712-199202
main13013-11090i198712-199211
main13013-15050i198712-199202
main13013-16120i198808-199112
sub13013-16130
main13013-16140i199112-199202
main13013-64190i198712-199209
main13013-64191i199209-199211
sub13013-64212
main13013-74071i198911-199007
sub13013-74072
main13013-74072i199007-199202
main13013-74110i198911-199202
sub13013-74120
main13014-74110i198911-199202
sub13014-74120
13041BEARING, CONNECTING ROD
main13041-11010-01i198808-199211
MARK 1
main13041-11010-02i198808-199211
MARK 2
main13041-11010-03i198808-199211
MARK 3
main13041-11020-01i198712-198808
MARK 1
sub13041-11010
main13041-11020-02i198712-198808
MARK 2
sub13041-11010
main13041-11020-03i198712-198808
MARK 3
sub13041-11010
main13041-15030-01i198712-199202
MARK 1
sub13041-15031
main13041-15030-02i198712-199202
MARK 2
sub13041-15031
main13041-15030-03i198712-199202
MARK 3
sub13041-15031
main13041-63020-01i198712-199202
MARK 1
main13041-63020-02i198712-199202
MARK 2
main13041-63020-03i198712-199202
MARK 3
main13041-64041-01i199008-199211
MARK 1
sub13041-64070
main13041-64041-02i199008-199211
MARK 2
sub13041-64070
main13041-64041-03i199008-199211
MARK 3
sub13041-64070
main13041-64050-01i198712-199008
MARK 1
main13041-64050-02i198712-199008
MARK 2
main13041-64050-03i198712-199008
MARK 3
main13041-88360-01i198712-199202
MARK 1
main13041-88360-02i198712-199202
MARK 2
main13041-88360-03i198712-199202
MARK 3
13101PISTON SUB-ASSY, W/PIN
main13101-11080i198712-198801
sub13101-11081
main13101-11080-01i198801-198911
sub13101-11080
sub13101-11081
main13101-11080-02i198801-198911
sub13101-11080
sub13101-11081
main13101-11080-03i198801-198911
sub13101-11080
sub13101-11081
main13101-11081-01i198911-199211
main13101-11081-02i198911-199211
main13101-11081-03i198911-199211
main13101-15030i198712-198801
sub13101-15040
main13101-15030-01i198801-199107
sub13101-15030
sub13101-15040
main13101-15030-02i198801-199107
sub13101-15030
sub13101-15040
main13101-15030-03i198801-199107
sub13101-15030
sub13101-15040
main13101-15040-01i199107-199202
main13101-15040-02i199107-199202
main13101-15040-03i199107-199202
main13101-16090-01i198808-199112
sub13101-16090
sub13101-16110
main13101-16090-02i198808-199112
sub13101-16090
sub13101-16110
main13101-16090-03i198808-199112
sub13101-16090
sub13101-16110
main13101-16110-01i199112-199202
main13101-16110-02i199112-199202
main13101-16110-03i199112-199202
main13101-64110i198712-198801
main13101-64110-01i198801-199209
sub13101-64110
main13101-64110-02i198801-199209
sub13101-64110
main13101-64110-03i198801-199209
sub13101-64110
main13101-64111-01i199209-199211
main13101-64111-02i199209-199211
main13101-64111-03i199209-199211
main13101-74032i198712-198802
main13101-74032-01i198802-198911
sub13101-74032
main13101-74032-02i198802-198911
sub13101-74032
main13101-74032-03i198802-198911
sub13101-74032
main13101-74040i198712-198802
main13101-74040-01i198802-199005
sub13101-74040
main13101-74040-02i198802-199005
sub13101-74040
main13101-74040-03i198802-199005
sub13101-74040
main13101-74040-04i199002-199005
sub13101-74040
main13101-74070i198712-198802
sub13101-74071
main13101-74070-01i198802-198808
sub13101-74070
sub13101-74071
main13101-74070-02i198802-198808
sub13101-74070
sub13101-74071
main13101-74070-03i198802-198808
sub13101-74070
sub13101-74071
main13101-74071-01i198808-199202
sub13101-74071
main13101-74071-02i198808-199202
sub13101-74071
main13101-74071-03i198808-199202
sub13101-74071
main13101-74090-01i198911-199202
main13101-74090-02i198911-199202
main13101-74090-03i198911-199202
main13101-74110-01i199005-199202
sub13101-74111
main13101-74110-02i199005-199202
sub13101-74111
main13101-74110-03i199005-199202
sub13101-74111
main13101-74110-A0i199110-199202
sub13101-74111
main13101-88361i198712-198802
main13101-88361-01i198802-198911
sub13101-88361
main13101-88361-02i198802-198911
sub13101-88361
main13101-88361-03i198802-198911
sub13101-88361
main13103-11080i198712-198911
sub13103-11081
main13103-11081i198911-199211
main13103-15030i198712-199107
sub13103-15040
main13103-15040i199107-199202
main13103-16090i198808-199112
sub13103-16110
main13103-16110i199112-199202
main13103-64110i198712-199209
main13103-64111i199209-199211
main13103-74040i198911-199005
main13103-74071i198911-199202
main13103-74110i199005-199202
sub13103-74111
main13104-74071i198911-199202
13201ROD SUB-ASSY, CONNECTING
main13201-19055i198712-199201
sub13201-19056
main13201-19056i199201-199202
main13201-19085i198712-199001
sub13201-19086
main13201-19086i199001-199004
sub13201-19087
main13201-19087i199004-199211
sub13201-19088
main13201-69055i198712-199202
main13201-69065i198712-199008
sub13201-69135
main13201-69115i199008-199211
sub13201-69076
main13201-79096i198712-199202
sub13201-79195
13202BEARING SET, CONNECTING ROD
main13204-11010i198808-199211
main13204-11020i198712-198808
sub13204-11010
main13204-15030i198712-199202
sub13204-15031
main13204-63020i198712-199202
main13204-64041i199008-199211
sub13204-64070
main13204-64050i198712-199008
main13204-88360i198712-198911
13265BOLT, CONNECTING ROD
main13265-10020i198712-199004
sub13265-10022
main13265-10021i199004-199211
sub13265-10022
main13265-15030i199106-199202
main13265-16010i198712-199106
main13265-49015i198712-199211
main13265-63010i198712-199202
main13265-74010i198712-199202
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main90170-09001i198712-199106
main90170-09005i199106-199201
main90179-08014i198712-199211
main90179-09001i198712-199202
main90179-09008i199201-199202
main90179-10042i198712-199211
main90179-10107i198712-199202
13405FLYWHEEL SUB-ASSY
main13405-11040i198712-198901
sub13405-11041
main13405-11041i198901-198911
main13405-11051i198911-199211
main13405-15030i198712-198911
main13405-16010i198911-199202
main13405-16060i198808-199202
main13405-64020i198712-199202
main13405-64060i198911-199211
main13405-74011i198712-198907
main13405-74020i198712-198905
sub13405-74021
main13405-74031i198905-199006
sub13405-74120
main13405-74070i198911-199202
main13405-74110i198907-198911
main13405-74120i199006-199202
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i198712-199211
main90250-08120i198712-199211
13405BBOLT, FLYWHEEL SETTING
main90105-10042i198712-199202
main90105-10071i198712-199202
main90105-10138i198712-199211
main90105-12187i198907-199202
13411CRANKSHAFT
main13401-11040i198712-199211
main13411-15040i198712-199106
sub13411-15050
main13411-15050i199106-199108
sub13411-15900
main13411-15900i199108-199202
sub13411-02910
main13411-64900i198712-199104
sub13411-64901
sub13521-64011
main13411-64901i199104-199211
sub13411-64904
main13411-74901i198712-198905
main13411-74902i198712-198907
sub13411-74907
sub90311-89001
main13411-74903i198907-199202
sub13411-74909
main13411-74904i198905-199202
13453GEAR, FLYWHEEL RING
main13453-10010i198712-199202
main13453-10030i198712-199211
main13453-20010i198712-198911
main13453-64011i198712-199211
main13453-74010i198712-198907
sub13453-74011
main13453-74011i198907-199202
13471PULLEY, CRANKSHAFT
main13407-74020i198908-199202
*53
main13407-88360i198712-198908
*53
sub13407-88380
main13407-88360i198712-198910
*54
sub13407-88380
main13407-88380i198910-198911
*54
main13408-11012i198712-199211
sub13470-11030
main13408-64031i198712-198911
main13408-64060i198911-199211
main13408-74020i198712-199202
sub13408-74010
main13408-74040i198712-199106
sub13408-74041
main13408-74041i199106-199202
sub13408-74031
main13470-15070i198808-198911
main13470-16060i198712-199202
sub13470-16061
sub90119-12230
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-12051i198712-199211
main90105-14011i198812-199202
*53
main90105-14011i198712-198911
*54
main90105-14057i198712-198812
*53
sub90105-14011
main90105-14077i199006-199105
sub90105-14089
sub90201-14030
main90105-14089i199105-199211
main90119-12101i198712-199107
main90119-12230i199107-199202
sub90119-12314
main90119-14015i198712-199202
main90119-14027i198811-199202
main91511-61435i198712-199006
sub90105-14089
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05005i199106-199211
main90280-05010i198712-198910
main95161-10519i198712-198808
main95161-20519i198808-199202
main95161-20622i198712-199206
sub95161-30622
main95161-30622i199206-199211
13521PPULLEY, CRANKSHAFT TIMING
main13521-11010i198712-199211
main13521-15010i198712-199202
main13521-64010i198712-199105
sub13521-64011
main13521-64011i199105-199211
main13521-74020i198712-199202
sub13521-74040
main13521-88360i198712-199202
13566AGUIDE, TIMING BELT
main13566-10011i198712-199211
main13566-15010i198712-199202
main13566-64010i198712-199102
sub13566-64011
main13566-64011i199102-199211
main13566-88360i198712-199202
main13567-74010i198712-199202

20 parts on this diagram · 6 diagrams in section
