Toyota CORONA — COWL PANEL & WINDSHIELD GLASS

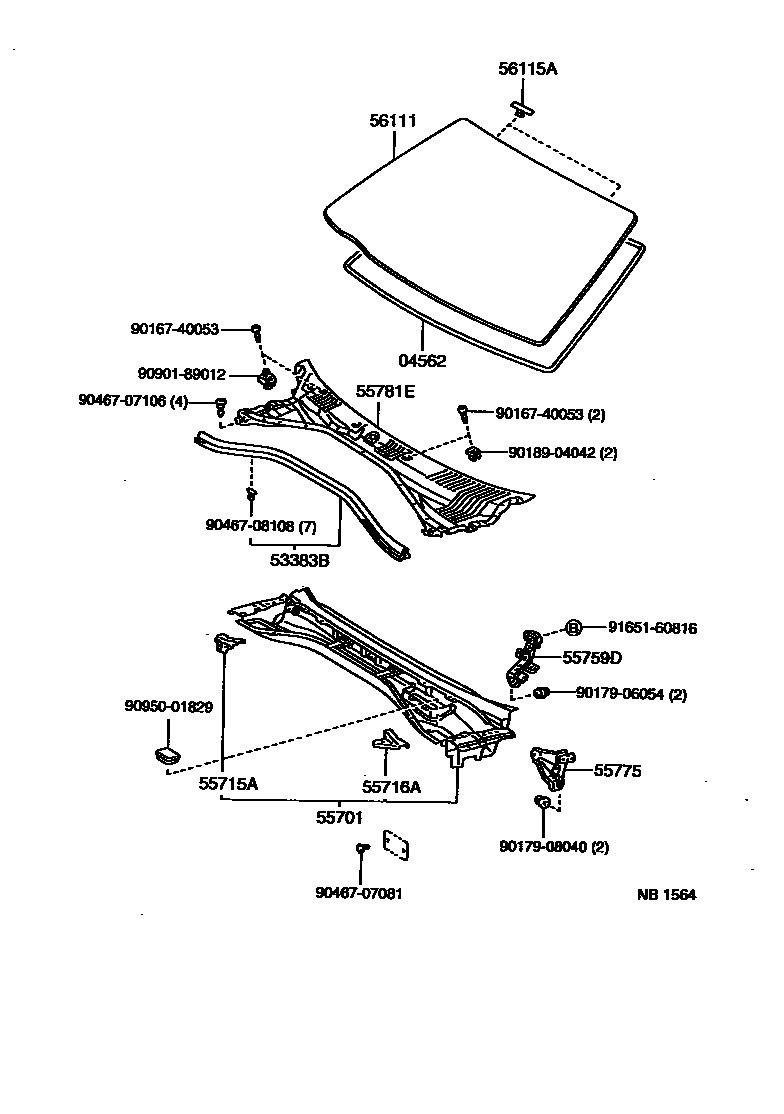

Parts diagram

04562DAM KIT, WINDSHIELD GLASS

main04562-12010i199601

53383BSEAL, HOOD TO COWL TOP

main53383-20180i199601-200008

main53383-20210i200008

55701PANEL SUB-ASSY, COWL

main55700-2B080i199601-199712

main55700-2B090i199601-199712

main55700-2B191i199712

main55700-2B200i199712

55715ABRACE, COWL TOP TO APRON, RH

main55715-20120i199601

55716ABRACE, COWL TOP TO APRON, LH

main55716-20090i199601

55759DBRACKET, COWL TOP INNER STAY MOUNTING

main55759-20070i199601

55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH

main55775-20080i199601

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-20230i199601

56111GLASS, WINDSHIELD

main56111-2B600i199601

main56111-2B610i199601

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56116-35050×2i199601

9016740053

main90167-40053

9017906054

main90179-06054

9017908040

main90179-08040

9018904042

main90189-04042

9046707081

main90467-07081

9046707106

main90467-07106

9046708108

main90467-08108

9090189012

main90901-89012

9095001829

main90950-01829

9165160816

main91651-60816

20 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CORONA

This section contains 20 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CORONA. Key components include: DAM KIT, WINDSHIELD GLASS, SEAL, HOOD TO COWL TOP, PANEL SUB-ASSY, COWL, BRACE, COWL TOP TO APRON, RH, BRACE, COWL TOP TO APRON, LH.
