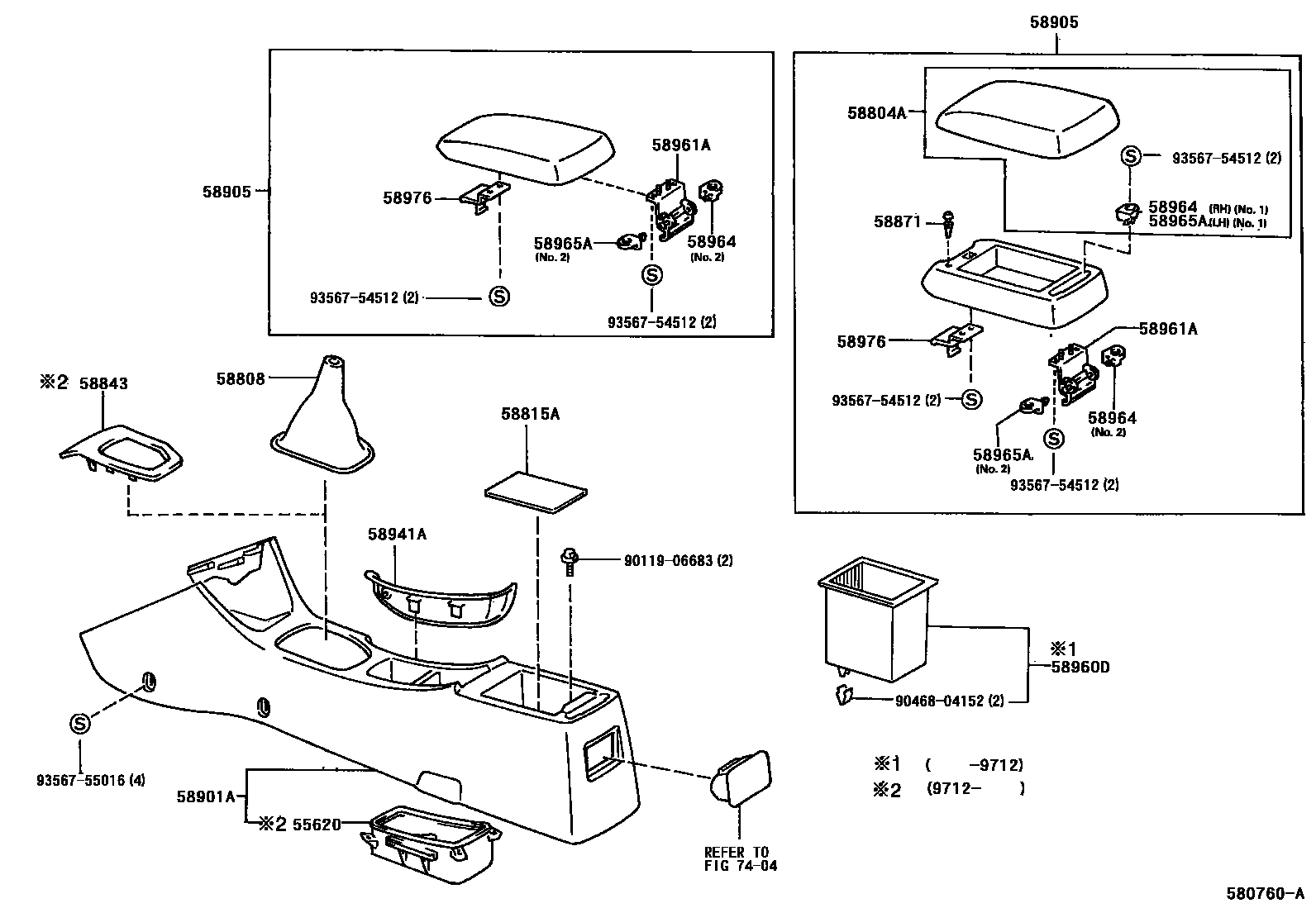

Toyota CORONA — CONSOLE BOX & BRACKET
55620HOLDER ASSY, INSTRUMENT PANEL CUP
SHADOW GRAY,TRIM11
DK. CHARCOAL,TRIM17
58804APANEL SUB-ASSY, CONSOLE, UPPER
SHADOW GRAY,TRIM1#
ANTELOPE,TRIM4#
58808COVER SUB-ASSY, SHIFTING HOLE
BLACK,TRIM1#,4#
58815ACARPET, CONSOLE BOX
58843BEZEL, SHIFTING HOLE
SHADOW GRAY,TRIM11
DK.CHARCOAL,TRIM17
58871CUSHION, CONSOLE BOX
58901ABOX SUB-ASSY, CONSOLE, REAR
SHADOW GRAY,TRIM1#
ANTELOPE,TRIM4#
SHADOW GRAY,TRIM11
DK.CHARCOAL,TRIM17
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
SHADOW GRAY,TRIM1#
ANTELOPE,TRIM4#
SHADOW GRAY,TRIM1#
ANTELOPE,TRIM4#
SHADOW GRAY,TRIM11
DK.CHARCOAL,TRIM17
SHADOW GRAY,TRIM11
DK.CHARCOAL,TRIM17
58941ACOVER, PARKING BRAKE HOLE
SHADOW GRAY,TRIM1#
DK.CHARCOAL,TRIM17
ANTELOPE,TRIM4#
SHADOW GRAY,TRIM11
DK.CHARCOAL,TRIM17
58960DHOLDER ASSY, CD CASE
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK
7404ASH RECEPTACLE
9011906683
main90119-06683
9046804152
main90468-04152
9356754512
main93567-54512
9356755016
main93567-55016
19 parts on this diagram · 1 diagram in section
CONSOLE BOX & BRACKET for Toyota CORONA
This section contains 19 genuine Toyota parts for the CONSOLE BOX & BRACKET system of the Toyota CORONA. Key components include: HOLDER ASSY, INSTRUMENT PANEL CUP, PANEL SUB-ASSY, CONSOLE, UPPER, COVER SUB-ASSY, SHIFTING HOLE, CARPET, CONSOLE BOX, BEZEL, SHIFTING HOLE.
