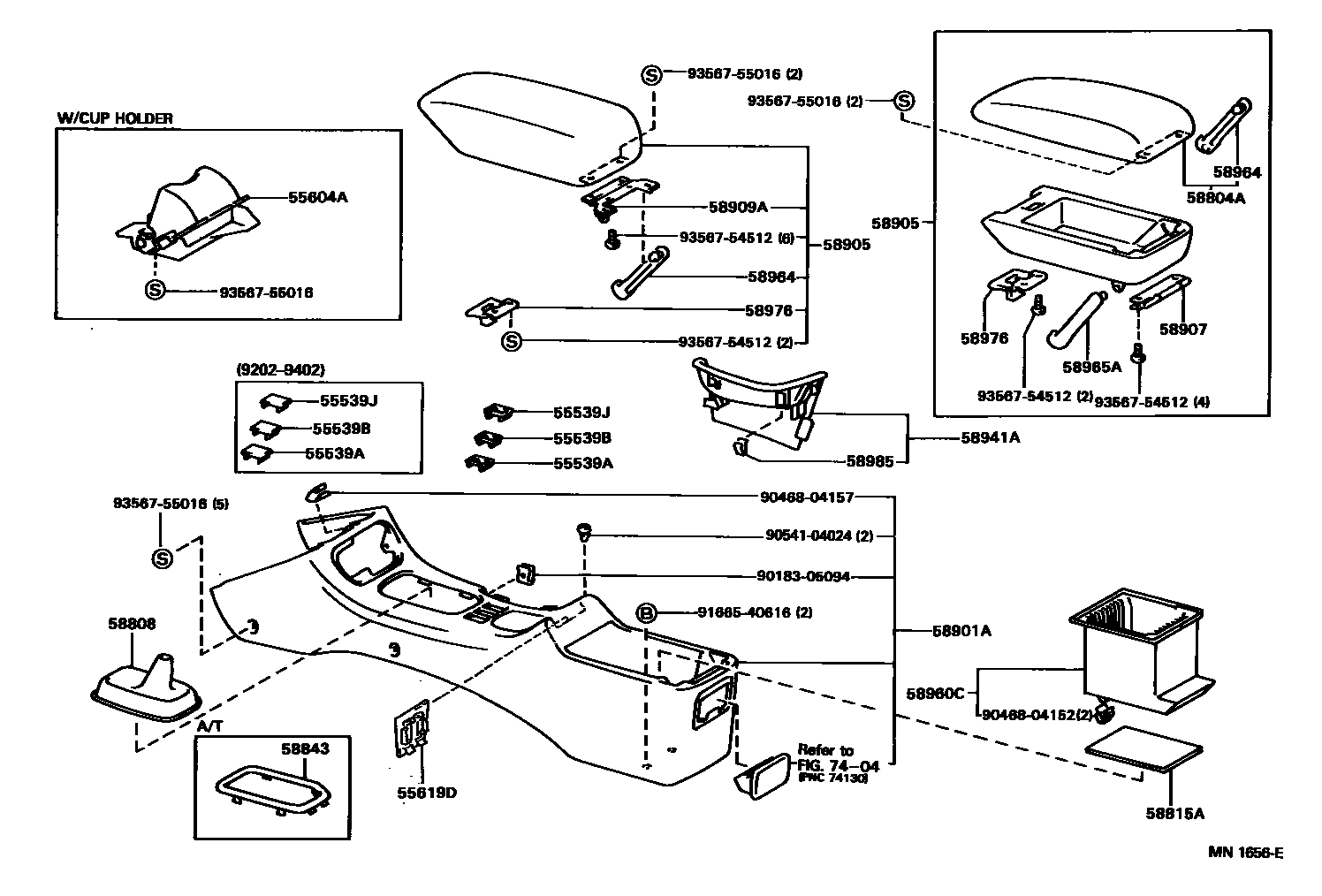

Toyota CORONA — CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-12120-B0iCT190,ST190..KYO199402-199601

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-C0iST191..EXS;AT190,CT190,ST190,195199202-199402

BLACK,TRIM2#

sub55539-12120

sub55539-32010

main55539-12120-E0iST191..EXS;AT190,CT19#,ST190,195..SED199202-199601

ANTELOPE,TRIM4#

sub55539-12120

sub55539-32010

main55539-20020-E4iST191..EXS;AT190,CT19#,ST190,195..EXG,EXS,GX,SELS199402-199601

ANTELOPE,TRIM4#

sub55539-20020

main55539-20020-P0iST191..EXS;AT190,CT19#,ST190,195..EXG,EXS,GX,SELS,TYPE1199402-199601

SHADOW GRAY,TRIM1#

sub55539-20020

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-12120-B0iCT190,ST190..KYO199402-199601

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-C0iAT190,CT190,ST19#199202-199402

BLACK,TRIM2#

sub55539-12120

sub55539-32010

main55539-12120-E0iAT190,CT190,ST19#..SED199202-199601

ANTELOPE,TRIM4#

sub55539-12120

sub55539-32010

main55539-20020-E4iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

ANTELOPE,TRIM4#

sub55539-20020

main55539-20020-P0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

SHADOW GRAY,TRIM1#

sub55539-20020

55539JCOVER, SPARE SWITCH HOLE

main55539-12120-B0iCT190,ST190..KYO199402-199601

SHADOW GRAY,TRIM1#

sub55539-12120

sub55539-32010

main55539-12120-C0iAT190,CT190,ST19#199202-199402

BLACK,TRIM2#

sub55539-12120

sub55539-32010

main55539-12120-E0iCT190,ST190..KYO199202-199601

ANTELOPE,TRIM4#

sub55539-12120

sub55539-32010

main55539-20020-E4iAT190,CT19#,ST19#..EXG,EXS,GX,SELS199402-199601

ANTELOPE,TRIM4#

sub55539-20020

main55539-20020-P0iAT190,CT19#,ST19#..EXG,EXS,GX,SELS,TYPE1,TYPE2199402-199601

SHADOW GRAY,TRIM1#

sub55539-20020

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-20050-B1iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199402-199601

SHADOW GRAY,TRIM1#

sub55604-20050

main55604-20050-C0iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199402

BLACK,TRIM2#

sub55604-20050

main55604-20050-E0iAT190,CT19#,ST19#..EXG,EXS199202-199601

ANTELOPE,TRIM4#

sub55604-20050

55619DCOVER, CUP HOLDER HOLE

main55619-20010-B1iAT190,CT19#,ST190,195..GX,KYO,SELS199402-199601

SHADOW GRAY,TRIM1#

sub55619-20010

main55619-20010-C0iAT190,CT19#,ST190,195..GX,KYO,SELS199202-199402

BLACK,TRIM2#

sub55619-20010

main55619-20010-E0iAT190,CT19#,ST190,195..GX,KYO,SELS199202-199601

ANTELOPE,TRIM4#

sub55619-20010

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20110-B2iAT190,CT19#,ST19#..EXS199402-199601

SHADOW GRAY,TRIM1#

sub58804-20110

main58804-20110-C0iAT190,CT19#,ST19#..EXS199202-199402

BLACK,TRIM2#

sub58804-20110

main58804-20110-E1iAT190,CT19#,ST19#..EXS199202-199601

ANTELOPE,TRIM4#

sub58804-20110

main58804-20120-B0iST190,191..EXG199402-199601

GRAY,TRIM1#

main58804-20120-B0iST190,191..EXG199202-199402

GRAY,TRIM2#

main58804-20120-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

main58804-20130-B1iST191..TYPE2199402-199601

SHADOW GRAY,TRIM1#

main58804-20130-C1iST191..TYPE2199202-199402

BLACK,TRIM2#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20100-C0iAT190,CT19#,ST190,195..SED..MTM199202-199402

BLACK,TRIM2#

main58808-20100-C0iAT190,CT19#,ST190,195..SED..MTM199305-199402

BLACK,TRIM2#,4#

main58808-20100-C0iAT190,CT19#,ST190,195..SED..MTM199402-199601

BLACK,TRIM1#,4#

main58808-20100-C0iST190..MTM..TYPE1199402-199601

BLACK,TRIM1#

main58808-20100-E0iAT190,CT19#,ST190,195..SED..MTM199202-199402

ANTELOPE,TRIM4#

58815ACARPET, CONSOLE BOX

main58815-20030-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

sub58815-20030

main58815-20030-C0iAT190,CT19#,ST19#..SED199402-199601

BLACK,TRIM1#

sub58815-20030

main58815-20030-C0iST190,191..LB199402-199601

BLACK,TRIM1#,4#

sub58815-20030

main58815-20030-E0iAT190,CT19#,ST19#..SED199202-199402

ANTELOPE,TRIM4#

sub58815-20030

58843BEZEL, SHIFTING HOLE

main58843-20060iAT190,CT190,ST19#..ATM199202-199601

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-20120-B2iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

sub58901-20120

main58901-20120-C0iAT190,CT19#,ST19#199202-199305

BLACK,TRIM2#

sub58901-20120

main58901-20120-C1iAT190,CT19#,ST19#199305-199402

BLACK,TRIM2#

sub58901-20120

main58901-20120-E0iAT190,CT19#,ST19#..SED199202-199305

ANTELOPE,TRIM4#

sub58901-20120

main58901-20120-E2iAT190,CT19#,ST19#..SED199305-199601

ANTELOPE,TRIM4#

sub58901-20120

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20170-B1iAT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1199402-199601

SHADOW GRAY,TRIM1#

sub58905-20170

main58905-20170-C0iAT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1199202-199402

BLACK,TRIM2#

sub58905-20170

main58905-20170-E0iAT190,CT19#,ST190,195..GX,KYO,SELS199202-199601

ANTELOPE,TRIM4#

sub58905-20170

main58905-20180-B1iAT190,CT19#,ST19#..EXS199402-199601

SHADOW GRAY,TRIM1#

sub58905-20180

main58905-20180-C1iAT190,CT19#,ST19#..EXS199202-199402

BLACK,TRIM2#

sub58905-20180

main58905-20180-E1iAT190,CT19#,ST19#..EXS199202-199601

ANTELOPE,TRIM4#

sub58905-20180

main58905-20190-B1iST190,191..EXG199402-199601

SHADOW GRAY,TRIM1#

main58905-20190-C0iST190,191..EXG199202-199402

BLACK,TRIM2#

main58905-20190-E0iST190,191..EXG199202-199601

ANTELOPE,TRIM4#

main58905-20200-B1iST191..TYPE2199402-199601

SHADOW GRAY,TRIM1#

sub58905-20200

main58905-20200-C3iST191..TYPE2199202-199402

BLACK,TRIM2#

sub58905-20200

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-20020iAT190,CT19#,ST19#..EXG,EXS,TYPE2199202-199601

58909ASTOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58909-20030iAT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1199202-199601

58941ACOVER, PARKING BRAKE HOLE

main58904-20030-B1iAT190,CT19#,ST19#199402-199601

SHADOW GRAY,TRIM1#

sub58904-20030

main58904-20030-C0iAT190,CT19#,ST19#199202-199402

BLACK,TRIM2#

sub58904-20030

main58904-20030-E0iAT190,CT19#,ST19#..SED199202-199601

ANTELOPE,TRIM4#

sub58904-20030

58960CHOLDER ASSY, CASSETTE CASE

main58960-20050iAT190,CT19#,ST19#..EXG,EXS,TYPE1,TYPE2199202-199601

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-12040iAT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1199202-199601

main58965-12040iAT190,CT19#,ST190,195..GX,KYO,SELS,TYPE1199202-199601

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58964-12040iAT190,CT19#,ST19#..EXG,EXS,TYPE2199202-199402

main58965-12040iAT190,CT19#,ST19#..EXG,EXS,TYPE2199202-199402

main58965-12040iAT190,CT19#,ST19#..EXG,EXS,TYPE2199402-199601

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iAT190,CT19#,ST19#199202-199601

58985RETAINER, CONSOLE BOX

main58985-20050iAT190,CT19#,ST19#199202-199601

7404

9018305094

main90183-05094

9046804152

main90468-04152

9046804157

main90468-04157

9054104024

main90541-04024

9166540616

main91665-40616

9356754512

main93567-54512

9356755016

main93567-55016

27 parts on this diagram · 1 diagram in section
