Toyota CORONA — CLUTCH & RELEASE FORK

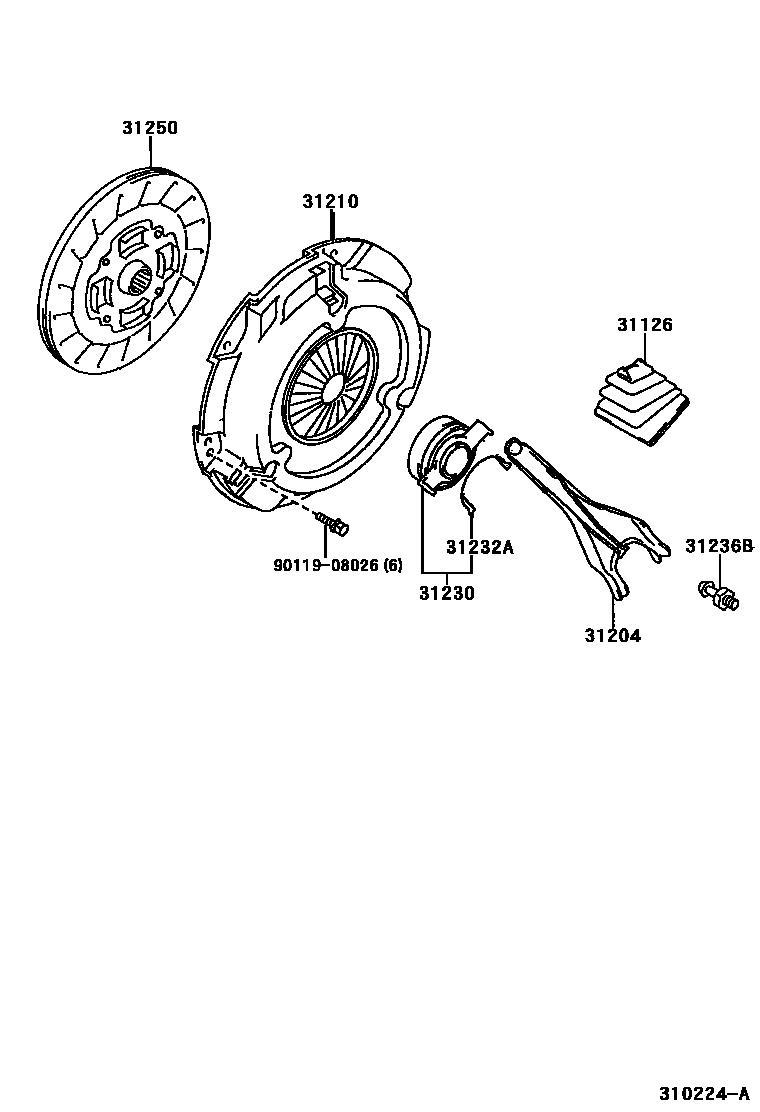

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-12051i199601-200112

main31126-32010i199601-200112

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-17010i199601-200112

main31204-20100i199601-200112

31210COVER ASSY, CLUTCH

main31210-12201i199601

main31210-20331i199601

main31210-32130i199601-199712

main31210-44010i199712

31230BEARING ASSY, CLUTCH RELEASE

main31230-12170i199601-200101

main31230-12171i200101-200112

main31230-20170i199601-199712

main31230-32060i199601-199712

31232ACLIP, RELEASE BEARING HUB

main31232-12070i199601-200112

main31232-20020i199601-200112

main31232-32050i199712-200112

31236BSUPPORT, RELEASE FORK

main31236-12020i199601-200112

main31236-20060i199601-199712

main31236-32010i199601-199712

31250DISC ASSY, CLUTCH

main31250-12370i199608-199708

main31250-20141i199601-199712

main31250-20271i199712

main31250-20280i199608-199708

main31250-20290i199601-199712

main31250-32100i199601-199906

main31250-32101i199906

9011908026

main90119-08026

8 parts on this diagram · 3 diagrams in section

CLUTCH & RELEASE FORK for Toyota CORONA

This section contains 8 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CORONA. Key components include: BOOT, CLUTCH RELEASE FORK, FORK SUB-ASSY, CLUTCH RELEASE, COVER ASSY, CLUTCH, BEARING ASSY, CLUTCH RELEASE, CLIP, RELEASE BEARING HUB.
