Toyota CORONA — CLUTCH & RELEASE FORK

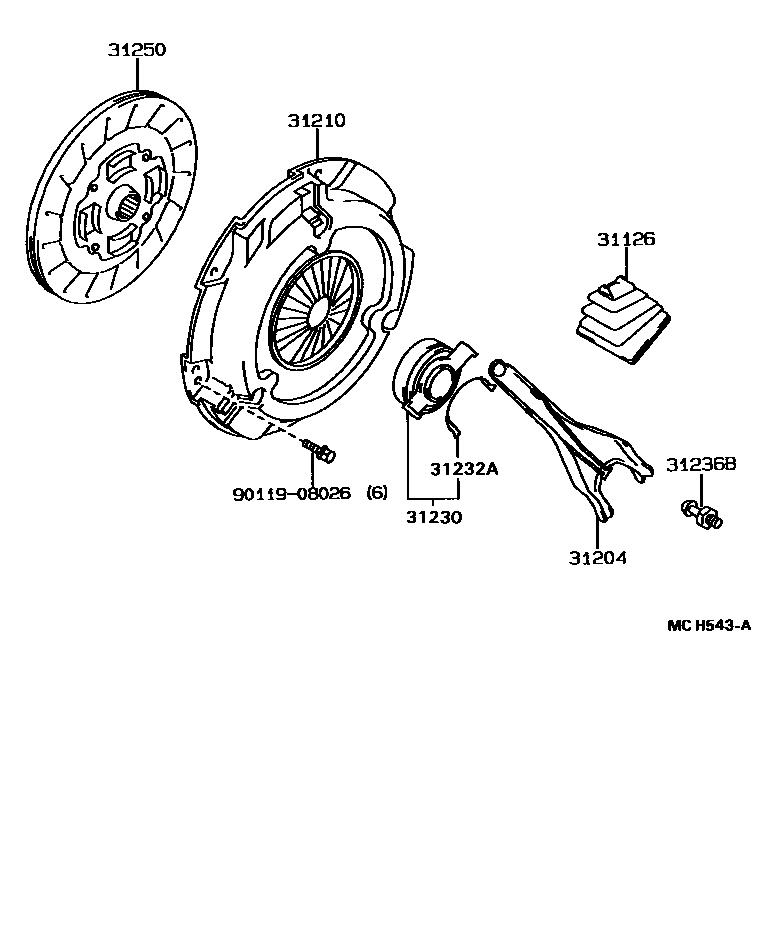

Parts diagram
31126BOOT, CLUTCH RELEASE FORK
main31126-12051i198712-199211
main31126-12060i198908-199202
main31126-32010i198712-199211
31204FORK SUB-ASSY, CLUTCH RELEASE
main31204-12050i198712-199211
main31204-17010i198808-199202
main31204-20100i199005-199211
main31204-32010i198712-199005
31210COVER ASSY, CLUTCH
main31210-12130i198808-199008
sub31210-12131
main31210-12131i199008-199202
sub31210-12231
main31210-12141i198911-199104
sub31210-12190
main31210-12190i199104-199202
sub31210-12191
main31210-16091i198911-199211
sub31210-16092
main31210-16100i198712-198812
sub31210-16101
main31210-16101i198812-198911
sub31210-16102
main31210-20240i198911-199005
sub31210-32130
main31210-27010i198712-198907
sub31210-27011
main31210-27011i198907-198911
sub31210-12180
main31210-32030i198712-198812
sub31210-32120
main31210-32051i198911-199202
sub31210-32074
main31210-32062i198911-199211
sub31210-12270
main31210-32071i198712-198808
sub31210-32072
main31210-32072i198808-198906
sub31210-32073
main31210-32073i198906-199202
sub31210-32074
main31210-32120i198712-198906
sub31210-32121
main31210-32121i198906-199211
sub31210-12320
main31210-32130i199005-199202
sub31210-33030
31230BEARING ASSY, CLUTCH RELEASE
main31230-12140i198712-199211
sub31230-16061
main31230-12170i199105-199202
sub31230-12171
main31230-20160i198808-198809
sub31230-20170
main31230-20170i198809-199202
main31230-32020i198712-199005
sub31230-32100
main31230-32060i199005-199211
31232ACLIP, RELEASE BEARING HUB
main31232-12040i198712-199211
main31232-12070i199105-199202
main31232-12070i199105-199202
main31232-16031i198712-199211
main31232-20020i198808-199211
main31232-20020i198911-199211
TYPE 6
main31232-32010i198712-199005
main31232-32020i198712-199005
main31232-32030i198712-199008
main31232-32050i199008-199211
31236BSUPPORT, RELEASE FORK
main31236-12011i198712-199211
main31236-12020i199105-199202
main31236-20060i198808-199202
main31236-30030i198712-199005
main31236-32010i199005-199211
31250DISC ASSY, CLUTCH
main31250-12144i198712-198803
sub31250-12200
main31250-12155i198911-199006
sub31250-12156
main31250-12156i199006-199104
sub31250-12310
main31250-12163i198712-198801
sub31250-12220
main31250-12200i198712-198911
sub31250-12201
main31250-12220i198801-199006
sub31250-12260
main31250-12260i199006-199104
sub31250-12280
main31250-12280i199104-199202
sub31250-12281
main31250-12310i199104-199211
sub31250-12380
main31250-17030i198808-199202
sub31250-17031
main31250-17040i199001-199202
sub31250-20250
main31250-20180i198911-199001
sub31250-17040
main31250-32026i198712-198911
sub31250-32027
main31250-32041i198712-199112
sub31250-32042
main31250-32042i199112-199202
sub31250-20250
main31250-32080i198911-199005
sub31250-32100
main31250-32100i199005-199211
sub31250-32101
9011908026
main90119-08026

8 parts on this diagram · 2 diagrams in section
