Toyota CORONA — CLUTCH & RELEASE FORK

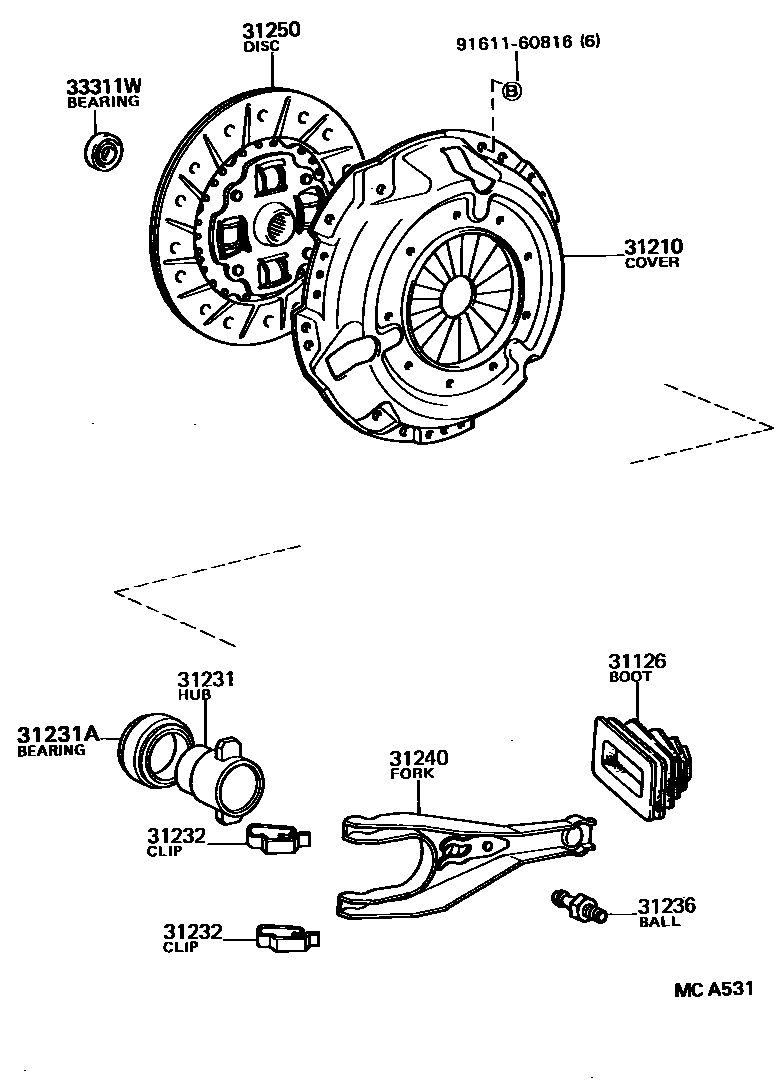

Parts diagram

31126BOOT, CLUTCH RELEASE FORK

main31126-20060i198201-199804

main31126-20070i198201-199111

31210COVER ASSY, CLUTCH

main31210-12080i198310-198508

main31210-12100i198310-198704

main31210-14070i198201-198310

main31210-20083i198201-198712

main31210-20170i198201-198210

main31210-20180i198209-198906

main31210-20181i199011-199210

main31210-20260i198906-198912

main31210-20261i198912-199007

main31210-20270i198908-199111

main31210-20340i199210-199602

main31210-20341i199602-199804

main31210-24010i198210-198508

main31210-27010i198704-198712

main31210-30172i198508-198908

main31210-35042i198201-198508

31231HUB, CLUTCH RELEASE BEARING

main31231-12050i198310-198508

main31231-12090i198310-198712

main31231-20081i198201-198712

main31231-20090i198201-198508

main31231-20150i198612-198708

main31231-36070i198508-198612

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-40022i198201-198708

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-22010×2i198201-198612

main31232-35010i198612-199804

main31232-35020×2i198807-199111

31236BALL, RELEASE FORK

main31236-30060i198201-199804

31240FORK ASSY, CLUTCH RELEASE

main31204-20070i198201-198508

main31204-20071i198508-199804

main31204-20080i198201-198712

main31204-20090i198201-198807

main31204-35050i198807-199111

31250DISC ASSY, CLUTCH

main31250-12081i198201-198712

main31250-12120i198310-198506

main31250-12121i198506-198712

main31250-12180i198310-198404

main31250-12182i198404-198409

main31250-12183i198409-198412

main31250-12184i198412-198508

main31250-14090i198201-198207

main31250-14091i198207-198310

main31250-14140i198201-198502

main31250-14141i198502-198712

main31250-14150i198305-198508

main31250-20110i198201-198203

main31250-20111i198203-198407

main31250-20112i198407-198502

main31250-20113i198502-198508

main31250-20120i198511-198601

main31250-20121i198601-198912

main31250-20130i198209-198405

main31250-20131i198405-198511

main31250-20200i199006-199111

main31250-20210i199210-199311

main31250-20211i199311-199602

main31250-22053i198201-198210

main31250-22210i198508-198902

main31250-22211i198902-199006

main31250-30200i198210-198305

main31250-30381i198912-199210

main31250-43010i199602-199804

33311WBEARING (FOR INPUT SHAFT)

main90363-12002i198201-199804

main90363-12003i198201-198712

main90363-12004i198201-199111

9161160816

main91611-60816

10 parts on this diagram · 5 diagrams in section

CLUTCH & RELEASE FORK for Toyota CORONA

This section contains 19 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CORONA. Key components include: BOOT, CLUTCH RELEASE FORK, COVER SUB-ASSY, CLUTCH, COVER ASSY, CLUTCH, SPRING, CLUTCH RETRACTING, PLATE, CLUTCH PRESSURE.
