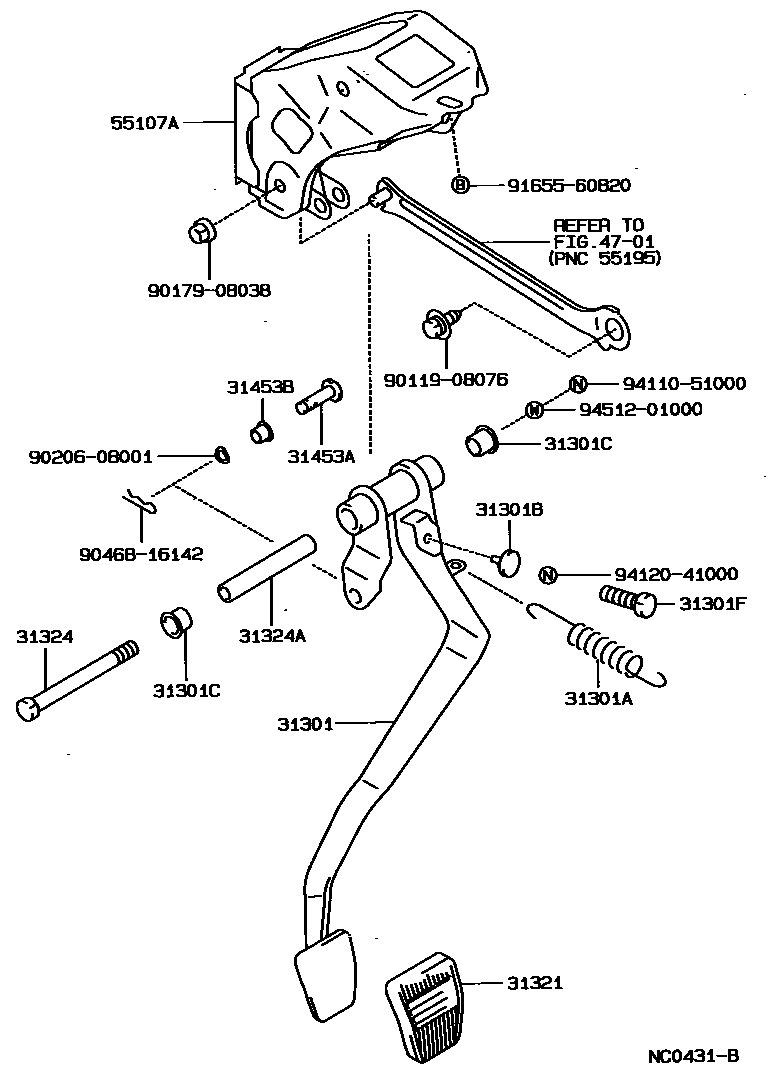

Toyota CORONA — CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-20260iAT170,CT17#,ET176,ST170..MTM198712-199211

main31301-20270iST171..5F198712-199202

main31301-20290iAT175..5F198808-199202

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14029iAT17#,CT17#,ET176,ST170..MTM198712-199211

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iAT17#,CT17#,ET176,ST170..MTM198712-199211

main90541-07020iST171..5F198712-199202

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31321PAD, CLUTCH PEDAL

main31321-14020iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31324SHAFT, CLUTCH PEDAL

main90101-10100iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10002iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iAT17#,CT17#,ET176,ST17#..MTM198712-199211

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iAT17#,CT17#,ET176,ST17#..MTM198712-199211

4701

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-20240iAT17#,CT17#,ET176,ST170..MTM198712-199211

main55107-20250iST171..5F198712-199202

9011908076

main90119-08076

9017908038

main90179-08038

9020608001

main90206-08001

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9412041000

main94120-41000

9451201000

main94512-01000

20 parts on this diagram · 4 diagrams in section
