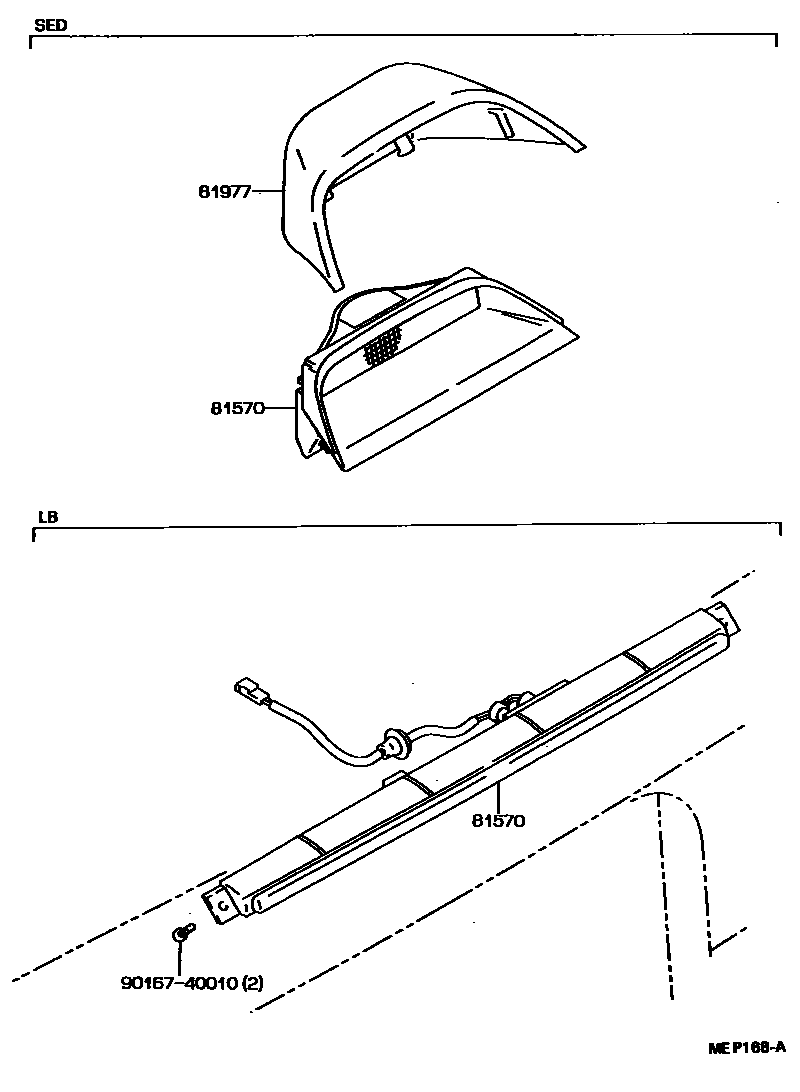

Toyota CORONA — CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-20150-03iAT17#,CT170,ST17#..SED199101-199202

GRAY,TRIM1#

sub81570-20150

main81570-20150-04iAT17#,CT170,ST17#..DX,EXG,EXS,GX,SELS199101-199202

DARK BLUE,TRIM8#

sub81570-20150

main81570-20150-06iAT17#,CT170,ST17#..DX,EXG,EXS,GX,SELS199101-199202

SABLE,TRIM4#

sub81570-20150

main81570-20170iST17#..LB198911-199202

81977COVER, CENTER STOP LAMP

main81977-20060-03iAT17#,CT170,ST17#..SED199101-199202

GRAY,TRIM1#

sub81977-20060

main81977-20060-14iAT17#,CT170,ST17#..DX,EXG,EXS,GX,SELS199101-199202

DARK BLUE,TRIM8#

sub81977-20060

main81977-20060-16iAT17#,CT170,ST17#..DX,EXG,EXS,GX,SELS199101-199202

SABLE,TRIM4#

sub81977-20060

9016740010

main90167-40010

3 parts on this diagram · 1 diagram in section
