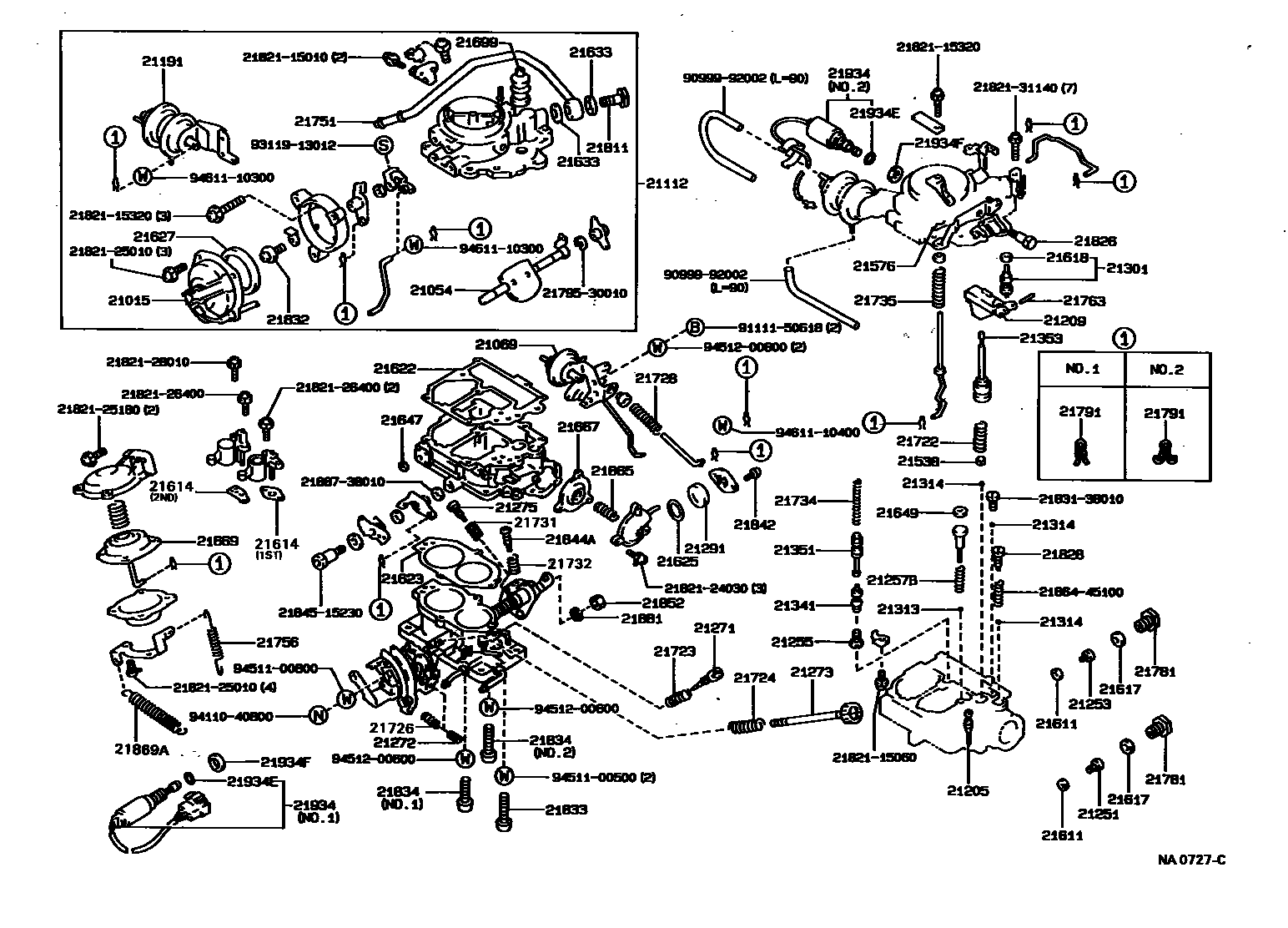

Toyota CORONA — CARBURETOR
21015HOUSING SUB-ASSY, COIL
21054SHAFT, CHOKE
21069DASH POT SUB-ASSY
21205JET SUB-ASSY, SLOW
21209FLOAT SUB-ASSY
21251JET, 1ST MAIN
21257BSPRING(FOR PUMP JET)
21271SCREW, IDLE ADJUSTING
21272SCREW, 1ST IDLE ADJUSTING
21273SCREW, THROTTLE ADJUSTING
21275SCREW, ADJUSTING
21291GLASS, LEVEL GAGE
21313BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT)
21341VALVE, POWER
21351PISTON, POWER
21538RETAINER, BALL CHECK
21576CLIP, PUMP STRAINER
21617GASKET, MAIN PASSAGE PLUG
21618GASKET, NEEDLE VALVE SEAT
21625GASKET, LEVEL GAGE
21627GASKET, COIL HOUSING
sub21627-28150
21633GASKET, UNION NIPPLE
21647GASKET, DIAPHRAGM HOUSING CAP
21649GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER)
21669DIAPHRAGM
21699BOOT(FOR PUMP PLUNGER)
21722SPRING, PUMP DAMPING
21723SPRING, IDLE ADJUSTING
21724SPRING, THROTTLE ADJUSTING
21726SPRING, 1ST IDLE ADJUSTING
21728SPRING, THROTTLE VALVE RETURN
21731SPRING, DASH POT OR POSITIONER ADJUSTING
21732SPRING, THROTTLE ADJUSTING
21734SPRING, POWER PISTON
21735SPRING, PUMP ARM
21781PLUG, MAIN PASSAGE(FOR CARBURETOR JET)
21811BOLT, UNION NIPPLE
21826SCREW, PUMP ARM SET
21828SCREW, 1ST IDLE SET
sub90079-12002
21832SCREW(FOR CHOKE LEVER ADAPTER SET)
21833SCREW, SET, NO.1(FOR CARBURETOR BODY SET)
21834SCREW, SET, NO.2(FOR CARBURETOR BODY SET)
21842SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21844ASCREW
21852NUT, THROTTLE LEVER SET
21869ASPRING(FOR THROTTLE)
21881WASHER, LOCK(FOR THROTTLE SHAFT)
21934SOLENOID, THROTTLE VALVE
sub21062-11242
sub21062-11232
sub21062-11371
sub21062-11424
sub21062-11381
sub21062-11434
sub21062-15501
sub21072-15230
21934ERING, O(FOR SOLENOID VALVE)
21934FGASKET
2179530010RING, RETAINER, NO.2(FOR HIGH SPEED SHAFT)
main21795-30010
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2182115060SCREW, 2ND THROTTLE VALVE SET
main21821-15060
2182115320SCREW, 2ND THROTTLE VALVE SET
main21821-15320
2182124030SCREW, 2ND THROTTLE VALVE SET
main21821-24030
2182125010SCREW, 2ND THROTTLE VALVE SET
main21821-25010
2182125180SCREW, 2ND THROTTLE VALVE SET
main21821-25180
2182126400SCREW, 2ND THROTTLE VALVE SET
main21821-26400
2182128010SCREW, 2ND THROTTLE VALVE SET
main21821-28010
2182131140SCREW, 2ND THROTTLE VALVE SET
main21821-31140
2183138010SCREW, POWER PISTON STOP
main21831-38010
2184515230SCREW(FOR LEVER SET)
main21845-15230
2186445100SPRING(FOR 1ST THROTTLE ARM)
main21864-45100
2188738010WASHER(FOR CONNECTING LINK SETTING)
main21887-38010
9099992002
main90999-92002
9111150618
main91111-50618
9311913012
main93119-13012
9411040800
main94110-40800
9451100500
main94511-00500
9451100800
main94511-00800
9451200600
main94512-00600
9461110300
main94611-10300
9461110400
main94611-10400
91 parts on this diagram · 3 diagrams in section
