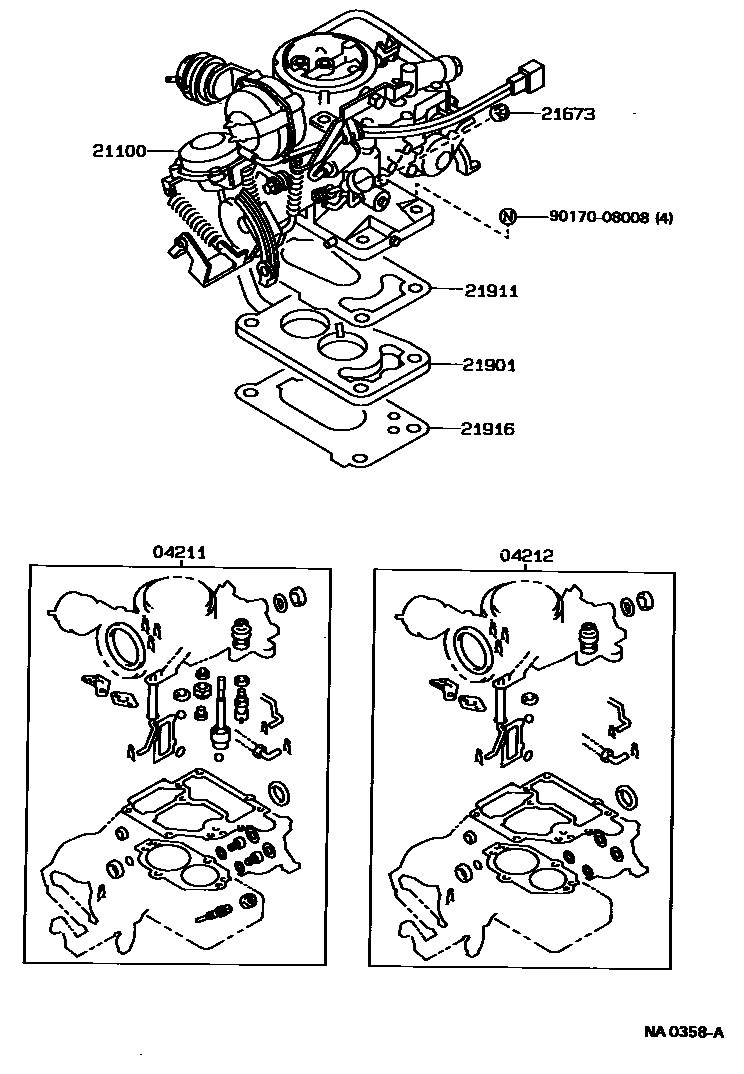

Toyota CORONA — CARBURETOR ASSEMBLY

0001 1 0002 1 0003 1

04211CARBURETOR KIT

main04211-11090i3E..ET176198911-198912

sub04211-11091

main04211-11091i3E..ET176198912-199211

main04211-16200i5AF..AT170..4FC198712-199002

sub04211-16201

main04211-16250i5AF..AT170..MTM198811-199002

sub04211-16251

04212GASKET KIT, CARBURETOR

main04212-11040i3E..ET176198806-198911

main04212-11060i3E..ET176198712-198806

sub04212-11061

main04212-11070i3E..ET176198911-198912

sub04212-11071

main04212-11071i3E..ET176198912-199211

main04212-16070i5AF..AT170198712-199002

sub04212-16071

21100CARBURETOR ASSY

main21100-11570i3E..ET176..4F198712-198806

sub21100-11572

main21100-11572i3E..ET176..4F198806-198911

main21100-11580i3E..ET176..3FC198712-198806

sub21100-11582

main21100-11582i3E..ET176..3FC198806-198911

main21100-11660i3E..ET176..4F198911-199211

main21100-11670i3E..ET176..3FC198911-199211

main21100-16281i5AF..AT170..MTM198712-198911

main21100-16291i5AF..AT170..4FC198712-198911

21673CAP, IDLE LIMIT

main21673-13280i5AF..AT170198712-199211

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

main21901-11030i3E..ET176198712-198911

main21901-11060i3E..ET176198911-199211

main21901-15091i5AF..AT170198712-198911

21911GASKET, CARBURETOR

main21911-11020i3E..ET176198712-198911

UPPER

sub21911-11021

main21911-11030i3E..ET176198712-198911

LOWER

sub21911-11031

main21911-15071i5AF..AT170198712-198912

sub21911-15072

21916GASKET, CARBURETOR, NO.2

main21916-15040i5AF..AT170198712-198912

sub21916-15041

9017008008

main90170-08008

8 parts on this diagram · 3 diagrams in section
