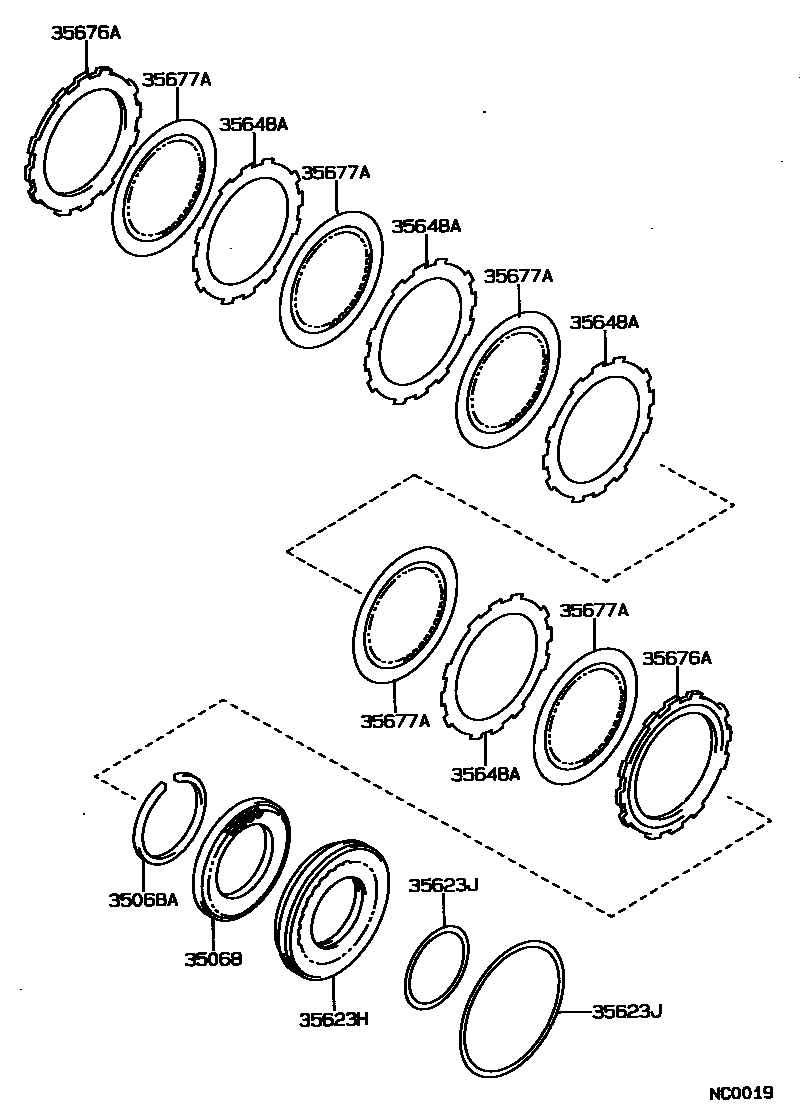

Toyota CORONA — BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-32010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

sub35068-20010

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-90001iAT175..4FC..GX;AT170,CT170,ET176,ST17#..ATM198712-199211

35623HPISTON, 1ST & REVERSE BRAKE

main35623-12010iCT17#..4FC198712-199211

main35623-20010iAT17#..4FC198808-199202

main35623-32010iET176,ST17#..ATM198712-199202

main35623-32020iET176..3FC198911-199211

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90301-94001iAT17#,CT17#,ET176,ST17#..ATM198712-199211

main90301-99022iAT17#,CT17#,ET176,ST17#..ATM198712-199211

main90301-99022iAT175..4FC..GX198901-198906

main90301-99022iAT175..4FC..GX198906-198911

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35648-32020iAT170,CT170..4FC198712-199211

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35676-32010iAT170,CT170,ET176,ST17#..ATM198712-199211

sub35676-12030

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35677-12030iAT170,CT17#..4FC198712-199202

sub35677-20070

main35677-12040iAT170..4FC199003-199211

sub35677-12060

main35677-32040iST17#..4FC198712-199211

7 parts on this diagram · 1 diagram in section
