Toyota CORONA — BRAKE MAINTENANCE KIT

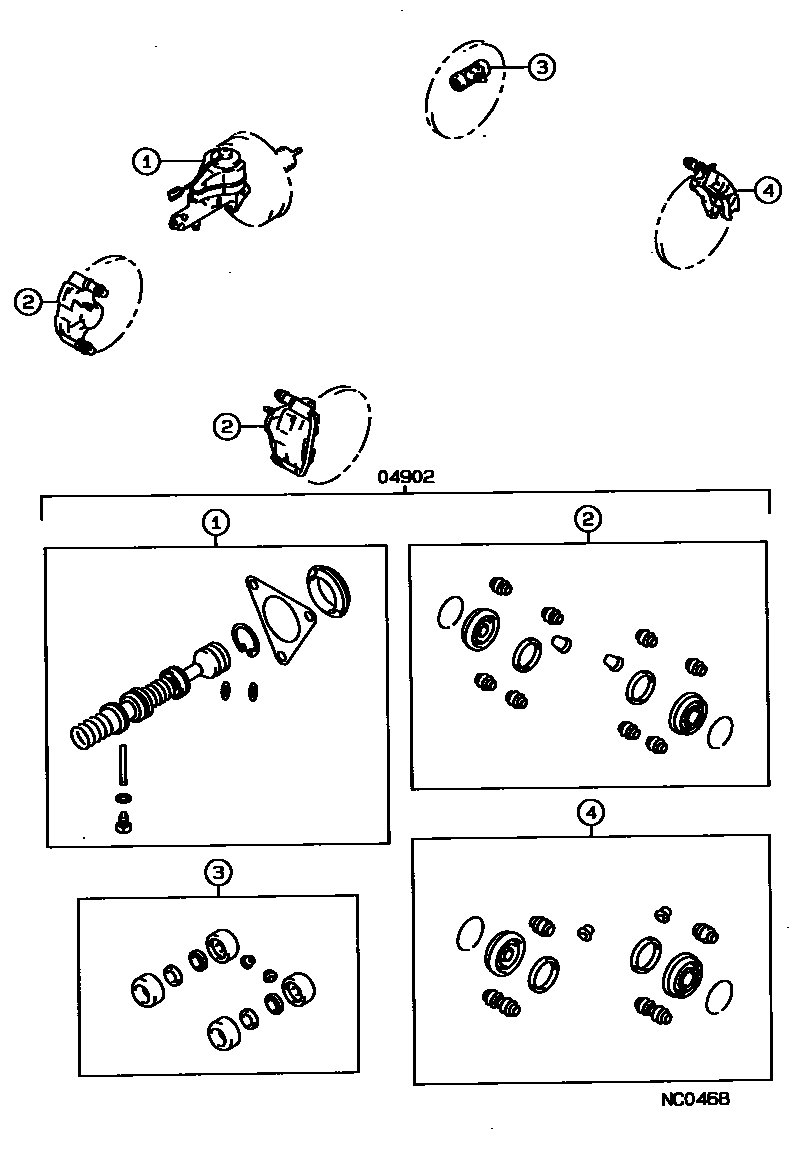

Parts diagram
04902MAINTENACE KIT, BRAKE
main04902-20210i198712-198911
main04902-20210i198911-199202
main04902-20220i198712-199202
main04902-20230i198712-199211
sub04902-20410
main04902-20240i198712-199202
main04902-20320i198911-199202
main04902-20320i198808-198911
main04902-20340i198808-199202
main04902-20370i198911-199202
sub04902-20500
main04902-20380i198911-199202
sub04902-32030
main04902-20390i198911-199202
main04902-20400i198911-199203
sub04902-20230
main04902-32030i198712-198911

1 parts on this diagram · 1 diagram in section
