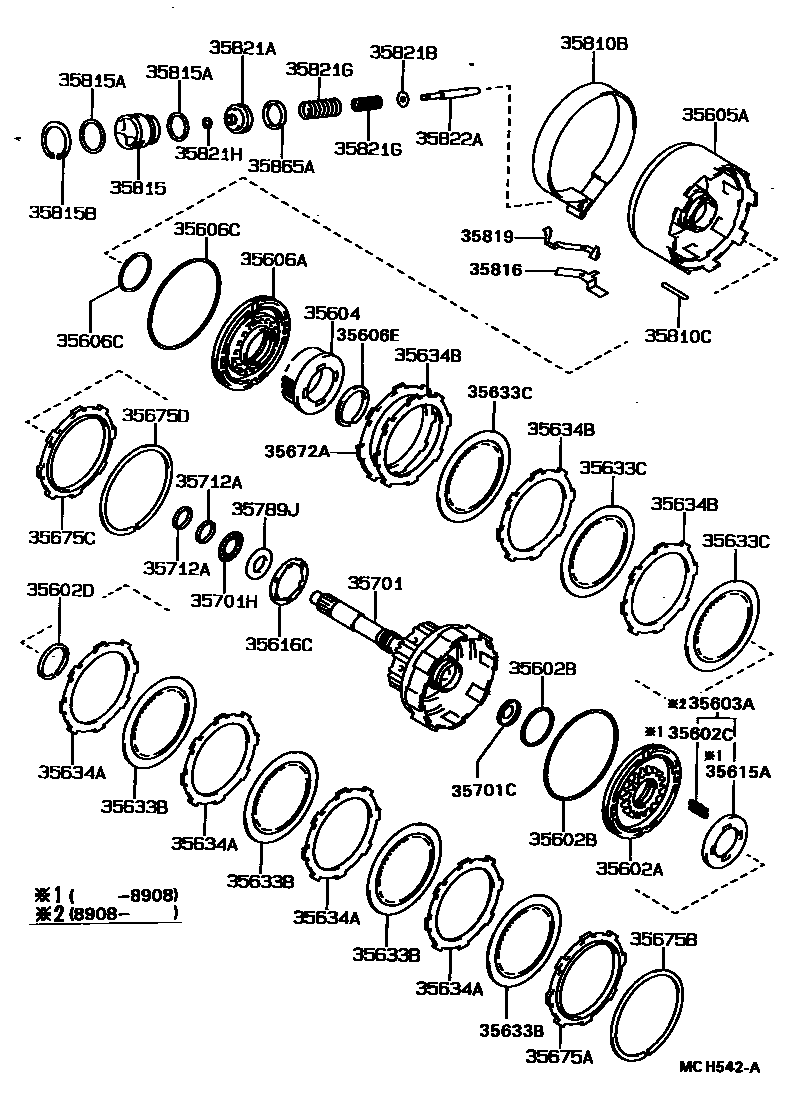

Toyota CORONA — BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

35602APISTON SUB-ASSY, FORWARD CLUTCH

main35602-32020iAT175..4FC..GX198811-198812

sub35602-32021

main35602-32020iAT170,CT170,ET176,ST17#..ATM198712-198811

sub35602-32021

main35602-32021iAT17#,CT170,ET176,ST17#..ATM198811-198908

main35602-32050iAT17#,CT17#,ET176,ST17#..ATM198908-199211

35602BRING, O (FOR FORWARD CLUTCH PISTON)

main90301-46002iAT17#,CT17#,ET176,ST17#..ATM198712-199211

main90301-99016iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35602CSPRING, COMPRESSION (FOR FORWARD CLUTCH PISTON RETURN)

main90501-11007iAT170,CT170,ET176,ST17#..ATM198712-198908

main90501-11007iAT175..4FC..GX198811-198908

35602DRING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRING)

main90520-44001iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN

main35603-32020iAT170,CT17#..4FC198908-199101

main35603-32030iAT175,ET176,ST17#..ATM199001-199211

35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN

main35604-32010iAT175..4FC..GX;AT170,CT170,ET176,ST17#..ATM198712-199211

main35604-32010iST170..4FC..GX199104-199202

35605ADRUM SUB-ASSY, DIRECT CLUTCH

main35605-17020iST17#..4FC..(EXG,EXS,G,GX,SELS,SXR,X,Z)199005-199202

sub35605-32060

main35605-20010iAT170,CT17#..4FC198803-199005

sub35370-20H00

sub35370-20H01

main35605-20020iAT170,CT17#,ET176..ATM199005-199211

main35605-32031iAT175,ST17#..4FC198712-199005

sub35370-32H00

sub35370-32H01

main35605-32040iAT170,CT170,ET176..ATM198712-198803

sub35605-20010

main35605-32060iST171..4FC..(GT,GTR)199005-199202

35606APISTON SUB-ASSY, DIRECT CLUTCH

main35606-20010iST170..4FC..GX199104-199202

main35606-20010iAT175..4FC198808-199211

main35606-32020iAT170,CT170,ET176,ST17#..ATM198712-198908

sub35606-20010

35606CRING, O (FOR DIRECT CLUTCH PISTON)

main90301-57188iAT17#,CT17#,ET176,ST17#..ATM198712-199211

main90301-99016iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35606ERING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRING)

main90520-52002iAT17#,CT17#,ET176..ATM;ST170..4FC..(EXS,SELS,X,Z)198712-199211

main90520-52002iST170..4FC..GX199104-199202

35615ASEAT, FORWARD CLUTCH PISTON RETURN SPRING

main35615-32010iAT170,CT170,ET176,ST17#..ATM198712-198908

main35615-32010iAT175..4FC..GX198811-198908

35616CWASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM)

main35616-32021iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35633-10020iCT17#,ET176..ATM198712-199112

main35633-12040iCT17#..4FC199106-199211

main35633-32050iET176..3FC198910-199211

35633CDISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35633-10020iAT175..4FC..GX;AT170,CT170,ET176..ATM198712-199101

main35633-20020iST171..4FC..(GT,GTR)198911-199202

sub35633-21020

main35633-20030iAT17#,CT17#,ET176..ATM199101-199211

sub35633-20031

main35633-32031iST17#..4FC198712-199202

sub35633-32032

35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)

main35634-32010iAT170,CT17#,ET176..ATM198712-199211

35634BPLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH)

main35634-32010iAT17#,CT170,ET176,ST17#..ATM198712-199211

main35634-32010iST170..4FC..GX199104-199202

35672APLATE, CLUTCH CUSHION (FOR DIRECT MULTIPLE DISC CLUTCH)

main35672-20010iAT175..4FC198808-199202

35675AFLANGE, FORWARD CLUTCH

main35635-50030iAT170,CT17#,ET176..ATM199101-199211

sub35635-30060

main35635-50040iAT17#,CT17#,ET176,ST17#..ATM199101-199211

sub35635-30070

main35675-12010iAT17#,CT17#,ET176,ST17#..ATM199101-199211

sub35675-12060

main35675-17010iAT17#,CT17#,ET176,ST17#..ATM199101-199211

sub35675-12040

main35675-32010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

sub35675-12050

main35675-32020iAT175,ST17#..4FC198712-199103

sub35675-32061

main35675-32060iAT170,CT17#,ET176..ATM199101-199211

sub35675-32020

35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)

main90521-99001iET176..3FC198712-199211

35675CFLANGE, DIRECT CLUTCH

main35675-12010iET176..3FC198712-199211

sub35675-12060

main35675-17010iAT175..4FC198808-199202

sub35675-12040

main35675-32010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

sub35675-12050

main35675-32020iAT170,CT17#,ET176..ATM198712-199211

sub35675-32061

main35675-32030iAT175,ST17#..4FC198712-199202

sub35675-12020

main35675-32060iCT176..4FC199202-199211

sub35675-32020

35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)

main90521-99001iAT17#,CT17#,ST17#..4FC198712-199211

35701SHAFT SUB-ASSY, INPUT

main35701-20010iST171..4FC..(GT,GTR)198911-199202

sub35701-32031

main35701-32021iAT170,CT17#,ET176..ATM198712-199211

sub35701-12070

main35701-32031iAT175,ST17#..4FC198712-199211

35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)

main35789-32040iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35701HBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT)

main90374-28005iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35712ARING, INPUT SHAFT OIL SEAL

main35712-32010iAT175..4FC..GX;AT170,CT170,ET176,ST17#..ATM198712-199211

35789JRACE, THRUST BEARING (FOR INPUT SHAFT FRONT)

main35789-32010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35810BBAND ASSY, 2ND COAST BRAKE

main35810-32020iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35810CPIN (FOR 2ND COAST BRAKE BAND)

main90250-07001iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35815COVER, 2ND COAST BRAKE

main35815-32010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35815ARING, O (FOR 2ND COAST BRAKE COVER)

main90301-41002iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35815BRING, HOLE SNAP (FOR 2ND COAST BRAKE COVER)

main90521-53001iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35816RETAINER, BRAKE BAND GUIDE PLATE

main35816-12010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35819PLATE, 2ND COAST BRAKE BAND GUIDE

main35819-12010iET176,ST17#..ATM198712-199211

main35819-12020iAT17#,CT17#..4FC198712-199211

35821APISTON, 2ND COAST BRAKE

main35821-32010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35821BWASHER, PLATE (FOR 2ND COAST BRAKE PISTON)

main90201-06557iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35821GSPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON)

main90501-20051iAT17#,CT17#,ET176,ST17#..ATM198712-199211

main90501-26024iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35821HRING, E (FOR 2ND COAST BRAKE PISTON)

main96160-00500iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35822AROD, 2ND COAST BRAKE PISTON

main35822-32010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

main35822-32020iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35865ARING, 2ND COAST BRAKE PISTON OIL SEAL

main35865-32010iAT17#,CT17#,ET176,ST17#..ATM198712-199211

39 parts on this diagram · 1 diagram in section
