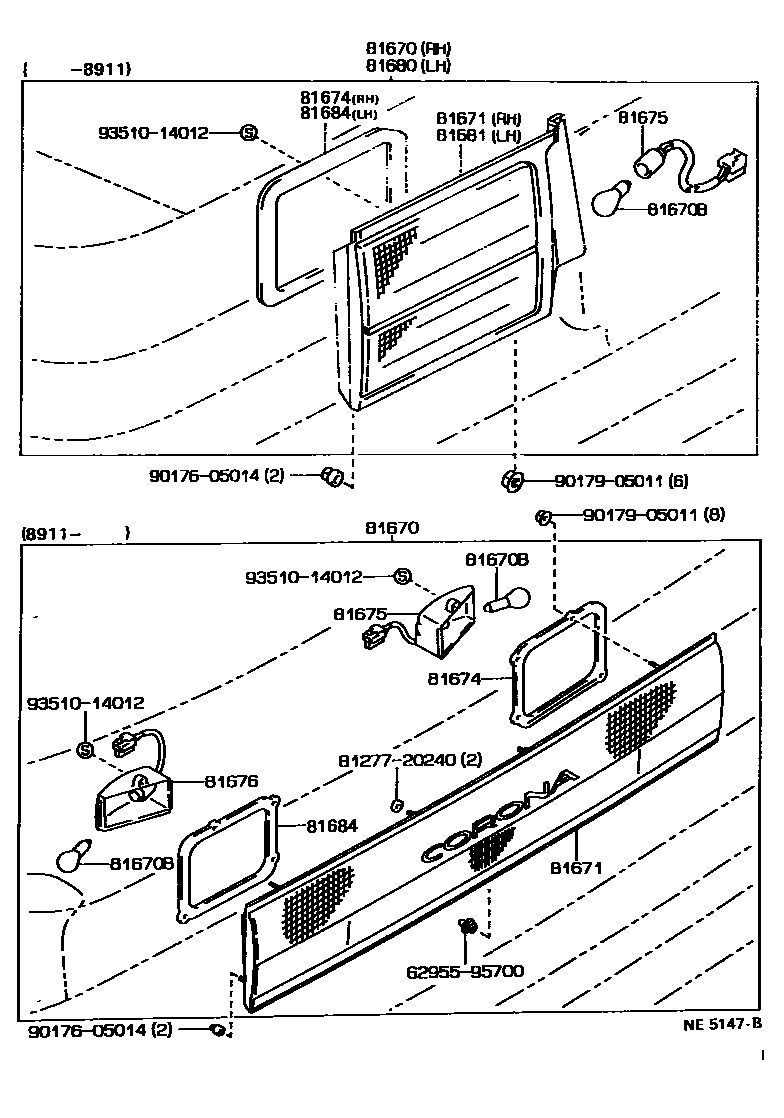

Toyota CORONA — BACK UP LAMP

81670LAMP ASSY, BACK-UP, RH

main81670-20110iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

main81670-20120iAT170..DX,STD198712-198911

main81670-20160iAT17#,CT170,ST17#..SED198911-199202

81670BBULB(FOR BACK-UP LAMP)

main99132-11210iAT17#,CT170,ST17#..SED198712-199202

81671LENS, BACK-UP LAMP, RH

main81671-20110iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

main81671-20120iAT170..DX,STD198712-198911

main81671-20160iAT17#,CT170,ST17#..SED198911-199202

81674GASKET, BACK-UP LAMP BODY, RH

main81674-20110iAT17#,CT170,ST17#..SED198712-199202

81675SOCKET & WIRE, BACK-UP LAMP

main81675-20110iAT17#,CT170,ST17#..SED198712-198911

main81675-20160iAT17#,CT170,ST17#..SED198911-199202

main81685-20070iAT17#,CT170,ST17#..SED198712-198911

81676RIM, BACK-UP LAMP, RH

main81676-20160iAT17#,CT170,ST17#..SED198911-199202

81680LAMP ASSY, BACK UP, LH

main81680-20070iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

main81680-20080iAT170..DX,STD198712-198911

81681LENS, BACK-UP LAMP, LH

main81681-20070iAT17#,CT170,ST17#..EXG,EXS,GTR,GX,MX,SXR198712-198911

main81681-20080iAT170..DX,STD198712-198911

81684GASKET, BACK UP LAMP BODY, LH

main81674-20110iAT17#,CT170,ST17#..SED198712-199202

6295595700SEAL, ROOF SIDE VENT

main62955-95700

8127720240SPACER, LICENSE PLATE LAMP RIM AND LENS

main81277-20240

9017605014

main90176-05014

9017905011

main90179-05011

9351014012

main93510-14012

14 parts on this diagram · 1 diagram in section
