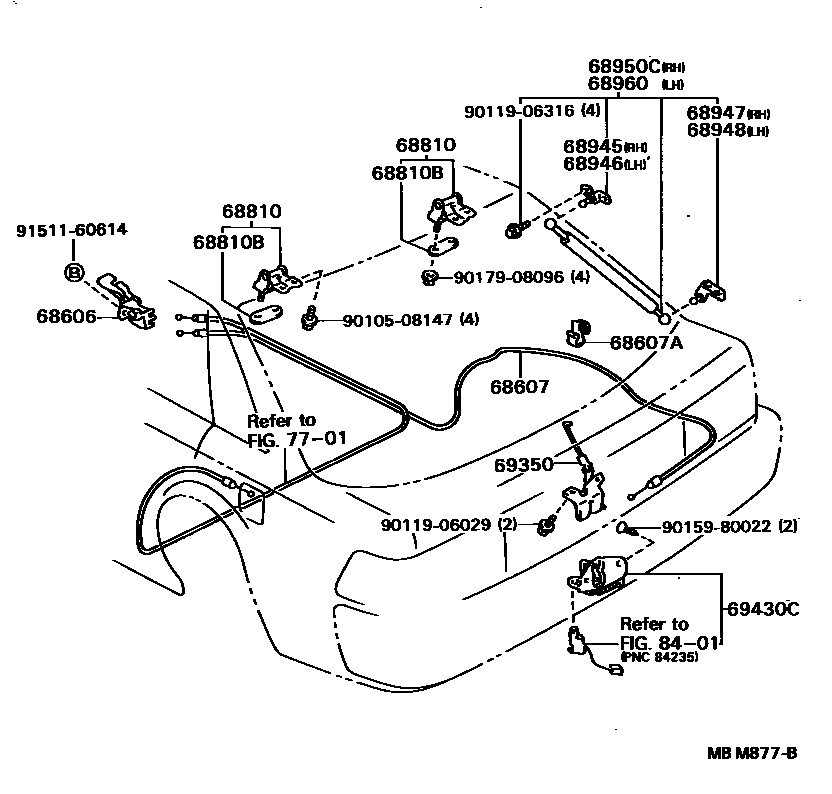

Toyota CORONA — BACK DOOR LOCK & HANDLE
68606LEVER SUB-ASSY, BACK DOOR LOCK OPEN
sub64606-20081
68607CABLE SUB-ASSY, BACK DOOR LOCK CONTROL
68607ACLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE)
68810HINGE ASSY, BACK DOOR, UPPER
68810BPAD, BACK DOOR HINGE
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
69350LOCK ASSY, BACK DOOR
7701
8401
9010508147
main90105-08147
9011906029
main90119-06029
9011906316
main90119-06316
9015980022
main90159-80022
9017908096
main90179-08096
9151160614
main91511-60614
21 parts on this diagram · 2 diagrams in section
