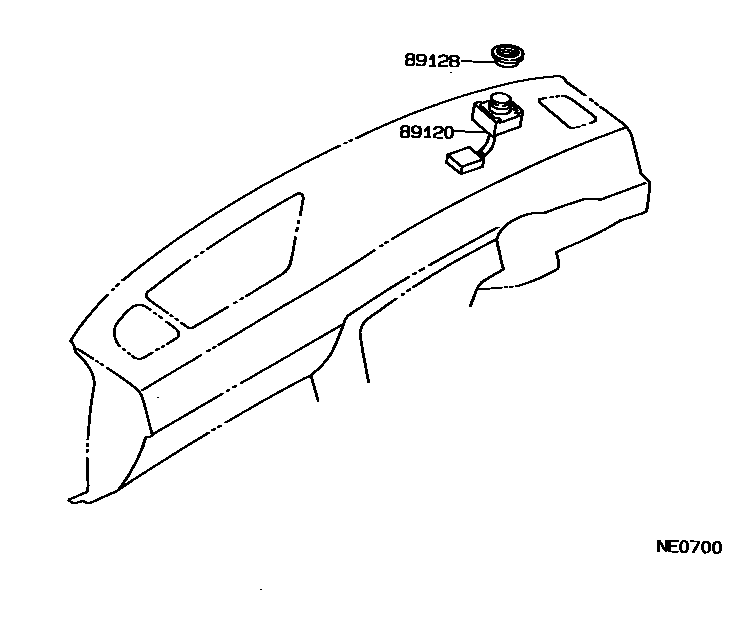

Toyota CORONA — AUTOMATIC LIGHT CONTROL SYSTEM (CONLIGHT)

89120SENSOR, AUTOMATIC LIGHT CONTROL

main89120-26010iST171..EXG,G198911-199202

main89120-32010iST170..EXS..CI198812

sub89120-26010

main89120-32010iST170..EXS..CI198812

sub89120-26010

main89120-32010iST171..EXG,G198712-198911

sub89120-26010

89128NUT, CONLIGHT SCANNER

main89128-32010-03iST170..EXS198812-198903

sub89128-32010

main89128-32010-03iST170..EXS198812-198903

sub89128-32010

main89128-32010-03iST171..EXG,G198712-199202

GRAY,TRIM1#

sub89128-32010

main89128-32010-04iST170..EXS198812-198903

sub89128-32010

main89128-32010-04iST170..EXS198812-198903

sub89128-32010

main89128-32010-04iST171..EXG,G198712-199202

DARK BLUE,TRIM8#

sub89128-32010

main89128-32010-06iST171..EXG,G198911-199202

BROWN,TRIM4#

sub89128-32010

main89128-32010-16iST170..X198812-198903

sub89128-32010

main89128-32010-16iST170..EXS198812-198903

sub89128-32010

main89128-32010-16iST171..EXG,G198712-198911

SABLE,TRIM4#

sub89128-32010

2 parts on this diagram · 1 diagram in section
