Toyota CORONA — ARMREST & VISOR

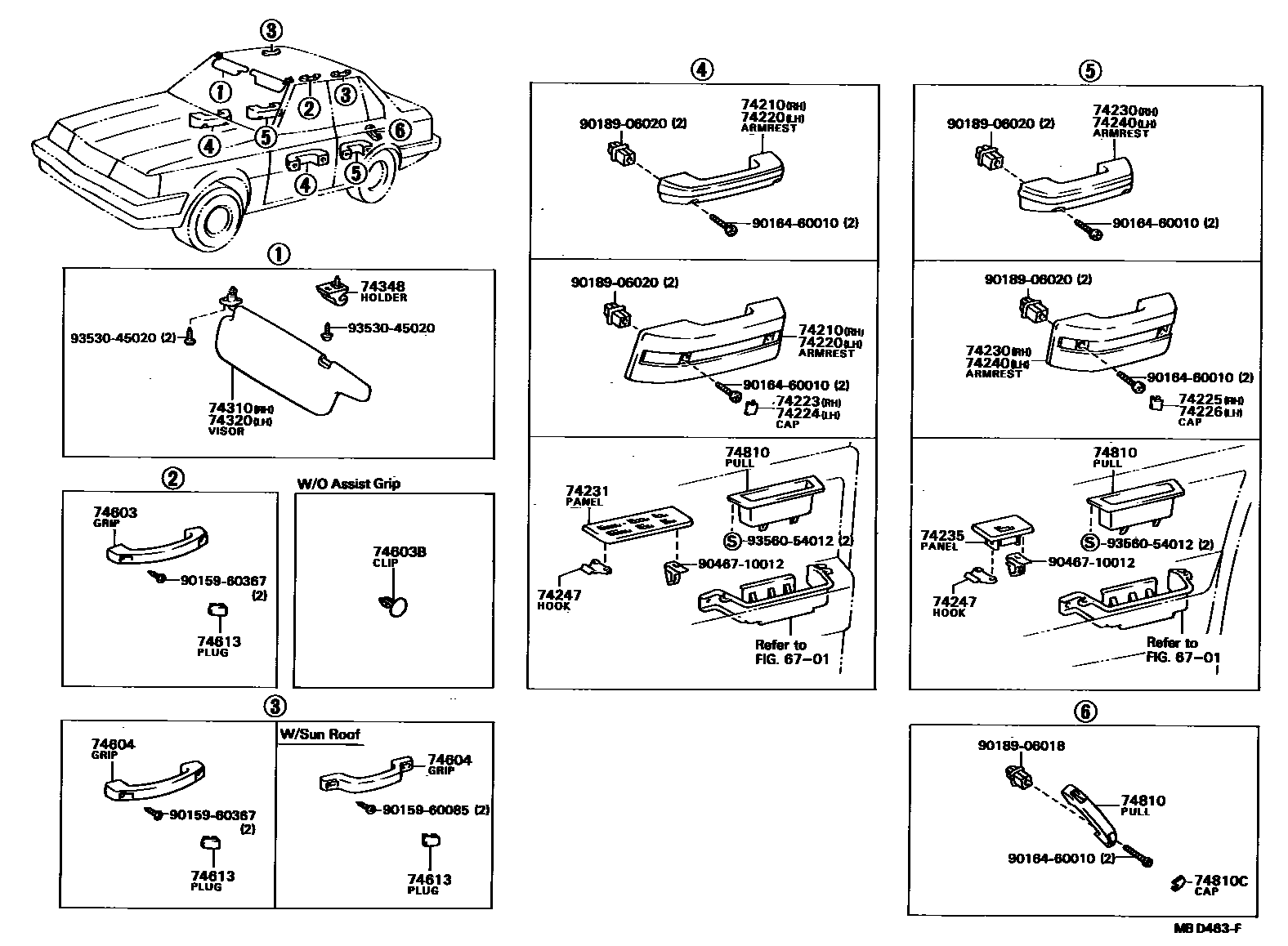

Parts diagram
6701FRONT DOOR PANEL & GLASS
→ Go to FIG 67-01
74210ARMREST ASSY, FRONT, RH
main74210-14080-01i198310-198508
BLACK,BLACK,TRIM2#
main74210-14080-04i198201-198310
BLUE,BLUE,TRIM8#
main74210-14080-16i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74210-20110-01i198210-198310
BLACK,BLACK,TRIM2#
main74210-20110-04i198201-198310
BLUE,BLUE,TRIM8#
main74210-20110-06i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74210-22060-01i198310-198404
BLACK,BLACK,TRIM2#
main74210-22060-04i198310-198404
BLUE,BLUE,TRIM8#
main74210-22060-06i198310-198404
DARK BROWN,BROWN,TRIM4#
main74210-22060-16i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74210-22061-01i198404-198612
BLACK,BLACK,TRIM2#
main74210-22061-04i198404-198712
BLUE,BLUE,TRIM8#
main74210-22061-36i198404-198712
DARK BROWN,DARK BROWN,TRIM4#
main74210-91D01-01i198310-198508
W/POWER WINDOW,BLACK,BLACK,TRIM2#
main74210-91D01-04i198201-198310
W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74210-91D01-06i198201-198310
W/POWER WINDOW,SADDLE BROWN,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-22060-01i198201-198310
BLACK,BLACK,TRIM2#
main74210-22060-04i198201-198310
BLUE,BLUE,TRIM8#
main74210-22060-06i198310-198504
DARK BROWN,BROWN,TRIM4#
main74210-22060-16i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74210-22061-01i198404-198712
BLACK,BLACK,TRIM2#
main74210-22061-04i198404-198712
BLUE,BLUE,TRIM8#
main74210-22061-06i198504-198712
DARK BROWN,BROWN,TRIM4#
main74220-14080-01i198201-198310
BLACK,BLACK,TRIM2#
main74220-14080-04i198310-198508
BLUE,BLUE,TRIM8#
main74220-14080-16i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74220-20110-01i198310-198712
BLACK,BLACK,TRIM2#
main74220-20110-04i198310-198712
BLUE,BLUE,TRIM8#
main74220-20110-06i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74220-91D01-01i198310-198508
W/POWER WINDOW,BLACK,BLACK,TRIM2#
main74220-91D01-04i198310-198508
W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74220-91D01-06i198201-198310
W/POWER WINDOW,SADDLE BROWN,BROWN,TRIM4#
74223CAP, DOOR ARMREST, RH
main74223-14020-01×2i198310-198508
BLACK,BLACK,TRIM2#
main74223-14020-04×2i198201-198310
BLUE,BLUE,TRIM8#
main74223-14020-16×2i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74223-20020-01×2i198201-198310
BLACK,BLACK,TRIM2#
main74223-20020-04×2i198310-198712
BLUE,BLUE,TRIM8#
main74223-20020-06×2i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74266-14030-01×2i198310-198508
W/POWER WINDOW,BLACK,BLACK,TRIM2#
main74266-14030-04×2i198201-198310
W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74266-14030-16×2i198201-198310
W/POWER WINDOW,SADDLE BROWN,BROWN,TRIM4#
74224CAP, DOOR ARMREST, LH
main74223-14020-01×2i198201-198310
BLACK,BLACK,TRIM2#
main74223-14020-04×2i198201-198310
BLUE,BLUE,TRIM8#
main74223-14020-16×2i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74223-20020-01×2i198310-198712
BLACK,BLACK,TRIM2#
main74223-20020-04×2i198310-198712
BLUE,BLUE,TRIM8#
main74223-20020-06×2i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74266-14030-01×2i198201-198310
W/POWER WINDOW,BLACK,BLACK,TRIM2#
main74266-14030-04×2i198310-198508
W/POWER WINDOW,BLUE,BLUE,TRIM8#
main74266-14030-16×2i198201-198310
W/POWER WINDOW,SADDLE BROWN,BROWN,TRIM4#
74225CAP, DOOR ARMREST, REAR RH
main74223-20020-01i198310-198712
RR,BLACK,BLACK,TRIM2#
main74223-20020-04i198201-198310
RR,BLUE,BLUE,TRIM8#
main74223-20020-06×2i198201-198310
RR,SADDLE BROWN,BROWN,TRIM4#
main74225-20010-01i198210-198310
FR,BLACK,BLACK,TRIM2#
main74225-20010-04i198201-198310
FR,BLUE,BLUE,TRIM8#
main74225-20010-06i198201-198310
FR,SADDLE BROWN,BROWN,TRIM4#
74226CAP, DOOR ARMREST, REAR LH
main74223-20020-01i198310-198712
RR,BLACK,BLACK,TRIM2#
main74223-20020-04i198201-198310
RR BLUE,BLUE,TRIM8#
main74223-20020-06i198201-198310
RR,SADDLE BROWN,BROWN,TRIM4#
main74226-20010-01i198210-198310
FR,BLACK,BLACK,TRIM2#
main74226-20010-04i198201-198310
FR,BLUE,BLUE,TRIM8#
main74226-20010-06i198201-198310
FR,SADDLE BROWN,BROWN,TRIM4#
74230ARMREST ASSY, REAR, RH
main74210-12110-01i198612-199804
BLACK,BLACK,TRIM2#
main74250-14030-01i198201-198712
BLACK,BLACK,TRIM2#
main74250-14030-04i198310-198712
BLUE,BLUE,TRIM8#
main74250-14030-06i198310-198712
DARK BROWN,BROWN,TRIM4#
main74250-14030-16i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74250-20020-01i198210-198310
BLACK,BLACK,TRIM2#
main74250-20020-04i198310-198712
BLUE,BLUE,TRIM8#
main74250-20020-06i198201-198310
SADDLE BROWN,BROWN,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-91D01-01i198201-198310
RH,BLACK,BLACK,TRIM2#
main74231-91D01-04i198201-198310
RH,BLUE,BLUE,TRIM8#
main74231-91D01-06i198201-198310
RH,SADDLE BROWN,BROWN,TRIM4#
main74231-91D03i198310-198508
RH
main74232-91D01-01i198210-198310
LH,BLACK,BLACK,TRIM2#
main74232-91D01-04i198201-198310
LH,BLUE,BLUE,TRIM8#
main74232-91D01-06i198201-198310
LH,SADDLE BROWN,BROWN,TRIM4#
main74232-91D02i198310-198508
LH
74235PANEL, REAR ARMREST BASE, UPPER
main74232-91D01-01i198210-198310
LH,BLACK,BLACK,TRIM2#
main74232-91D01-04i198201-198310
LH,BLUE,BLUE,TRIM8#
main74232-91D01-06i198201-198310
LH,SADDLE BROWN,BROWN,TRIM4#
main74232-91D02i198310-198508
LH,BLACK
main74271-20010-01i198210-198310
RH,BLACK,BLACK,TRIM2#
main74271-20010-04i198201-198310
RH,BLUE,BLUE,TRIM8#
main74271-20010-06i198201-198310
RH,SADDLE BROWN,BROWN,TRIM4#
main74271-20011i198310-198508
RH,BLACK
74240ARMREST ASSY, REAR, LH
main74210-12110-01i198612-199804
BLACK,BLACK,TRIM2#
main74250-14030-01i198612-198712
BLACK,BLACK,TRIM2#
main74250-14030-04i198201-198310
BLUE,BLUE,TRIM8#
main74250-14030-06i198310-198712
DARK BROWN,BROWN,TRIM4#
main74250-14030-16i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74260-20010-01i198310-198712
BLACK,BLACK,TRIM2#
main74260-20010-04i198310-198712
BLUE,BLUE,TRIM8#
main74260-20010-06i198201-198310
SADDLE BROWN,BROWN,TRIM4#
74247HOOK, FRONT DOOR ARMREST UPPER BASE
main74247-20010×4i198310-198508
74310VISOR ASSY, RH
main74310-14180-03i198201-198303
GRAY,GRAY,TRIM2#,8#
main74310-14180-08i198201-198303
IVORY,IVORY,TRIM4#
main74310-14200-03i198201-198303
FB,GRAY,GRAY,TRIM2#,8#
main74310-14200-08i198201-198303
FB,IVORY,IVORY,TRIM4#
main74310-14240-03i198201-198303
W/SUN ROOF,GRAY,GRAY,TRIM2#,8#
main74310-14240-08i198201-198303
W/SUN ROOF,IVORY,IVORY,TRIM4#
main74310-14250-03i198303-198310
GRAY,GRAY,TRIM2#,8#
main74310-14250-18i198310-198712
IVORY,IVORY,TRIM4#
main74310-14280-03i198303-198310
FB,GRAY,GRAY,TRIM2#,8#
main74310-14280-08i198303-198310
FB,IVORY,IVORY,TRIM4#
main74310-14300-03i198303-198310
W/SUN ROOF,GRAY,GRAY,TRIM2#,8#
main74310-14300-08i198303-198310
W/SUN ROOF,IVORY,IVORY,TRIM4#
main74310-14310-03i198408-198612
GRAY,GRAY,TRIM2#,8#
main74310-14330-03i198408-198712
FB,GRAY,GRAY,TRIM2#,8#
main74310-20550-03i198612-199804
GRAY,GRAY,TRIM2#
74320VISOR ASSY, LH
main74320-14250-03i198310-198612
GRAY,GRAY,TRIM2#,8#
main74320-14250-18i198303-198310
IVORY,IVORY,TRIM4#
main74320-14280-03i198201-198303
GRAY,GRAY,TRIM2#,8#
main74320-14280-08i198201-198303
IVORY,IVORY,TRIM4#
main74320-14330-03i198201-198303
FB,GRAY,GRAY,TRIM2#,8#
main74320-14330-08i198201-198303
FB,IVORY,IVORY,TRIM4#
main74320-14340-03i198310-198508
FB,GRAY,GRAY,TRIM2#,8#
main74320-14340-08i198303-198310
FB,IVORY,IVORY,TRIM4#
main74320-20510-03i198612-199804
GRAY,GRAY,TRIM2#
74348HOLDER, VISOR
main74348-12010-08×2i198201-198310
IVORY,IVORY,TRIM4#
main74348-12010-23×2i198310-198612
GRAY,GRAY,TRIM2#,8#
main74348-12010-33×2i198612-199804
GRAY,GRAY,TRIM2#
74603GRIP SUB-ASSY, ASSIST, FRONT
main74610-14030-03i198201-198508
GRAY,GRAY,TRIM2#,8#
main74610-14030-08i198201-198310
IVORY,IVORY,TRIM4#
main74610-20030-08i198310-198712
IVORY,IVORY,TRIM4#
main74610-20030-13i198201-198612
GRAY,GRAY,TRIM2#,8#
main74610-20030-43i198612-199804
SHADW GRAY,SHADOW GRAY,TRIM2#
74603BCLIP (FOR ASSIST GRIP)
main90467-07007-13×6i198201-198712
GRAY,GRAY,TRIM2#
74604GRIP SUB-ASSY, ASSIST, REAR
main74603-14020-03×2i198310-198508
W/SUN ROOF,GRAY,GRAY,TRIM2#,8#
main74603-14020-08×2i198201-198310
W/SUN ROOF,IVORY,IVORY,TRIM4#
main74610-10020-08×2i198201-198310
IVORY,IVORY,TRIM4#
main74610-10020-13×2i198201-198508
GRAY,GRAY,TRIM2#,8#
main74610-20030-08×2i198201-198310
IVORY,IVORY,TRIM4#
main74610-20030-13×2i198201-198310
GRAY,GRAY,TRIM2#,8#
main74610-20030-43×2i198612-199804
SHADW GRAY,SHADOW GRAY,TRIM2#
74613PLUG, ASSIST GRIP
main74617-14010-08×2i198201-198310
FR,W/SUN ROOF,IVORY,IVORY,TRIM4#; IVORY,IVORY,TRIM4#
main74617-14010-10×6i198612-199804
SHADW GRAY,SHADOW GRAY,TRIM2#
main74617-14010-13×6i198310-198612
GRAY,GRAY,TRIM2#,8#
main74617-22010-08×4i198201-198310
RR,W/SUN ROOF,IVORY,IVORY,TRIM4#
main74617-22010-23×4i198310-198508
RR,W/SUN ROOF,GRAY,GRAY,TRIM2#,8#
74810PULL ASSY, DOOR, INSIDE
main74801-15010-01×2i198201-198508
BLACK,BLACK,TRIM2#
main74801-15010-16×2i198310-198508
DARK BROWN,BROWN,TRIM4#
main74801-15010-26×2i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main74811-20010-01×4i198310-198508
BLACK,BLACK,TRIM2#
main74811-20010-04×4i198201-198310
BLUE,BLUE,TRIM8#
main74811-20010-06×4i198201-198310
SADDLE BROWN,BROWN,TRIM4#
74810CPLUG, DOOR PULL HANDLE
main74814-15010-01×4i198201-198508
BLACK,BLACK,TRIM2#
main74814-15010-16×4i198310-198508
DARK BROWN,BROWN,TRIM4#
main74814-15010-26×4i198201-198310
SADDLE BROWN,BROWN,TRIM4#
9015960085
main90159-60085
9015960367
main90159-60367
9016460010
main90164-60010
9018906018
main90189-06018
9018906020
main90189-06020
9046710012
main90467-10012
9353045020
main93530-45020
9356054012
main93560-54012

29 parts on this diagram · 2 diagrams in section

ARMREST & VISOR for Toyota CORONA

This section contains 52 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CORONA. Key components include: FRONT DOOR PANEL & GLASS, ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, CAP, DOOR ARMREST, RH, CAP, DOOR ARMREST, LH.
