Toyota CORONA — ANTENNA

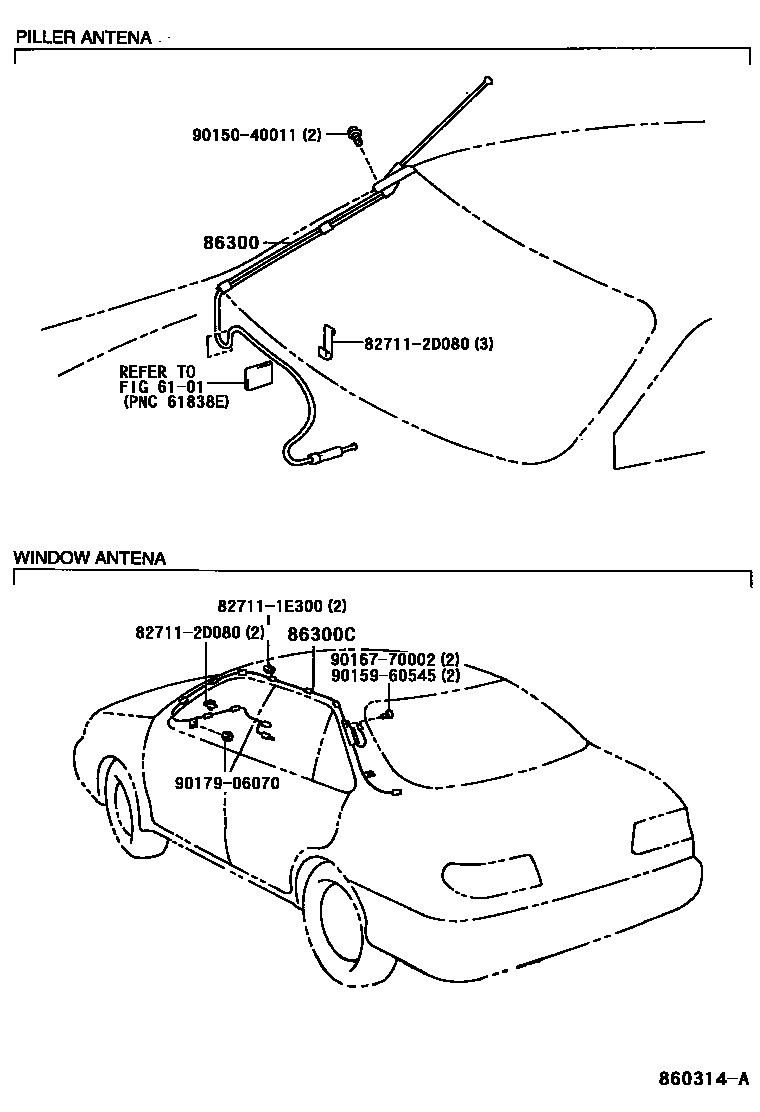

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

86300ANTENNA ASSY, W/HOLDER

main86300-2B270i199601-199712

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-2B280i199601-199712

main86300-2B281i199712

main86300-2B290i199601-199712

main86300-2B330i199712

main86300-2B410i200105

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300

827112D080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2D080

9015040011

main90150-40011

9015960545

main90159-60545

9016770002

main90167-70002

9017906070

main90179-06070

9 parts on this diagram · 2 diagrams in section

ANTENNA for Toyota CORONA

This section contains 11 genuine Toyota parts for the ANTENNA system of the Toyota CORONA. Key components include: SIDE MEMBER, ANTENNA ASSY, TELEVISION, CORD SUB-ASSY, ANTENNA, ANTENNA ASSY, W/HOLDER, ANTENNA ASSY, AMPLIFIER, NO.2.
