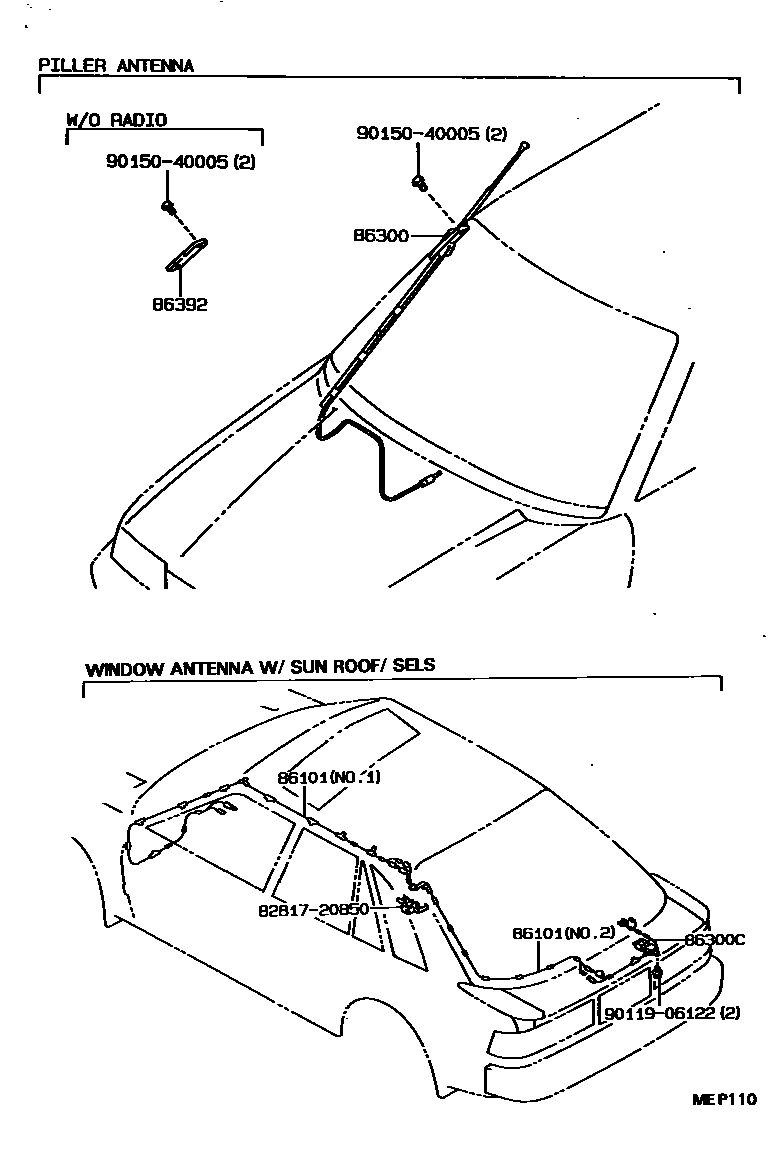

Toyota CORONA — ANTENNA

0001 1 0002 1 0003 1

86101CORD SUB-ASSY, ANTENNA

main86101-20270iST171..5F..GT;ST171..LB..4FC198712-199202

main86101-20270iCT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR198712-199202

main86101-20280iST17#..G,GT,X198712-199202

main86101-20290iST17#..G,GT,X198712-199202

main86101-20300iST171..5F..GT;ST171..LB..4FC198712-199202

86300ANTENNA ASSY, W/HOLDER

main86300-20500iST171..4FC..EXG199005-199007

main86300-20500iAT175..GX,SELS;AT170,CT17#,ET176,ST170..DX,GX,MX,SELS,STD,Z198712-199211

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-20510iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,GTR,SXR198712-199202

main86300-20520iCT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR198712-199202

main86300-20530iST170..SELS199104-199202

main86300-20530iCT170,ST17#..EXG,EXS,GTR,SXR198712-199202

main86300-20540iST17#..EXG,EXS,SXR198712-199202

main86300-20550iST17#..G,GT,X198712-199202

main86300-20560iST171..5F..GT;ST171..LB..4FC198712-199202

main86300-20560iST171..5F..GT;ST171..LB..4FC198712-198911

86392ORNAMENT, ANTENNA

main86392-20090iAT170,ET176..STD198712-199008

8281720850PROTECTOR, WIRING HARNESS, NO.1

main82817-20850

9011906122

main90119-06122

9015040005

main90150-40005

7 parts on this diagram · 3 diagrams in section
