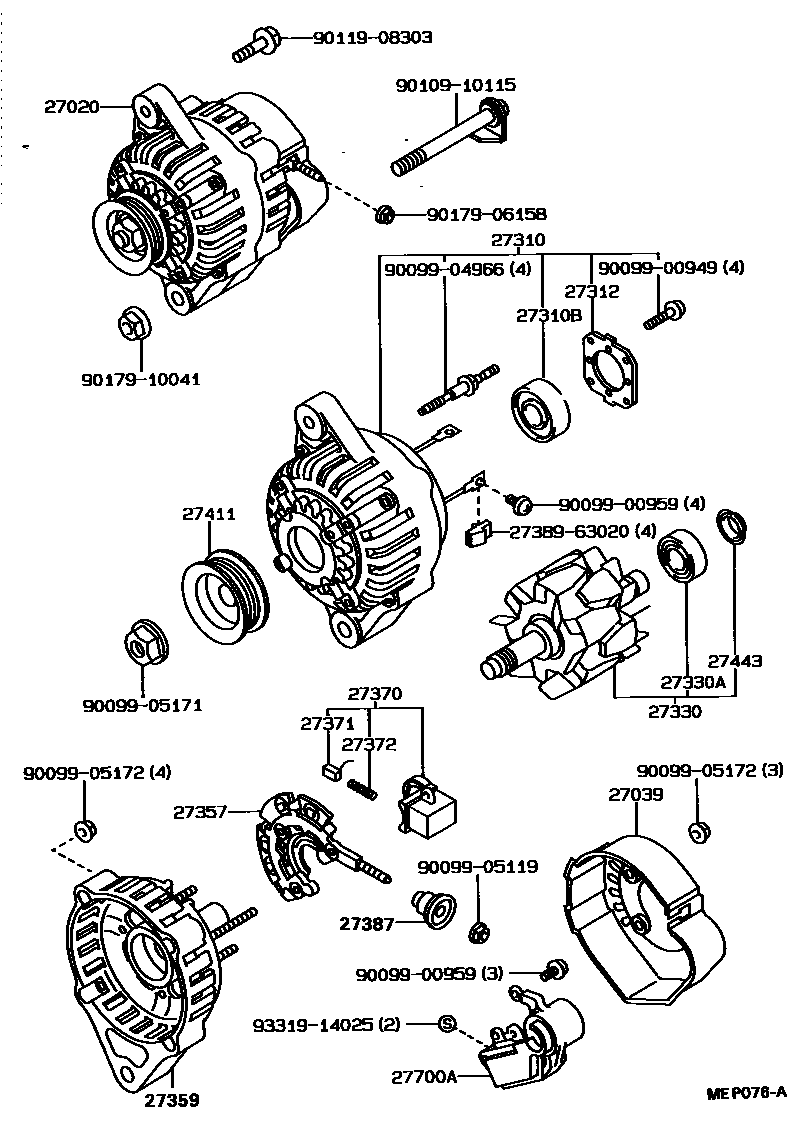

Toyota CORONA — ALTERNATOR

0001 112V 60A,70A 0004 112V 70A 0006 112V 60A 0007 112V 50A 0008 112V 60A 0011 112V 70A 0012 112V 70A

27020ALTERNATOR ASSY

main27020-64170i2C..CT170..4FC198712-198911

main27020-64180i2C..CT17#..5F198712-198911

main27020-64220i2C..CT17#198911-199101

main27020-64221i2C..CT17#199101-199211

main27020-64310i2C..CT170;2C..CT176..5F199106-199211

main27060-10061i3E..ET176..4F..DX198712-199211

main27060-10061i3E..ET176..4F198911-199211

main27060-10100i3E..ET176..4F198712-199211

main27060-11030i3E..ET176..3FC198911-199111

sub27060-11120

main27060-11080i3E..ET176..4F198807-199108

sub27060-10100

main27060-11120i3E..ET176..3FC199111-199211

sub27060-11200

main27060-16160i5AF..AT170..MTM198712-198911

main27060-16170i4AFE,5AFE..AT17#..MTM198712-199202

main27060-16220i5AF..AT170..4FC198803-198805

main27060-16230i4AFE,5AF#..AT17#..4FC198805-199202

main27060-74020i3S#,4SFI..ST17#198712-198911

sub27060-74090

main27060-74050i3SGE..ST171..4FC198808-198911

main27060-74080i3SFE,4SFI..ST17#..4FC198804-198911

sub27060-74100

main27060-74110i3S#,4SFE..ST17#..4FC198911-199009

sub27060-74280

main27060-74190i3S#,4SFE..ST17#..5F198911-199202

sub27060-74140

main27060-74280i3S#,4SFE..ST17#..4FC199009-199202

sub27060-74221

27039COVER, ALTERNATOR REAR END

main27039-15170i4AFE,5AFE..AT17#..MTM199109-199202

sub27039-15171

main27039-42010i4AFE,5AF,3S#,4SFI..AT17#,ST17#..4FC198804-199202

sub27039-16310

main27039-70081i3S#,4SFE..ST17#..5F198911-199109

sub27039-74200

main27039-72010i3E..ET176..3FC198712-199211

sub27039-15170

main27039-72110i3E..ET176..4F198712-199211

main27039-72110i3E..ET176..3FC198712-198911

main27039-72150i3E..ET176..4F198712-199211

main27039-74140i3S#,4SFE..ST17#..4FC198911-199202

sub27039-74260

main27039-74200i3S#,4SFE..ST17#..5F199109-199202

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-10021i3E..ET176..4F198911-199105

sub27310-10070

main27310-10090i3E..ET176..4F198712-199211

main27310-11110i3E..ET176..4F199105-199211

main27310-16081i3E..ET176..3FC198712-198911

sub27310-11110

main27310-16103i3E..ET176..3FC198911-199211

main27310-16190i5AF..AT170198712-199202

main27310-16260i4AFE,5AF#..AT17#..4FC198805-199202

main27310-42010i3SGE..ST171..4FC198808-198911

main27310-42050i3SFE,4SFI..ST17#..4FC198804-199202

sub27310-74480

main27310-64060i2C..CT17#198712-199211

main27310-70100i3S#,4SFI..ST17#198712-199202

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2C..CT17#198712-199211

main90099-10159i3E..ET176..3FC198712-198911

main90099-10159i3E..ET176..4F198712-199105

main90099-10160i5AF,3SFE,4SFI..AT170,ST17#..4FC198804-199202

sub90099-10219

main90099-10170i3E..ET176..4F198712-199105

sub90099-10198

main90099-10178i3E..ET176..3FC;4AFE,5AFE,3S#,4SFE..AT17#,ST17#..MTM198712-199211

main90099-10192i4AFE,5AFE..AT17#..4FC199105-199202

main90099-10198i3E..ET176..4F199105-199211

sub90099-10229

main90099-10199i3E..ET176..4F199105-199211

27312PLATE, RETAINER

main27312-42010i3SFE,4SFI..ST17#..4FC198804-199202

main27312-57060i2C..CT17#198712-199211

main27312-70200i3SFE,4SFI..ST17#..5F;5AF,3SGE..AT170,ST171198712-199211

main27312-72100i3E..ET176..4F198712-199211

main27312-72100i3E..ET176..3FC198712-198911

main27312-72120i3E..ET176..4F198712-199211

27330ROTOR ASSY, ALTERNATOR

main27330-10021i3E..ET176..4F198712-199211

main27330-10021i3E..ET176..3FC198712-198911

main27330-42010i5AF,3SFE,4SFI..AT170,ST17#..4FC198804-199012

sub27330-76030

main27330-64170i2C..CT17#198712-199101

main27330-64171i2C..CT17#199101-199211

sub27330-54270

main27330-72101i5AF,3S#,4SFI..AT170,ST17#198712-199211

main27330-72150i3E..ET176..4F198712-199211

main27330-76030i4AFE,5AFE,3S#,4SFE..AT17#,ST17#..4FC199012-199202

sub27330-16390

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i3E..ET176..3FC;4AFE,5AF#,3S#,4SF#..AT17#,ST17#198712-199211

main90099-10154i3E..ET176..4F198712-199211

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-62040i4AFE,5AFE..AT17#..4FC199112-199202

sub27357-74160

main27357-63020i3SGE..ST171;5AF..AT170..4FC;3SFE,4SFI..ST17#..5F198712-199211

main27357-63040i3E..ET176..4F198712-199211

main27357-63040i3E..ET176..3FC198712-198911

main27357-63060i5AF..AT170..MTM198712-198911

main27357-70081i3S#,4SFE..ST17#..5F198911-199202

main27357-72150i3E..ET176..4F198712-199211

main27357-74050i4AFE,5AF,3S#,4SFI..AT17#,ST17#..4FC198804-199112

sub27357-74160

main27357-74120i3S#,4SFE..ST17#..4FC199112-199202

sub27357-74290

main27357-74140i3S#,4SFE..ST17#..4FC198911-199112

sub27357-74290

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16081i3E..ET176..3FC198712-198911

main27359-16081i3E..ET176..4F198712-199211

main27359-16151i5AF..AT170198712-199202

sub27359-16152

sub27384-16380

main27359-16180i3E..ET176..3FC198911-199211

sub27359-16181

sub27384-16380

main27359-16260i4AFE,5AF#..AT17#..4FC198805-199202

sub27359-64500

main27359-42010i3S#,4SFI..ST17#..4FC198804-198911

sub27359-74330

main27359-43160i3S#,4SFI..ST17#198712-198911

sub27359-43161

sub27384-16380

main27359-72150i3E..ET176..4F198712-199211

main27359-74130i3S#,4SFE..ST17#..5F198911-199202

sub27359-74131

sub27384-16380

main27359-74140i3S#,4SFE..ST17#..4FC198911-199202

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-16011i3E..ET176198712-199105

sub27370-54450

main27370-42010i3SFE,4SFI..ST17#..4FC198804-199202

sub27370-75060

main27370-54450i3E..ET176199105-199211

sub27370-58320

main27370-63021i3SGE..ST171;5AF,3SFE,4SFI..AT170,ST17#..MTM198712-199202

sub27370-70300

main27370-70300i4AFE,5AFE..AT17#..MTM199105-199202

sub27370-35060

main27370-75060i4AFE,5AFE..AT17#..4FC199105-199202

27371BRUSH, ALTERNATOR

main27371-54412i2C..CT17#199106-199211

main27371-56070i2C..CT17#198712-199106

sub27371-54412

main27371-63020i5AF..AT170..4FC198712-199202

sub27371-70300

main27371-70300i4AFE,5AFE,3E..AT17#,ET176..3FC,4F,5F199105-199211

27372SPRING, ALTERNATOR BRUSH

main27372-56070i2C..CT17#198712-199211

main27372-72100i3S#,4SFI..ST17#;5AF,3E..AT170,ET176..3FC,4F,5F198712-199202

sub27372-63020

27387INSULATOR, TERMINAL

main27387-10080i3E..ET176..4F198712-199211

main27387-42020i4AFE,5AF,3S#,4SFI..AT17#,ST17#..4FC198804-199202

main27387-54310i2C..CT170;2C..CT176..5F199106-199211

main27387-56070i2C..CT17#198712-198903

main27387-64170i2C..CT17#198903-199211

main27387-70110i3S#,4SFE..ST17#..5F198911-199202

sub27387-70111

main27387-70170i3E..ET176..3FC;4AFE,5AFE..AT17#..MTM198712-199211

main27387-70170i3E..ET176..4F198712-199211

main27387-74140i3S#,4SFE..ST17#..4FC198911-199202

27411PULLEY, ALTERNATOR

main27411-10051i3E..ET176..4F198712-199211

main27411-10070i3E..ET176..4F198712-199006

main27411-10070i3E..ET176..3FC198712-198911

main27411-16180i5AF..AT170..4FC;3S#,4SFI..ST17#198712-199202

main27411-16190i5AF..AT170198712-198808

sub27411-16191

main27411-16191i5AF..AT170..MTM198808-198911

main27411-16260i4AFE,5AFE..AT17#..4FC199012-199202

sub27411-16270

main27411-16270i4AFE,5AFE..AT17#..4FC198805-199012

main27411-64060i2C..CT17#..5F198712-198911

main27411-64160i2C..CT170..4FC198712-198911

main27411-64220i2C..CT17#198911-199211

main27411-65010i3E..ET176..3FC198911-199211

main27411-70261i3E..ET176..4F199006-199211

main27411-74050i3S#,4SFE..ST17#..4FC198808-199202

main27411-74070i3SFE,4SFI..ST17#..4FC198804-198911

27443COVER, ALTERNATOR BEARING

main27443-63020i5AF,3E..AT170,ET176198712-199211

27700AREGULATOR ASSY, GENERATOR

main27700-10050i3E..ET176..4F198712-199108

sub27700-10080

main27700-10080i3E..ET176..4F198804-199111

sub27700-66010

main27700-11020i3E..ET176..4F199111-199211

main27700-11030i3E..ET176..3FC199111-199211

sub27700-72090

main27700-11030i3E..ET176..4F199006-199211

sub27700-72090

main27700-16010i3S#,4SFE..ST17#198712-199009

sub27700-66020

main27700-63021i3E..ET176..3FC;5AF..AT170..MTM198712-198812

sub27700-70030

main27700-63021i3E..ET176..4F198712-198812

sub27700-70030

main27700-64040i2C..CT176..4FC198712-199211

sub27700-64110

main27700-64110i2C..CT170;2C..CT176..5F199106-199211

main27700-70030i4AFE,5AFE..AT17#198712-199202

main27700-70030i3E..ET176..4F198812-199006

main27700-74010i3S#,4SFE..ST17#199009-199202

sub27700-72090

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010910115

main90109-10115

9011908303

main90119-08303

9017906158

main90179-06158

9017910041

main90179-10041

9331914025

main93319-14025

28 parts on this diagram · 7 diagrams in section
