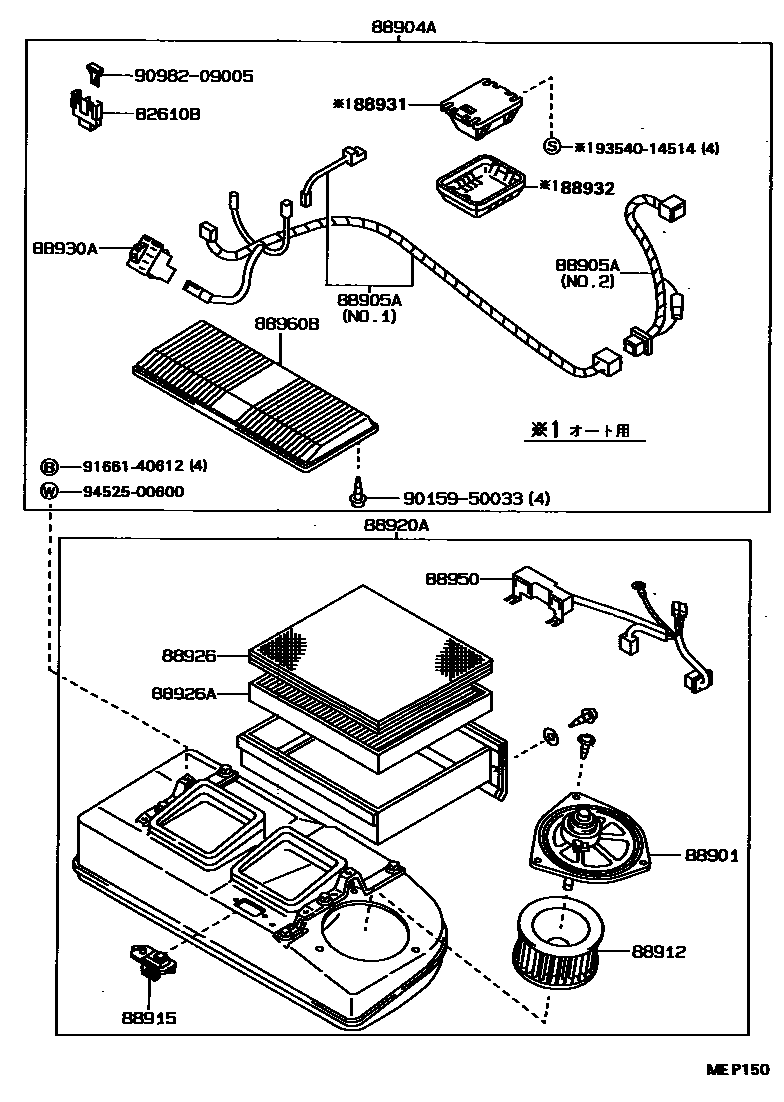

Toyota CORONA — AIR PURIFIER OR ION GENERATOR

82610BBLOCK ASSY, FUSE

main82610-32010iAT17#,CT170,ST17#..SED198712-199202

88901MOTOR SUB-ASSY, AIR PURIFIER

main88901-22020iAT17#,CT170,ST17#..SED198712-199202

88904AACCESSORY SUB-ASSY, AIR PURIFIRE

main88904-20010-03iAT175..GX,MX;ST170..MX,SELS;AT170,CT170..(MX,SELS)..(CBR,DSL)198712-199005

SHADOW GRAY,TRIM1#

sub88904-20011

main88904-20010-04iST171..5F..G;AT170,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

DARK BLUE

sub88904-20011

main88904-20010-04iAT175;AT170,CT170,ST17#..EXG,EXS,MX198712-198911

DARK BLUE,TRIM8#

sub88904-20011

main88904-20010-06iAT175..GX198712-199005

SABLE,TRIM4#

sub88904-20011

main88904-20010-14iCT170,ST170..SELS198911-199005

DARK BLUE,TRIM8#

sub88904-20011

main88904-20020-03iAT170,CT170,ST17#..EXG,EXS,GTR,SXR198911-199005

SHADOW GRAY,TRIM1#

sub88904-20021

main88904-20020-03iAT170,CT170,ST17#..EXG,EXS,GTR,SXR198712-199005

sub88904-20021

main88904-20020-04iAT170,CT170,ST17#..EXG,EXS198712-198808

sub88904-20021

main88904-20020-04iST171..5F..G;AT170,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

sub88904-20021

main88904-20020-06iAT175..EXS198911-199005

SABLE,TRIM4#

sub88904-20021

main88904-20020-06iAT170,CT170,ST17#..EXG,EXS198712-199005

sub88904-20021

main88904-20020-14iAT175..EXS198911-199005

DARK BLUE,TRIM8#

sub88904-20021

main88904-20020-14iAT175..EXS198911-199005

sub88904-20021

main88904-20030-03iAT170,CT170,ST170..DX,GX198712-199202

SHADOW GRAY,TRIM1#

sub88904-20031

main88904-20030-04iAT170,CT170,ST170..DX,GX198712-198911

DARK BLUE,TRIM8#

sub88904-20031

main88904-20030-06iAT170,CT170,ST170..DX,GX198712-199005

SABLE,TRIM4#

sub88904-20031

main88904-20030-14iAT170,CT170,ST170..DX,GX198911-199005

DARK BLUE,TRIM8#

sub88904-20031

main88904-20120-03iAT17#,CT170,ST170..SELS198912-199202

GRAY,TRIM1#

sub88904-20121

main88904-20120-03iAT175..SELS198911-199005

sub88904-20121

main88904-20120-06iAT175..SELS198911-199005

sub88904-20121

main88904-20120-06iAT175..SELS198912-199005

SABLE,TRIM4#

sub88904-20121

main88904-20120-14iAT175..SELS198912-199005

DARK BLUE,TRIM8#

sub88904-20121

main88904-20120-14iAT170,CT170,ST170..SELS198911-199005

sub88904-20121

88905AWIRE SUB-ASSY, AIR PURIFIER, NO.2

main88905-20010iAT175..GX;AT170,CT170,ST170..DX,GX,MX,STD198712-199202

main88905-20020iCT170,ST170..SELS198712-199202

main88908-24010iAT175..SELS198712-199202

main88908-24020iAT175..GX;AT170,CT170,ST170..DX,GX,MX,STD198712-199202

88912FAN, AIR PURIFIER

main88912-22010iAT17#,CT170,ST17#..SED198712-199202

88915RESISTOR, AIR PURIFIER

main88915-22010iAT17#,CT170,ST17#..SED198712-199202

88920APURIFIER ASSY, AIR

main88920-20010iAT175..GX;AT170,CT170,ST170..DX,GX,MX,STD198712-199202

main88920-20020iCT170,ST170..SELS198712-199202

88926FILTER, AIR PURIFIER

main88926-24010iAT17#,CT170,ST17#..SED198712-199202

sub88926-24030

88926AODOR, CARTRIDGE

main88927-24010iAT17#,CT170,ST17#..SED198712-199202

sub88926-24030

88930ASWITCH ASSY, AIR PURIFIER

main88930-24010iAT17#,CT170,ST17#..EXG,EXS,GTR,SELS,SXR198712-199202

main88930-24020iAT175..GX;AT170,CT170,ST170..DX,GX,MX,STD198712-199202

88931SENSOR, SMOKE

main88931-22021iAT175..EXS,MX,SELS;AT170,CT170,ST17#..EXG,EXS,GTR,SELS,SXR198712-199202

88932COVER, SMOKE SENSOR

main88932-20020-03iAT175..SELS;AT170,CT170,ST17#..EXG,EXS,GTR,SELS,SXR198712-199202

LIGHT GRAY,TRIM1#

main88932-20020-03iST171..5F..G198911-199202

LIGHT GRAY

main88932-20020-04iST171..5F..G;AT170,CT170,ST17#..EXG,EXS,GTR,SXR198911-199202

LIGHT BLUE

main88932-20020-04iAT175..MX;AT170,CT170,ST17#..EXG,EXS198712-198911

LIGHT BLUE,TRIM8#

main88932-20020-06iCT170,ST170..EXS;AT170,ST171..EXG,EXS,SELS198712-199202

SABLE,TRIM4#

main88932-20020-06iST171..5F..G;ST171..GTR,SXR198911-199202

SABLE

main88932-20020-14iAT17#,CT170,ST170..SELS198911-199202

DARK BLUE,TRIM8#

88950AMPLIFIER ASSY, AIR PURIFIER

main88950-24010iCT170,ST170..SELS198712-199202

main88950-24020iAT175..GX;AT170,CT170,ST170..DX,GX,MX,STD198712-199202

88960BRESISTOR ASSY, AIR PURIFIRE

main88960-20030-03iAT170,CT170,ST170..DX,GX,STD198712-199202

SHADOW GRAY,TRIM1#

main88960-20030-03iAT170,CT170,ST170..SELS198911-199202

main88960-20030-04iAT170,CT170,ST170..DX,GX198712-198911

DARK BLUE,TRIM8#

main88960-20030-04iAT170,CT170,ST170..DX,GX198911-199202

DARK BLUE

main88960-20030-06iAT175..SELS;AT170,CT170,ST170..DX,GX198712-199202

SABLE,TRIM4#

main88960-20030-06iAT170..SELS198911-199202

main88960-20030-14iAT170..SELS198911-199202

DARK BLUE,TRIM8#

main88960-20040-03iAT170,CT170,ST170..SELS198712-199202

SHADOW GRAY,TRIM1#

main88960-20040-03iST171..5F..G198911-199202

SHADOW GRAY

main88960-20040-04iAT175;AT170,CT170,ST17#..EXG,EXS,MX198712-198911

DARK BLUE,TRIM8#

main88960-20040-04iST171..5F..G;AT170,CT170,ST17#..EXG,EXS,GTR,SELS,SXR198911-199202

DARK BLUE

main88960-20040-06iAT170..SELS198712-199202

SABLE,TRIM4#

main88960-20040-06iST171..5F..G;ST171..GTR,SXR198911-199202

SABLE

9015950033

main90159-50033

9098209005

main90982-09005

9166140612

main91661-40612

9354014514

main93540-14514

9452500600

main94525-00600

19 parts on this diagram · 1 diagram in section
