Toyota CORONA — ACCELERATOR LINK

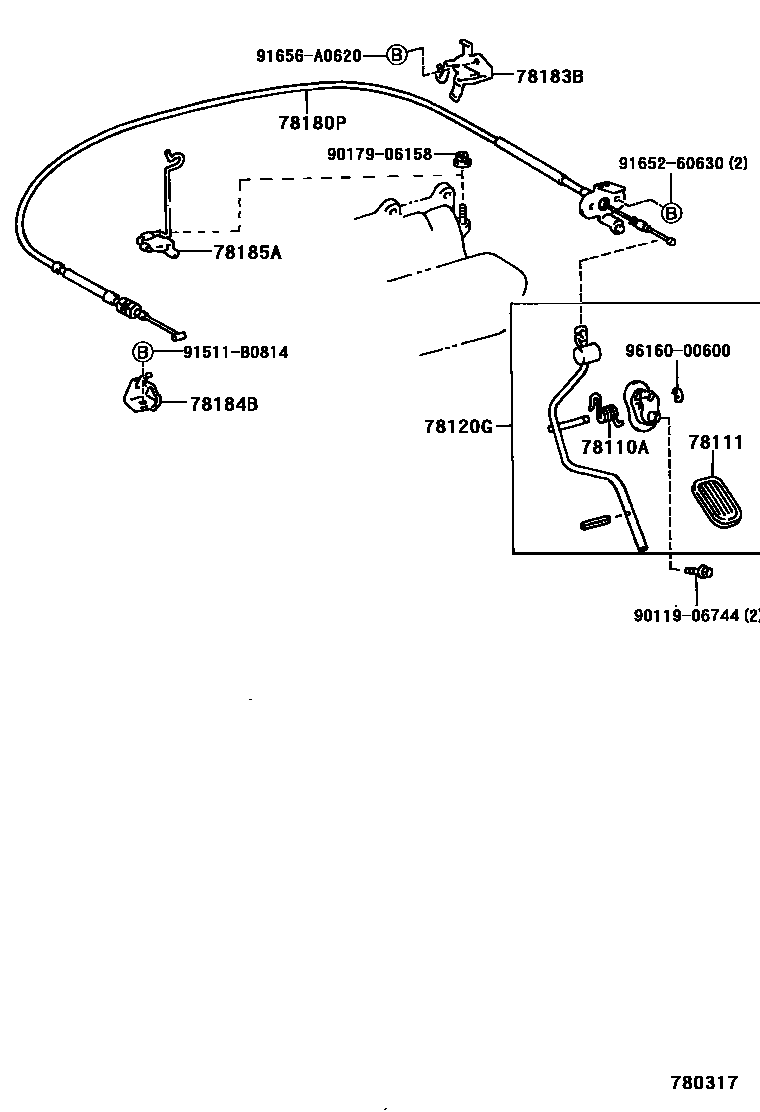

Parts diagram

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26054i199601

main90959-03009i199601-199712

main90959-03102i199601

main90959-03140i199712

main90959-03141i199806-199808

main90959-03178i199712

main90959-03213i199806-199808

78111PEDAL, ACCELERATOR

main78111-20050i199601-199712

main78111-20060i199712-200111

main78111-33020i200111-200112

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20680i199601

main78120-20690i199601

main78120-20700i199601-199712

main78120-20710i199601-199712

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-21090i199712

main78180-2D520i199601-199701

main78180-2D530i199601-199712

main78180-2D540i199601

main78180-2D550i199601-199712

main78180-2D680i199701

main78180-2D700i199612

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170i199601

main78183-20270i199612

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-20290i199601

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-20220i199601

9011906744

main90119-06744

9017906158

main90179-06158

91511B0814

main91511-B0814

9165260630

main91652-60630

91656A0620

main91656-A0620

9616000600

main96160-00600

13 parts on this diagram · 5 diagrams in section

ACCELERATOR LINK for Toyota CORONA

This section contains 31 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CORONA. Key components include: PEDAL ASSY, ACCELERATOR, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL).
