Toyota CORONA — ACCELERATOR LINK

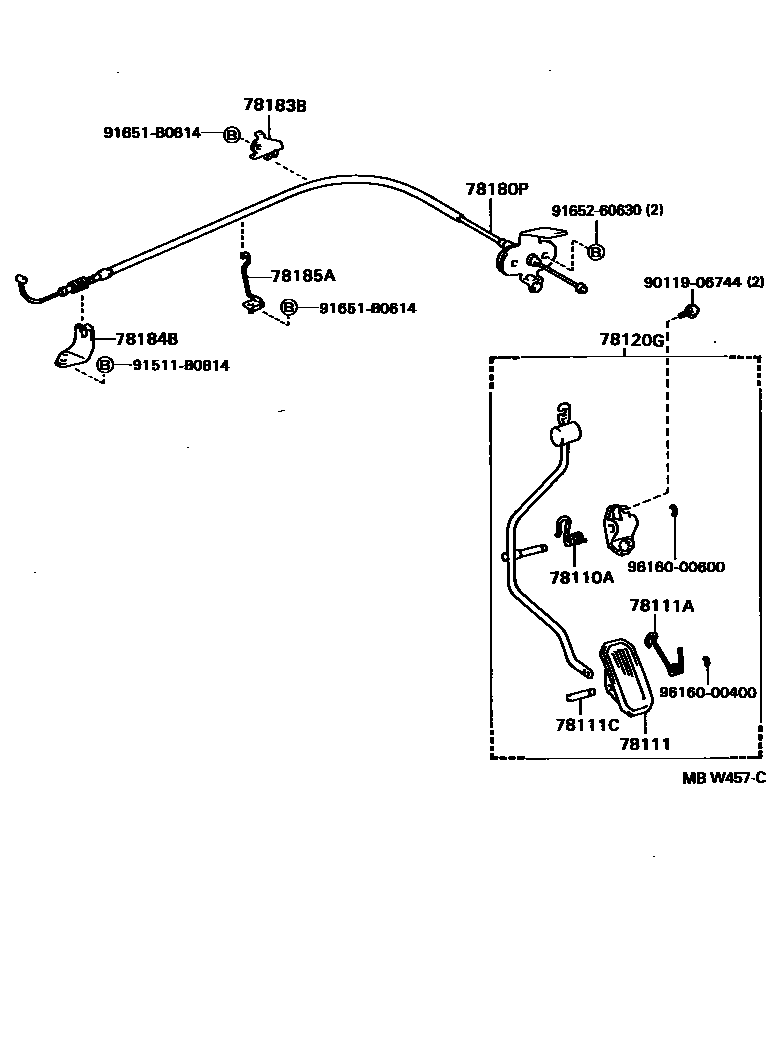

Parts diagram

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048i199202-199601

main90508-26054i199202-199601

main90959-03009i199202-199601

78111PEDAL, ACCELERATOR

main78111-20050i199208-199601

main78111-32010i199202-199208

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050i199202-199601

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001i199202-199601

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20530i199202-199208

main78120-20540i199202-199601

main78120-20550i199208-199601

main78120-20560i199202-199601

main78120-20570i199202-199601

main78120-20580i199208-199601

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-21040i199208-199601

main78180-2B850i199202-199601

main78180-2B860i199202-199601

main78180-2B870i199301-199601

main78180-2B880i199202-199307

main78180-2B881i199307-199601

main78180-2D150i199202-199601

main78180-2D200i199208-199601

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-20170i199202-199601

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-12280i199202-199601

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78183-20200i199202-199601

9011906744

main90119-06744

91511B0814

main91511-B0814

91651B0614

main91651-B0614

9165260630

main91652-60630

9616000400

main96160-00400

9616000600

main96160-00600

15 parts on this diagram · 3 diagrams in section

ACCELERATOR LINK for Toyota CORONA

This section contains 27 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CORONA. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, SPRING (FOR ACCELERATOR PEDAL ROD), PEDAL, ACCELERATOR, SPRING (FOR ACCELERATOR PEDAL), PIN (FOR ACCELERATOR PEDAL).
