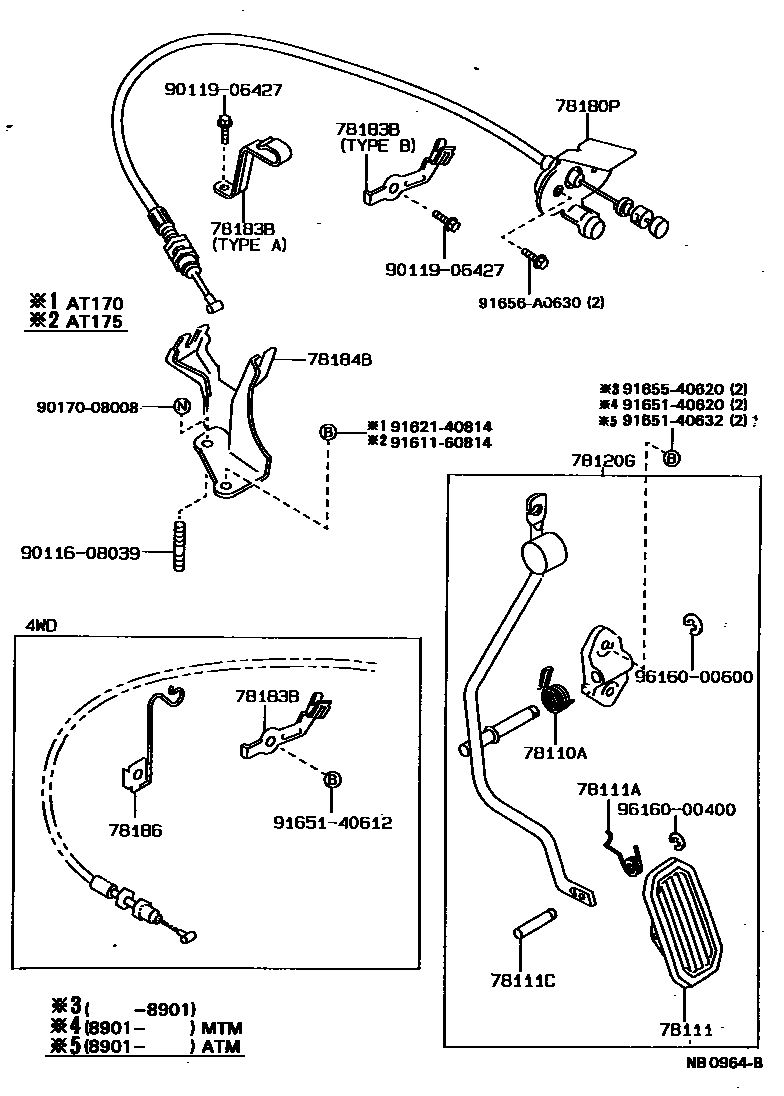

Toyota CORONA — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-18048iST171..4FC..(EXG,G,SXR);ST17#..5F..(EXS,GT,GTR,X)198712-199202

main90508-18048iAT175,ST17#..4FC;AT170,CT17#,ET176199001-199211

main90508-26054iST171..EXG,G,SXR;AT17#,CT17#,ET176,ST17#..MTM..(DX,EXS,GT,GTR,GX,MX,STD,X,Z)198712-199202

78111PEDAL, ACCELERATOR

main78111-32010iAT17#,CT17#,ET176,ST17#198712-199211

78111ASPRING (FOR ACCELERATOR PEDAL)

main90508-18050iAT17#,CT17#,ET176,ST17#198712-199211

78111CPIN (FOR ACCELERATOR PEDAL)

main90249-05001iAT17#,CT17#,ET176,ST17#198712-199211

78120GROD ASSY, ACCELERATOR PEDAL

main78120-20180iAT170..MTM..CBR;ST171..EXG,G,SXR;AT175,CT17#,ST170..5F..(DSL,EFI)198712-199202

main78120-20190iST170..5F;CT170,ET176..3FC,4F,4FC198712-199211

main78120-20250iST170..EXS,X;ST171..4FC..(EXG,G,SXR)198712-198811

sub78120-20400

main78120-20320iST171..5F..(GT,GTR)198712-198811

main78120-20330iST171..5F..(GT,GTR)198712-198811

main78120-20400iAT170;AT175,ET176,ST17#..ATM..(DX,EXS,GT,GTR,GX,SELS,X,Z)198811-199211

main78120-20400iST171..5F..(GT,GTR)198811-199202

main78120-20410iST171..5F..(GT,GTR)198811-199202

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-20430iST171..4FC..(GT,GTR)198712-198911

main78180-20620iST171..5F..(GT,GTR)198712-198911

main78180-20621iST171..GT,GTR198911-199202

main78180-20671iST171..EXG,G,SXR198712-198808

main78180-2B030iST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI198808-199202

main78180-2B060iST170198712-198911

main78180-2B110iET176198712-198911

main78180-2B111iET176198911-199001

main78180-2B112iET176199001-199211

main78180-2B210iCT17#..5F198712-199001

main78180-2B211iCT17#..5F199001-199211

main78180-2B230iCT17#198712-199211

main78180-2B270iAT170198712-198911

main78180-2B340iAT17#..EFI198808-199202

main78180-2B370iST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

main78180-2B620iCT17#..5F199001-199211

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-12140iAT170198712-198911

main78183-20100iCT17#,ST17#198712-198809

sub78183-20101

main78183-20100iAT170198712-198809

sub78183-20101

main78183-20101iAT175198908-199202

main78183-20110iET176198712-198911

main78183-20111iET176198911-199211

main78183-20120iST171..GT,GTR198911-199202

main78183-20120iST17#198807-199211

main78183-20120iAT170..CBR198809-199211

main78183-20150iST171..GT,GTR198911-199202

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-10070iET176198712-198911

main78184-12230iAT170198712-198911

main78184-12240iAT175198808-199202

main78184-12260iAT170..EXS,GX,SELS198911-199202

main78184-20160iST170198712-198911

78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-12200iET176198911-199211

main78186-12210iET176198712-198801

main78186-20100iST170..EXS,X198712-198911

main78186-20110iET176198801-198911

main78186-20120iAT175198808-198911

main78186-32040iST17#..(EXG,EXS,G,GX,SELS,SXR,X,Z)..EFI198712-199202

9011608039

main90116-08039

9011906427

main90119-06427

9017008008

main90170-08008

9161160814

main91611-60814

9162140814

main91621-40814

9165140612

main91651-40612

9165140620

main91651-40620

9165140632

main91651-40632

9165540620

main91655-40620

91656A0630

main91656-A0630

9616000400

main96160-00400

9616000600

main96160-00600

21 parts on this diagram · 9 diagrams in section
