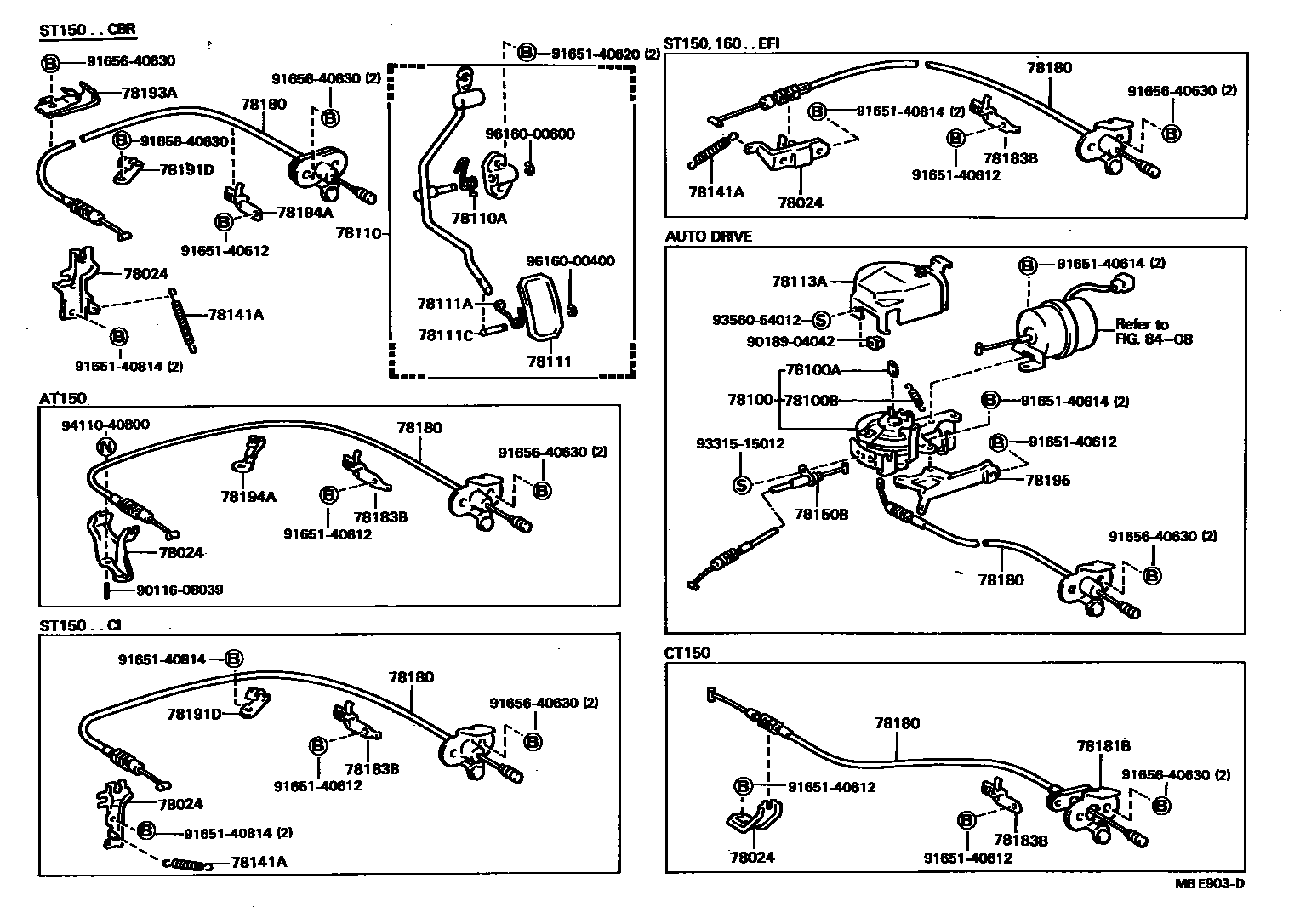

Toyota CORONA — ACCELERATOR LINK
78024BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE
78100LINK ASSY, ACCELERATOR
W/AUTO DRIVE
W/AUTO DRIVE
78100ASTOPPER, ACCELERATOR LINK
W/AUTO DRIVE
78100BSPRING (FOR ACCELERATOR LINK)
W/AUTO DRIVE
78110ROD ASSY, ACCELERATOR PEDAL
W/AUTO DRIVE
W/AUTO DRIVE
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78113ACOVER, AUTO DRIVE ACCELERATOR LINK
W/AUTO DRIVE
W/AUTO DRIVE
W/AUTO DRIVE
78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
78150BCABLE ASSY, ACCELERATOR AUTO DRIVE
W/AUTO DRIVE
W/AUTO DRIVE
W/AUTO DRIVE
W/AUTO DRIVE
78180WIRE ASSY, ACCELERATOR
W/AUTO DRIVE
W/AUTO DRIVE
78181BSTOPPER, ACCELERATOR IDLE ADJUSTING
78183BCLAMP, ACCELERATOR CONTROL CABLE
78191DCLAMP, ACCELERATOR CONTROL CABLE
W/AUTO DRIVE
78193ASUPPORT, ACCELERATOR CONTROL CABLE, NO.3
78194ASUPPORT, ACCELERATOR CONTROL CABLE, NO.4
78195BRACKET, ACCELERATOR LINK
W/AUTO DRIVE
8408CRUISE CONTROL (AUTO DRIVE)
9011608039
main90116-08039
9018904042
main90189-04042
9165140612
main91651-40612
9165140614
main91651-40614
9165140620
main91651-40620
9165140814
main91651-40814
9165640630
main91656-40630
9331515012
main93315-15012
9356054012
main93560-54012
9411040800
main94110-40800
9616000400
main96160-00400
9616000600
main96160-00600
32 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota CORONA
This section contains 39 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CORONA. Key components include: BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, STOPPER, ACCELERATOR LINK, SPRING (FOR ACCELERATOR LINK), ROD ASSY, ACCELERATOR PEDAL.
