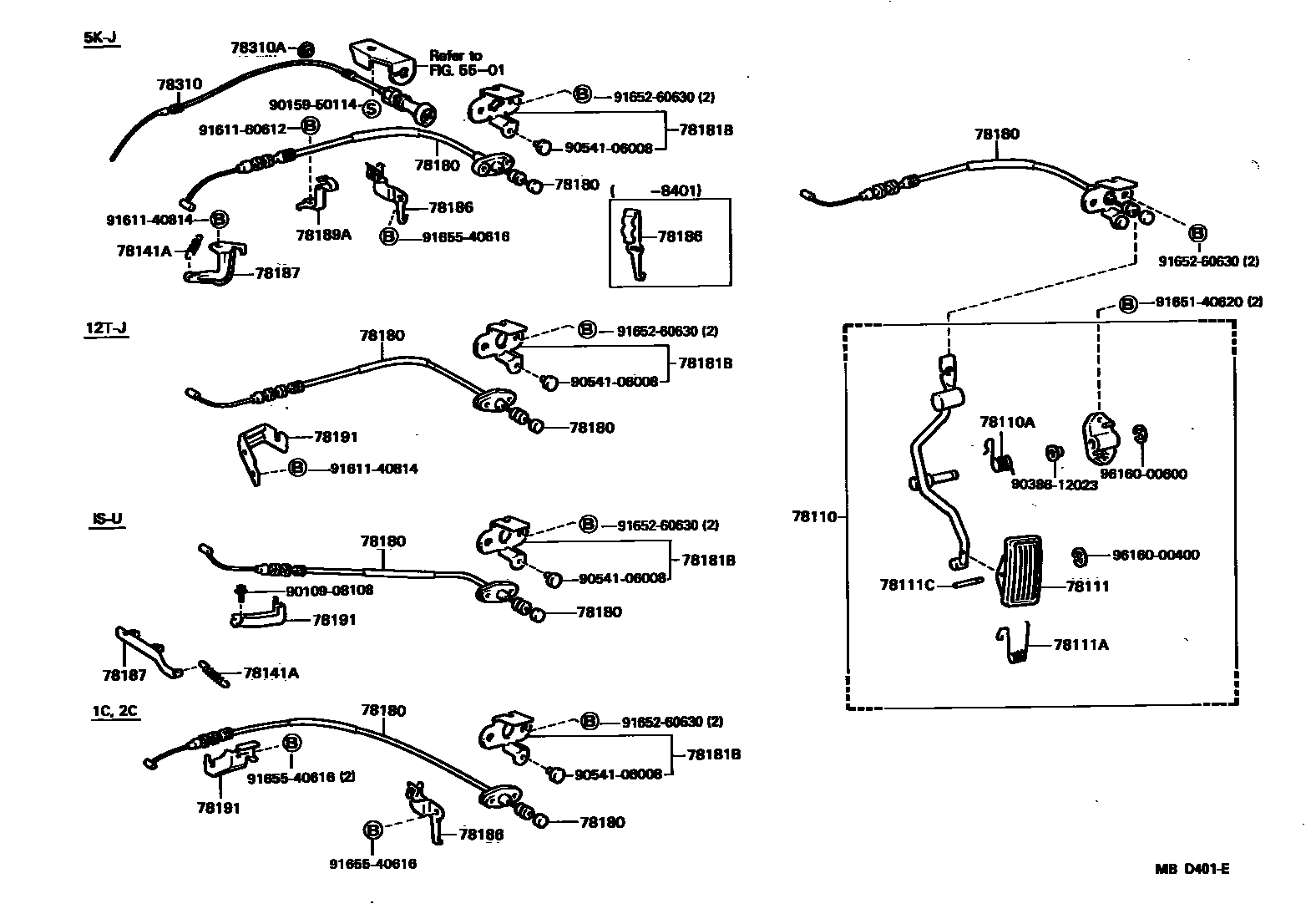

Toyota CORONA — ACCELERATOR LINK
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78111ASPRING (FOR ACCELERATOR PEDAL)
78111CPIN (FOR ACCELERATOR PEDAL)
78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)
78180WIRE ASSY, ACCELERATOR
78181BSTOPPER, ACCELERATOR IDLE ADJUSTING
78186SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78187BRACKET, ACCELERATOR PULL BACK SPRING
78189ASUPPORT, ACCELERATOR CONTROL CABLE, NO.2
78191BRACKET, ACCELERATOR WIRE SUPPORT
78310CABLE ASSY, CHOKE
78310AGROMMET, CHOKE CABLE
9010908108
main90109-08108
9015950114
main90159-50114
9038612023
main90386-12023
9054106008
main90541-06008
9161140814
main91611-40814
9161160612
main91611-60612
9165140620
main91651-40620
9165260630
main91652-60630
9165540616
main91655-40616
9616000400
main96160-00400
9616000600
main96160-00600
26 parts on this diagram · 3 diagrams in section
ACCELERATOR LINK for Toyota CORONA
This section contains 43 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CORONA. Key components include: INSTRUMENT PANEL & GLOVE COMPARTMENT, ARM SUB-ASSY, ACCELERATOR LINK ROD, BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE, LINK ASSY, ACCELERATOR, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2.
