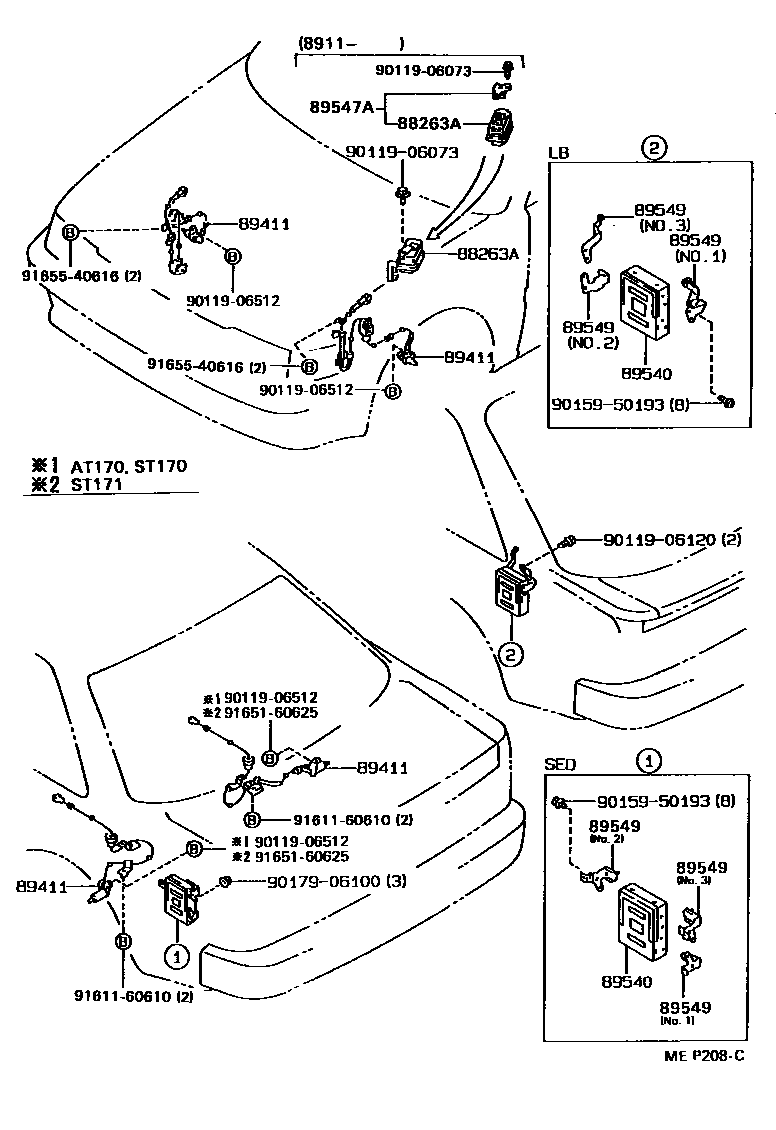

Toyota CORONA — ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-12070iAT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

sub88263-12080

main88263-20050iAT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-198911

89411SENSOR, SPEED

main89542-20030iAT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-198911

FRONT,RH

main89542-20040iAT170,ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z199005-199202

FRONT,RH

main89542-20050iAT175,ST171..EXS,GT,GTR,GX,SELS198911-199202

FRONT,RH

main89543-20030iAT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-198911

FRONT,LH

main89543-20040iAT170,ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z199005-199202

FRONT,LH

main89543-20050iAT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

FRONT,LH

main89545-20030iAT170,ST170..EXS,X198712-198911

REAR,RH

main89545-20040iST171198712-198911

REAR,RH

main89545-20070iAT170,ST170..EXS,GX,SELS,X,Z198911-199202

REAR,RH

main89545-20080iST171198911-199202

REAR,RH

main89545-32020iAT175198911-199202

REAR,RH

main89546-20030iAT170,ST170..EXS,X198712-198911

REAR,LH

main89546-20040iST171198712-198911

REAR,LH

main89546-20070iAT170,ST170..EXS,GX,SELS,X,Z198911-199202

REAR,LH

main89546-20080iST171198911-199202

REAR,LH

main89546-32020iAT175198911-199202

REAR,LH

89540COMPUTER ASSY, SKID CONTROL

main89541-20030iST171..GT,GTR198712-199202

main89541-20040iST170..EFI;AT170..GX..EFI;AT170..EXS,SELS;ST170..(EXS,X)..CI198808-199005

main89541-20080iAT170,ST17#..EXG,EXS,G,GX,SELS,SXR,X,Z199005-199202

main89541-20090iAT175198911-199202

89547ARELAY, SKID CONTROL W/BRACKET

main89547-20020iAT17#,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198911-199202

89549BRACKET, SKID CONTROL COMPUTER

main88267-20090iST171..GT198712-199202

main88267-20110iAT175,ST171..EXS,GTR,GX,SELS198712-199202

main88268-20080iST170..X..CI;ST17#..LB..EFI198712-199202

main88268-20090iAT17#,ST17#..EXG,EXS,GTR,GX,SELS,SXR198712-199202

main88269-20080iST171..GT198712-199202

main88269-20090iAT170,ST17#..EXG,EXS,GTR,SXR198712-199202

main89549-20050iAT170,ST17#..EXG,EXS,GX,SELS,SXR199005-199202

main89549-20060iST17#..G,X,Z199005-199202

9011906073

main90119-06073

9011906120

main90119-06120

9011906512

main90119-06512

9015950193

main90159-50193

9017906100

main90179-06100

9161160610

main91611-60610

9165160625

main91651-60625

9165540616

main91655-40616

13 parts on this diagram · 2 diagrams in section
