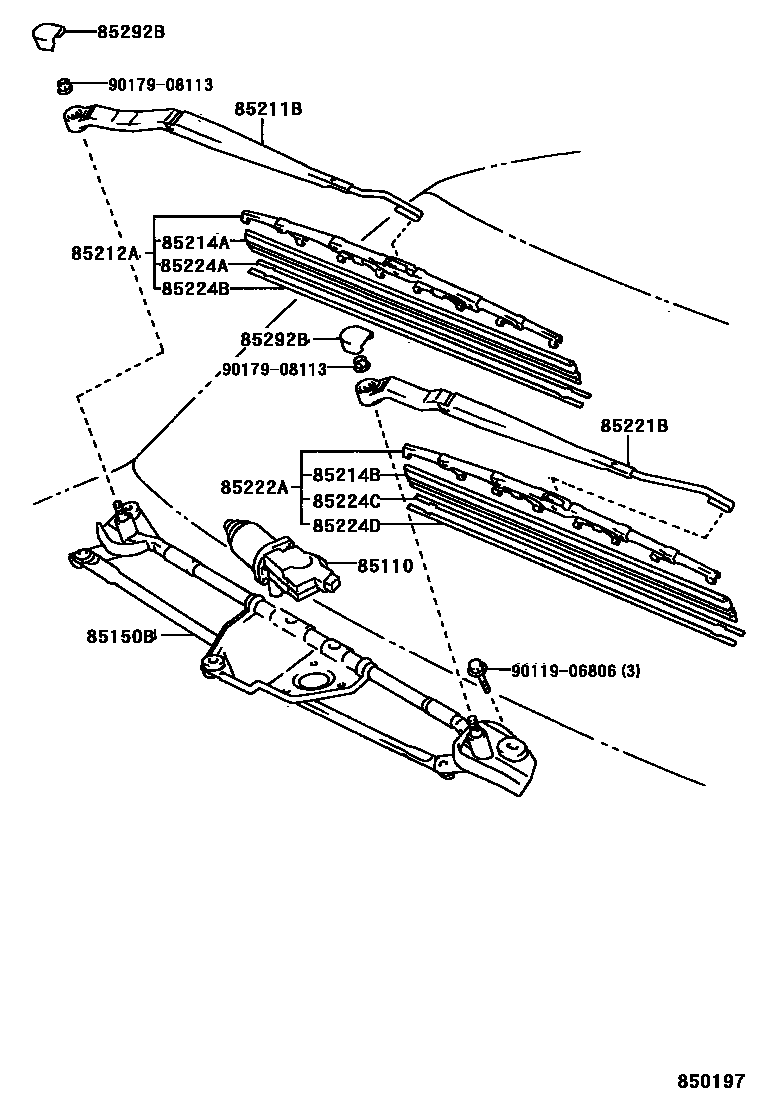

Toyota CORONA — WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-20870i199601-199808

85150BLINK ASSY, WIPER

main85150-20870i199601-199612

main85150-20871i199612-199808

85211BARM, FRONT WIPER, RH

main85211-20370i199601-199612

main85211-20371i199612-199808

85212ABLADE, FR WIPER, RH

main85212-20410i199601-199808

85214ARUBBER, WIPER, RH

main85214-20280i199601-199808

85214BRUBBER, WIPER, LH

main85214-20350i199601-199808

85221BARM, FRONT WIPER, LH

main85221-20400i199601-199808

85222ABLADE, FR WIPER, LH

main85222-20390i199601-199808

85224APLATE, WIPER RUBBER BACKING, NO.1

main85224-20280i199601-199808

85224BPLATE, WIPER RUBBER BACKING, NO.2

main85224-20280i199601-199808

85224CPLATE, WIPER RUBBER BACKING, NO.3

main85224-20310i199601-199808

85224DPLATE, WIPER RUBBER BACKING, NO.4

main85224-20310i199601-199808

85292BCAP, FRONT WIPER ARM HEAD

main85292-12020×2i199601-199808

9011906806

main90119-06806

9017908113

main90179-08113

15 parts on this diagram · 1 diagram in section

WINDSHIELD WIPER for Toyota CORONA

This section contains 15 genuine Toyota parts for the WINDSHIELD WIPER system of the Toyota CORONA. Key components include: MOTOR ASSY, WINDSHIELD WIPER, LINK ASSY, WIPER, ARM, FRONT WIPER, RH, BLADE, FR WIPER, RH, RUBBER, WIPER, RH.
