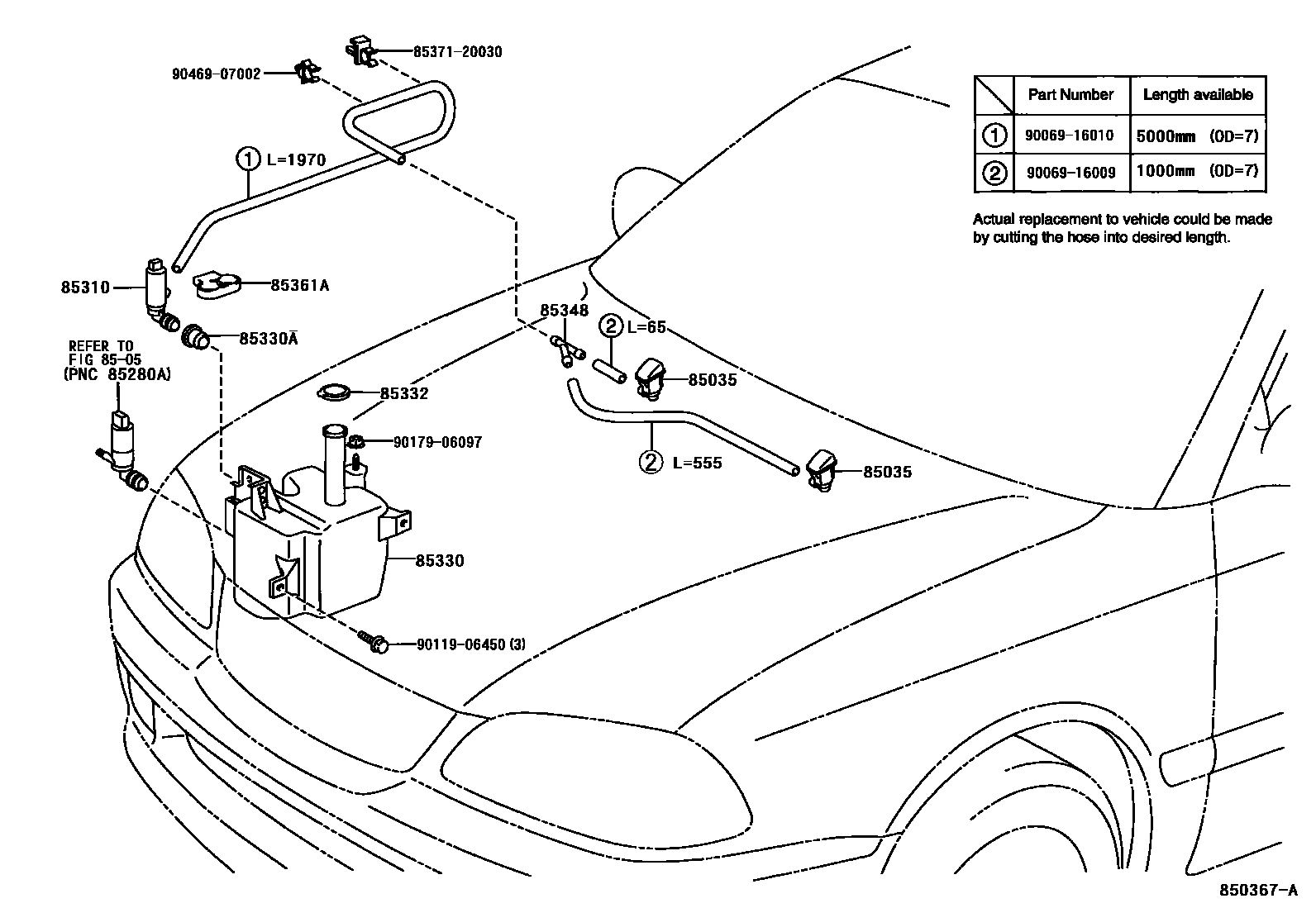

Toyota CORONA — WINDSHIELD WASHER
85035NOZZLE SUB-ASSY, WASHER
8505HEADLAMP CLEANER
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330JAR ASSY, WINDSHIELD WASHER
85330ABUSH, WINDSHIELD WASHER JAR
85332CAP, WINDSHIELD WASHER JAR
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
85361ABRACKET, WINDSHIELD WASHER, NO.1
8537120030HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-20030
9006916009
main90069-16009
9006916010
main90069-16010
9011906450
main90119-06450
9017906097
main90179-06097
9046907002
main90469-07002
14 parts on this diagram · 1 diagram in section
WINDSHIELD WASHER for Toyota CORONA
This section contains 14 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CORONA. Key components include: NOZZLE SUB-ASSY, WASHER, HEADLAMP CLEANER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR.
