Toyota CORONA — WINDSHIELD WASHER

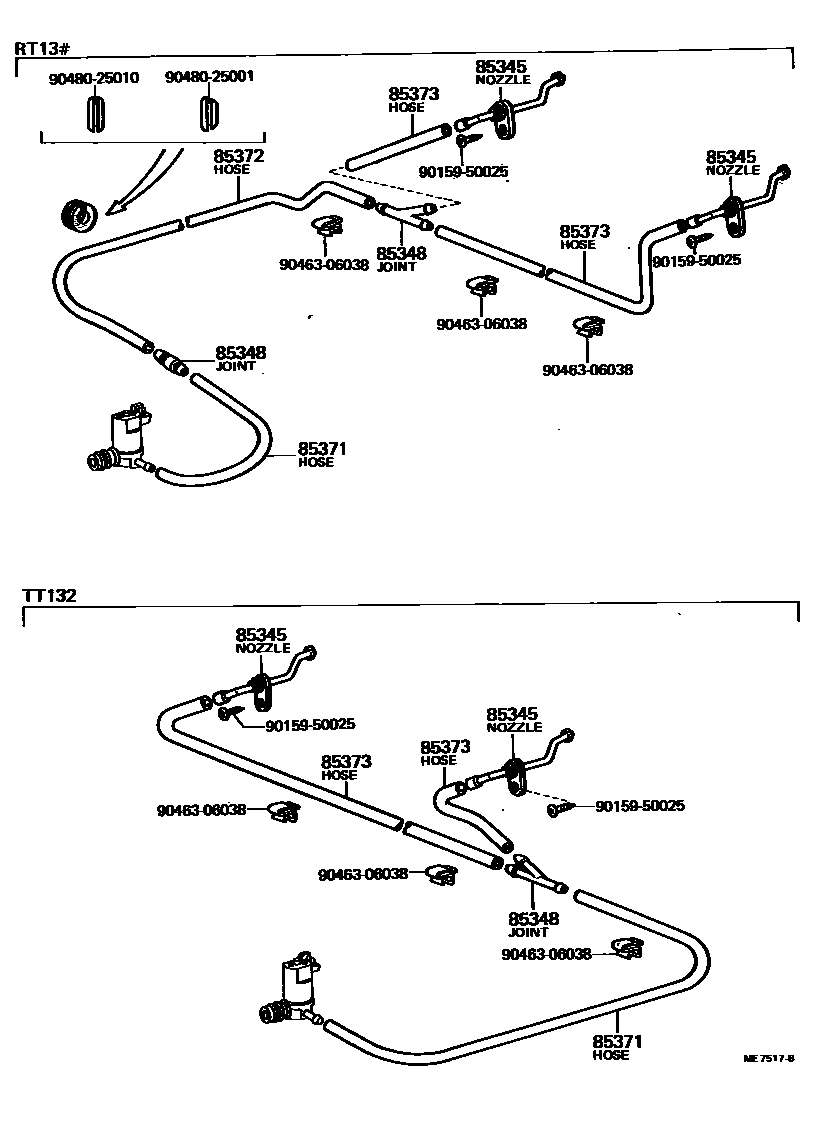

Parts diagram
85345NOZZLE, WINDSHIELD WASHER
main85341-14060×2i197809-198301
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12011i197809-198008
3 WAY
main85355-14010i197809-198008
3 WAY
main85355-87201i197809-198008
2 WAY
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-06013i197809-198301
L=1000
main90446-06056i197809-198008
L=1000(*H,L=700)
main90446-06286i197809-198008
L=1000(*H,L=400)
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90446-07005i197809-198301
L=1800(*H,L=1200)
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90446-06013i197809-198301
L=1000(*H,L=160); L=700
9015950025
main90159-50025
9046306038
main90463-06038
9048025001
main90480-25001
9048025010
main90480-25010

9 parts on this diagram · 3 diagrams in section

WINDSHIELD WASHER for Toyota CORONA

This section contains 19 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CORONA. Key components include: RADIATOR & WATER OUTLET, CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER.
