Toyota CORONA — WINDSHIELD WASHER

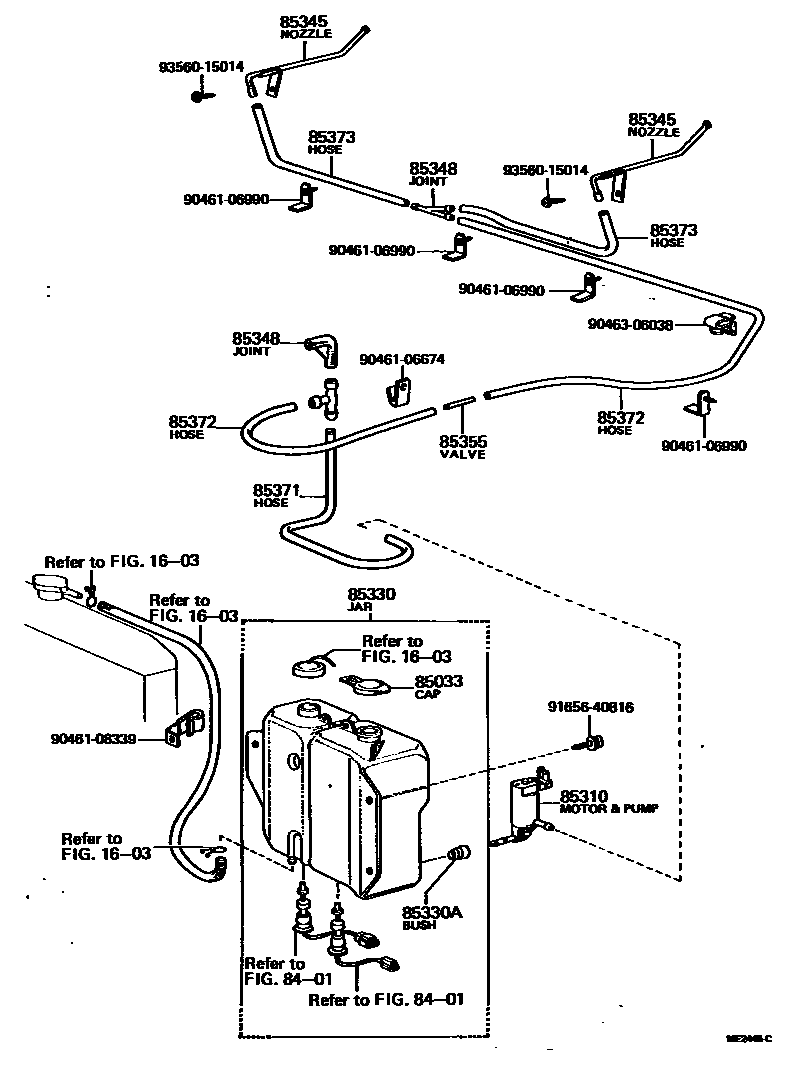

Parts diagram
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85033CAP ASSY, WINDSHIELD WASHER
main85033-20070i197409-197509
FOR HEADLAMP CLEARNER
main85332-20020i197308-197509
85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER
main85310-12020i197308-197701
main85310-20100i197701-197905
85330JAR ASSY, WINDSHIELD WASHER
main85285-20010i197409-197502
FOR HEADLAMP CLEARNER
main85285-20011i197502-197509
FOR HEADLAMP CLEARNER
main85330-20100i197509-197701
main85330-20140i197509-197808
main85330-20150i197701-197905
85330ABUSH, WINDSHIELD WASHER JAR
main90099-32057i197308-197701
main90099-32089i197701-197905
85345NOZZLE, WINDSHIELD WASHER
main85341-20080i197308-197708
RH
main85341-20081i197708-197905
RH
main85341-20090i197308-197708
LH
main85341-20091i197708-197905
LH
85348JOINT, WINDSHIELD WASHER HOSE, NO.1
main85348-12011i197701-197905
main85355-14010i197701-197808
main85355-20070i197308-197701
WASHER TANK SIDE
main85355-87201i197701-197905
WASHER TANK SIDE
85355VALVE, WINDSHIELD WASHER HOSE
main85031-14010i197308-197701
85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main90446-06236i197308-197701
L=1000(*H,L=450)
main90446-06286i197701-197905
L=1000(*H,L=400)
main90446-06298i197409-197509
FOR HEADLAMP CLEARNER
85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
main90446-06051i197701-197808
L=320
main90446-06055i197509-197510
L=1300
main90446-06205i197701-197905
L=1200
main90446-06253i197510-197701
L=2000(*H,L=1400)
main90446-06298i197409-197509
FOR HEADLAMP CLEARNER
85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
main90099-33248i197701-197706
L=1000(*H,L=80)
main90099-33325i197706-197905
L=1800(*H,L=80)
main90099-33326i197706-197710
L=120
main90446-06267×2i197308-197701
L=1000(*H,L=315)
main90446-06287i197701-197905
L=1000(*H,L=580)
main90446-07288i197710-197905
L=1800(*H,L=100)
9046106674
main90461-06674
9046106990
main90461-06990
9046108339
main90461-08339
9046306038
main90463-06038
9165640816
main91656-40816
9356015014
main93560-15014

18 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CORONA

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CORONA. Key components include: RADIATOR & WATER OUTLET, SWITCH & RELAY & COMPUTER, CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER.
