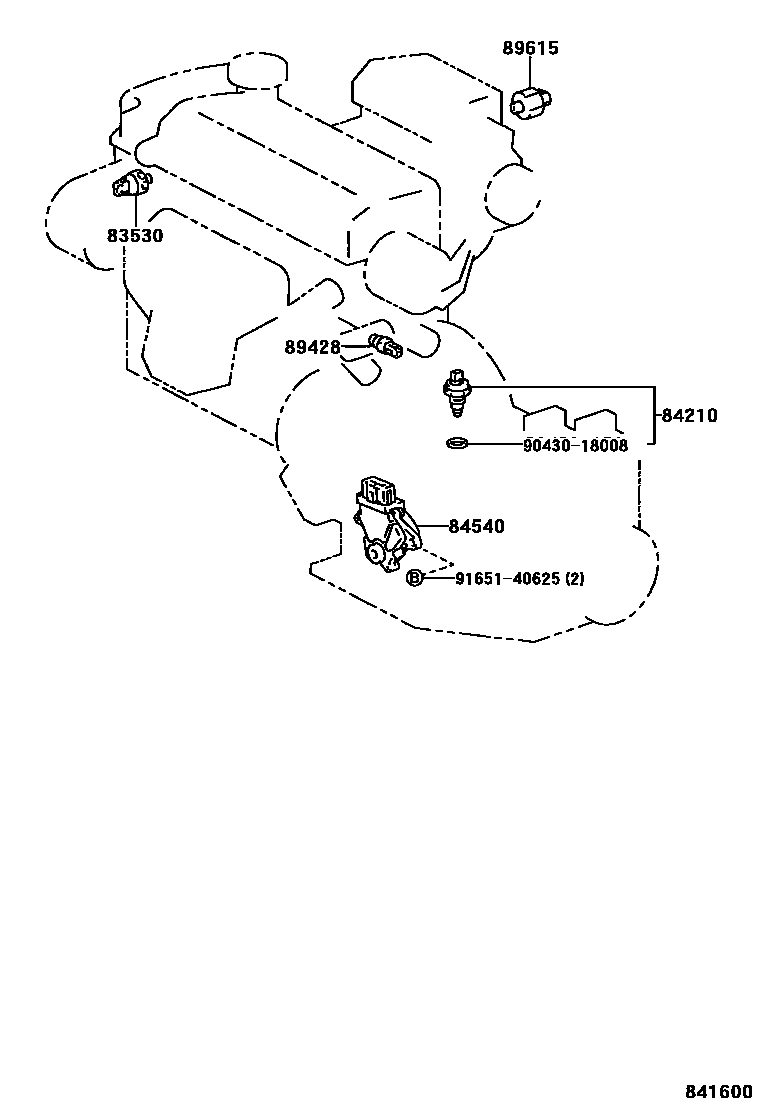

Toyota CORONA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1COWL 0006 1COWL 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1INSTRUMENT PANEL 0011 1IGNITION & COMBINATION SWITCH0012 1ROOF,DOOR,SEAT & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iAT220199710-200007

JAEGER

main83530-28020iST220199803

DENSO

main83530-30090iAT220199710-199803

YAZAKI

main83530-30100iCT220199710-199803

main83530-60010iCT220199803-200007

main83530-60020iAT220,ST220199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT220,CT220,ST220..MTM199710

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT220..ATM199710-200007

TOKAIRIKA

main84540-12210iAT220..ATM199710-200007

MATSUSHITA

main84540-16050iST220..ATM199710-200007

main84540-52010iST220..ATM200007

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-20110iCT220199710-200007

main89428-41010iAT220199710-200007

89615SENSOR, KNOCK CONTROL

main89615-12030iAT220199710-199809

TOYOTA

main89615-20030iST220199710-199910

TOYOTA

main89615-22030iAT220199710-199909

MATSUSHITA

main89615-22050iAT220199809-200007

TOYOTA

main89615-32030iST220199910

DENSO

main89615-32040iST220199910

TOYOTA

main89615-33020iST220199710-199910

DENSO

main89615-52010iAT220199909-200007

MATSUSHITA

9043018008

main90430-18008

9165140625

main91651-40625

7 parts on this diagram · 12 diagrams in section
