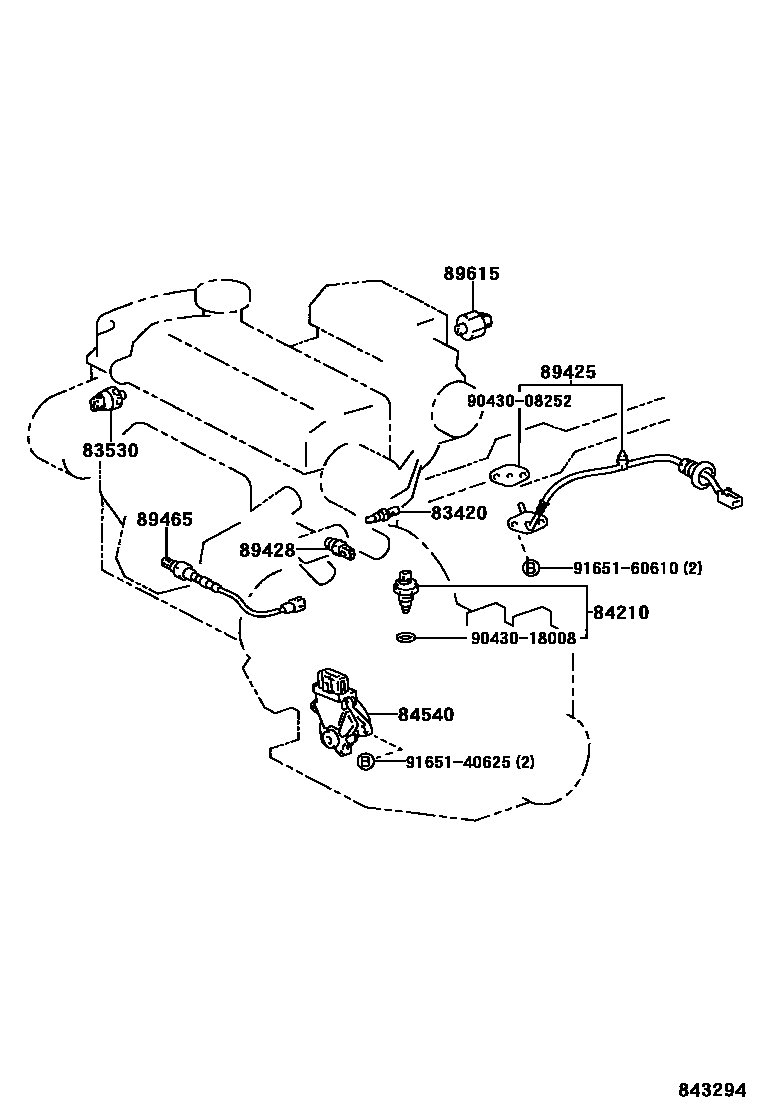

Toyota CORONA — SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM 0006 1COWL 0007 1INSTRUMENT PANEL SWITCH 0008 1COMBINATION SWITCH 0009 1ROOF,DOOR,SEAT & LUGGAGE

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-20040iAT210199601-199712

TYPE A:REFER TO ILLUSTRATION

main83420-AA010iST210199610-199712

TYPE B:REFER TO ILLUSTRATION

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iST210199803

DENSO

main83530-30090iAT210,ST210199601-199803

main83530-60020iST210199803

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT210..MTM199601-199808

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iAT210,ST210..ATM199712

TOKAIRIKA

main84540-12210iAT210..ATM199601-199712

MATSUSHITA

main84540-16050iST210199601-199712

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-80035iAT210,ST210199601-199712

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10120iAT210199712-199808

main89428-12160iAT210199601-199712

main89428-33010iST210199601-199712

89465SENSOR, OXYGEN

main89465-12400iAT210199601-199808

main89465-12520iAT210..ATM199808

main89465-20280iST210199601-199712

main89465-20560iST210199601-199712

HONG KONG SPEC

main89465-20630iST210199712

89615SENSOR, KNOCK CONTROL

main89615-12030iAT210199601-199808

TOYOTA

main89615-20030iST210199601-199910

TOYOTA

main89615-22030iAT210199601-199808

MATSUSHITA

main89615-22040iAT210199601-199712

NIPPONDENSO

main89615-22050iAT210..ATM199809

TOYOTA

main89615-32030iST210199910

DENSO

main89615-32040iST210199910

TOYOTA

main89615-33020iST210199601-199910

DENSO

main89615-52010iAT210199909

MATSUSHITA

9043008252

main90430-08252

9043018008

main90430-18008

9165140625

main91651-40625

9165160610

main91651-60610

12 parts on this diagram · 9 diagrams in section
