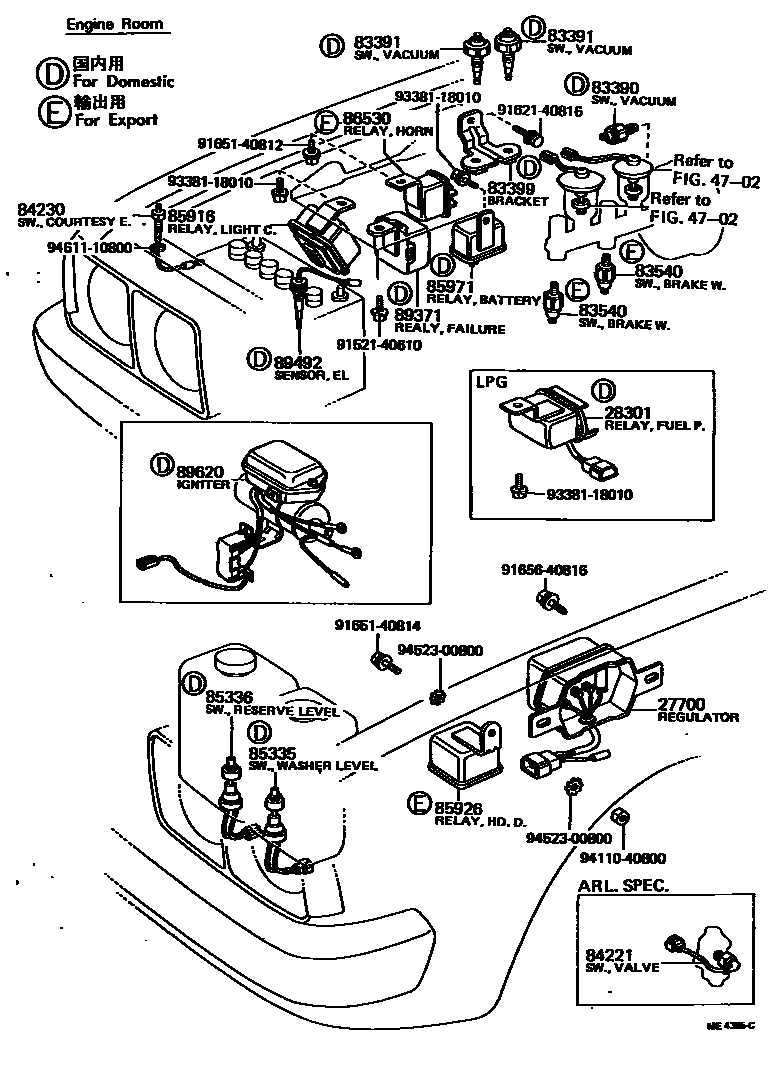

Toyota CORONA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

27700REGULATOR ASSY, GENERATOR

main27700-36010i12R#,16R,18R#..RT10#,11#197308-197707

main27700-36020i12R#,16R,18R#..RT10#,11#197707-197905

sub27700-15040

28301RELAY ASSY, FUEL PUMP

4702

83390SWITCH ASSY, VACUUM WARNING

83391SWITCH, VACUUM

83399BRACKET, VACUUM SWITCH

83540SWITCH ASSY, BRAKE WARNING (FOR TANDEM MASTER CYLINDER)

main84390-30011×2iRT102,104,117,118..LHD..EUR197308-197808

84221SWITCH ASSY, DIFFERENTIAL VALVE

main84220-12030iRT104,118..ARL197708-197905

main84220-20031iRT104,118..ARL197610-197708

84230SWITCH ASSY, COURTESY LAMP (FOR ENGINE ROOM)

main84231-20010iRT102,104..DLX;RT102..RHD..STD..GEN197308-197509

sub84230-12080

85335SWITCH ASSY, WASHER LEVEL WARNING

85336SWITCH ASSY, RESERVE TANK LEVEL WARNING

85916RELAY, LIGHT CONTROL

main85919-20020iRT10#,11#197308-197609

main85919-20021iRT10#,11#197609-197701

sub85919-20031

main90987-01001×2iRT10#,11#197701-197905

sub90999-99088

85926RELAY, HEADLAMP DIMMER

main85926-22010iRT104,118..EUR197409-197701

HEADLAMP CLEANER

sub85926-14010

85971RELAY, BATTERY HEATER

86530RELAY ASSY, HORN

main86530-20060iRT10#,110,112,116,117,118..LHD197308-197509

89371RELAY, LAMP FAILURE INDICATOR

89492SENSOR, ELECTROLYTE LEVEL

89620IGNITER ASSY

9152140610

main91521-40610

9162140816

main91621-40816

9165140812

main91651-40812

9165140814

main91651-40814

9165640816

main91656-40816

9338118010

main93381-18010

9411040800

main94110-40800

9452300800

main94523-00800

9461110800

main94611-10800

27 parts on this diagram · 11 diagrams in section
