Toyota CORONA — STARTER

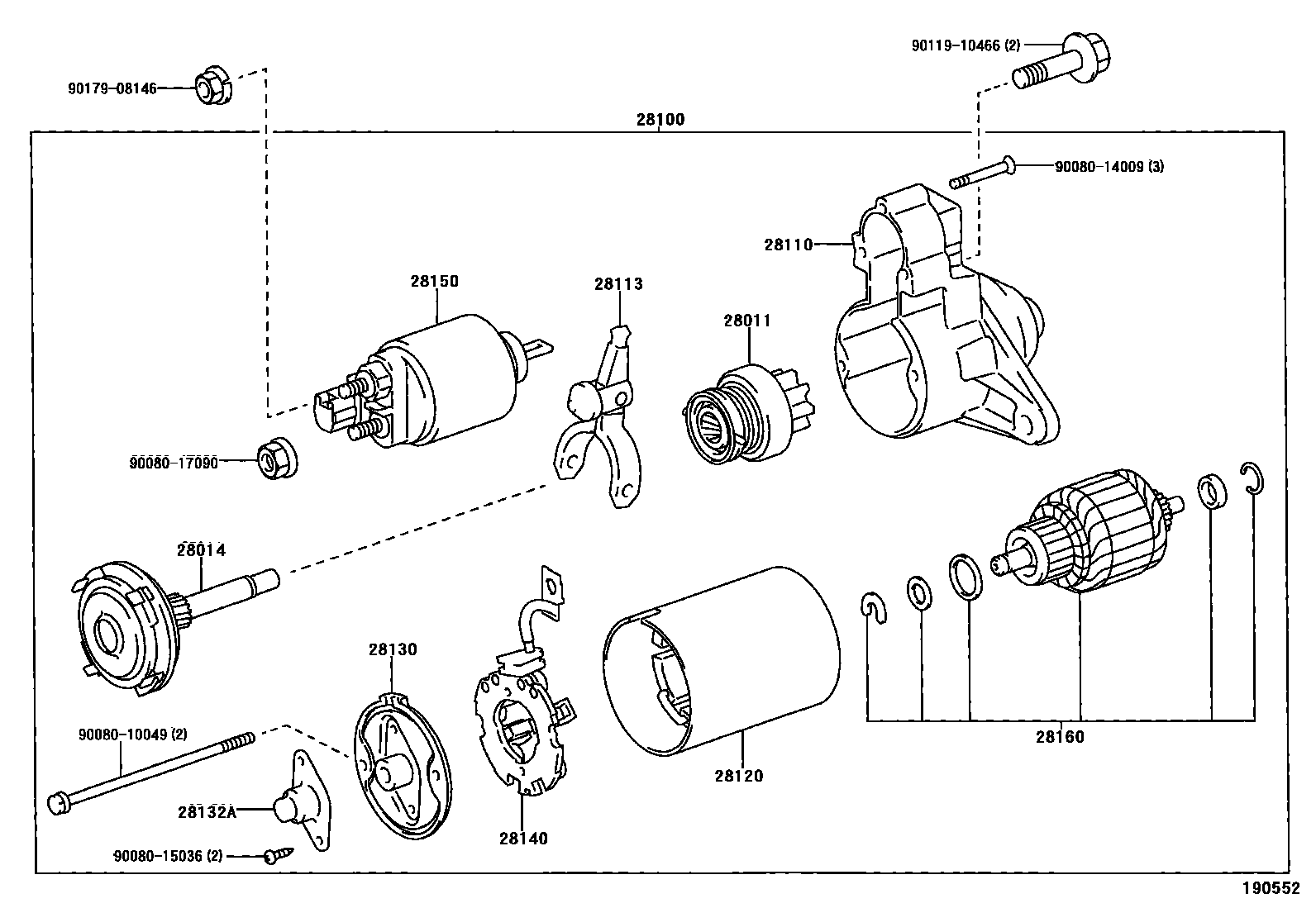

Parts diagram

28011CLUTCH SUB-ASSY, STARTER

main28011-02010i199710-200007

main28011-0B020i199710-199910

main28011-0G010i199910-200007

main28011-74060i199710

12V 1.0KW

main28011-74070i199710-200007

12V 1.2KW

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-02080i199710-200004

main28014-0B020i199710-199910

main28014-0D030i200004-200007

main28014-0G010i199910-200007

28100STARTER ASSY

main28100-02080i199710-200007

12V 1.1KW

main28100-0B020i199710-199910

12V 2.0KW

main28100-0G010i199910-200007

12V 2.0KW

main28100-74130i199710-200007

12V 1.2KW

main28100-74200i199710-200007

12V 1.0KW

main28100-74300i200007

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-02080i199710-200007

main28110-0B020i199710-199910

main28110-0G010i199910-200007

main28110-74100i199710-200007

12V 1.2KW

main28110-74110i199710-200007

12V 1.0KW

main28110-74300i200007

28113LEVER, STARTER PINION DRIVE

main28113-02010i199710-200007

28120YOKE ASSY, STARTER

main28120-02020i199710-200007

main28120-0B020i199710-199910

main28120-0G010i199910-200007

main28120-16180i199710-200007

12V 1.2KW

main28120-26071i199710

12V 1.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-02050i199710-200007

main28130-0B020i199710-200007

main28130-74110i199710-200007

12V 1.0KW

main28130-74120i199710-200007

12V 1.2KW

main28130-74300i200007

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-04010i199710-200007

28140HOLDER ASSY, STARTER BRUSH

main28140-02020i199710-200007

main28140-0B020i199710-199910

main28140-0G010i199910-200007

main28140-74010i199710

12V 1.0KW

main28140-74120i199710-200007

12V 1.2KW

28150SWITCH ASSY, MAGNET STARTER

main28150-02080i199710-200007

main28150-0B020i199710-200007

main28150-74140i199710-200007

12V 1.2KW

main28150-74200i199710-200007

12V 1.0KW

main28150-74300i200007

28160ARMATURE ASSY, STARTER

main28160-02080i199710-200007

main28160-0B020i199710-199910

main28160-0G010i199910-200007

main28160-26071i199710

12V 1.0KW

main28160-76060i199710-200007

12V 1.2KW

9008010049

main90080-10049

9008014009

main90080-14009

9008015036

main90080-15036

9008017090

main90080-17090

9011910466

main90119-10466

9017908146

main90179-08146

17 parts on this diagram · 5 diagrams in section

STARTER for Toyota CORONA

This section contains 48 genuine Toyota parts for the STARTER system of the Toyota CORONA. Key components include: CLUTCH SUB-ASSY, STARTER, SHAFT SUB-ASSY, PLANET CARRIER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, LEVER, STARTER PINION DRIVE.
