Toyota CORONA — MIRROR
87810MIRROR ASSY, INNER REAR VIEW
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
87908BMIRROR SUB-ASSY, RH
87909BMIRROR SUB-ASSY, LH
87915COVER, OUTER MIRROR, RH
BLACK
SUPER WHITE 2,040
SILVER ME,199
GRAY M.M.,1E5
BLACK ME,205
BLACK MC.,209
SU.RED 3,3J6
RED M.M.,3M3
RED M.M.,3N8
CHAMPAGNE ME.,583
DK.GREEN M.M.,6P3
LT.GREEN ME.,6Q2
DK.GREEN M.M.,6S3
GREEN M.M.,6S4
DP.TURQUOISE MC.,758
STRONG BLUE M,8B6
DK.BLUE,8M4
DK.BLUE ME.,8N3
DK.BLUE M.M.,8L3
DK.BLUE M.M.,8P4
DK.BLUE,8Q4
DK.PURPLE M.M.,945
LESS COLOR
87945COVER, OUTER MIRROR, LH
BLACK
SUPER WHITE 2,040
SILVER ME,199
GRAY M.M.,1E5
BLACK ME,205
BLACK MC.,209
SU.RED 3,3J6
RED M.M.,3M3
RED M.M.,3N8
CHAMPAGNE ME.,583
DK.GREEN M.M.,6P3
LT.GREEN ME.,6Q2
DK.GREEN M.M.,6S3
GREEN M.M.,6S4
DP.TURQUOISE MC.,758
STRONG BLUE M,8B6
DK.BLUE,8M4
DK.BLUE ME.,8N3
DK.BLUE M.M.,8L3
DK.BLUE M.M.,8P4
DK.BLUE,8Q4
DK.PURPLE M.M.,945
LESS COLOR
9016360021
main90163-60021

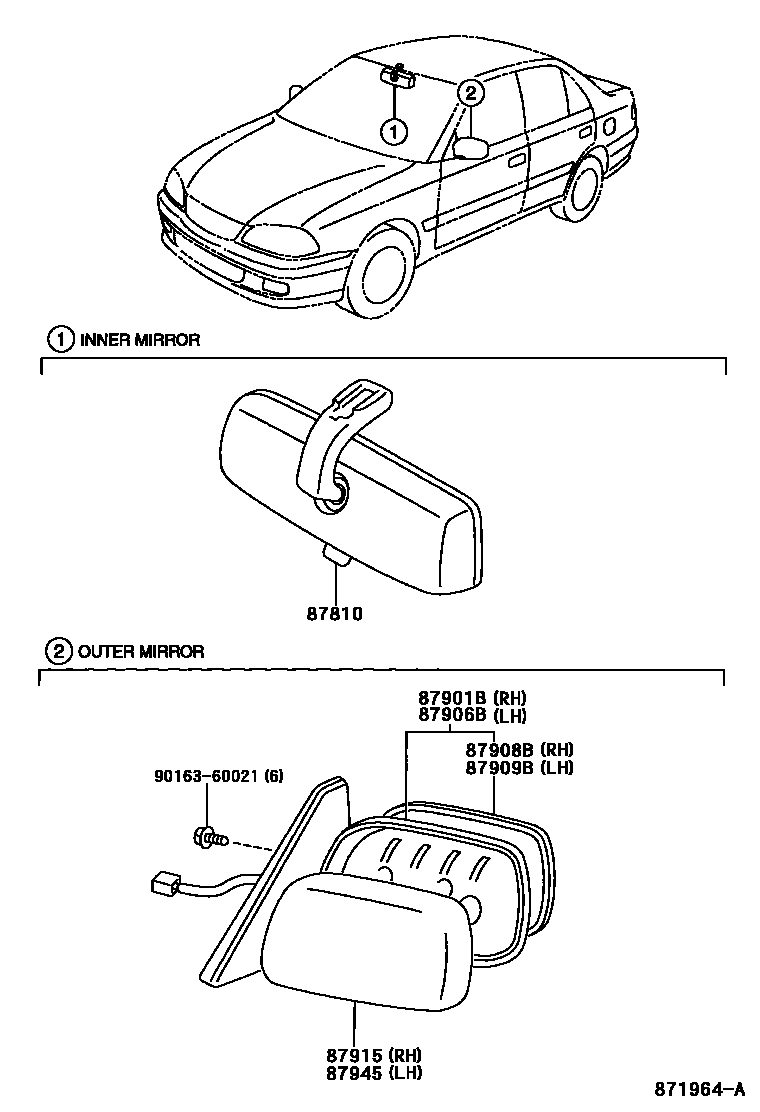

8 parts on this diagram · 1 diagram in section
MIRROR for Toyota CORONA
This section contains 8 genuine Toyota parts for the MIRROR system of the Toyota CORONA. Key components include: MIRROR ASSY, INNER REAR VIEW, MIRROR SUB-ASSY, OUTER REAR VIEW, RH, MIRROR SUB-ASSY, OUTER REAR VIEW, LH, MIRROR SUB-ASSY, RH, MIRROR SUB-ASSY, LH.
